Download CatalogPV22 Series Valves
| Item Code | Thread Size (inch) | Orifice Size (mm2) | Price (per pc) | Applicable Coil |
|---|---|---|---|---|
| PV2208 | 1/4" | 2.5 | 335 | 9PVCL |
9PVCL Coil
| Item Code | Coil Voltage | Price (per pc) |
|---|---|---|
| 9PVCL220 | 220V AC | 165 |
| 9PVCL24AC | 24V AC | 220 |
| 9PVCL24 | 24V DC | 180 |
2/2 Way Solenoid Valves (2V Series)
₹335.00 – ₹635.00
5/3 Way Double Solenoid Valves (4V Series)
₹1,110.00 – ₹1,550.00
2/2 Way Solenoid Valves (PV22 Series)
₹335.00 – ₹555.00
Phoenix-2/2 Way Solenoid Valves (PV22 Series)

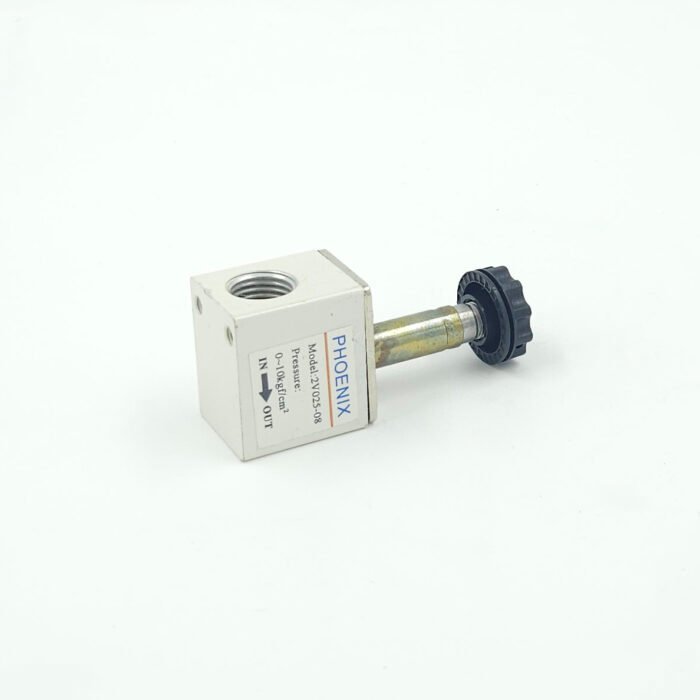

Phoenix 2/2 Way Solenoid Valves "PV22 Series" are designed for reliable control of fluid flow in various applications. These valves feature a compact design and are ideal for switching on/off in pneumatic and hydraulic systems, enhancing operational efficiency.
These solenoid valves are used for controlling fluid flow in pneumatic circuits, facilitating automated switching in process control, enabling precise operation in machinery, and supporting efficient performance in diverse industrial environments.
| Type | PV22 Series Valve |
| Material | Aluminium |
| Structure Type | 2 ports / 2 positions (2/2) |
| Applicable Fluid | Dry, Filtered, Compressed Air |
| Pressure Range | 0.15-0.8 MPa (1.5-8 bar) |
| Operation Type | Direct Action Type |
| Max. Action Frequency | 10 cycles / sec |
| Lubrication | Not Required |
| Working Temperature | -5-50°C |
Please select the item size (Qty – Pcs)
Description
Additional information
| Thread Size |
1/4" |
|---|---|
| Brand |
Phoenix |
| Coil |
220V AC ,24V AC ,24V DC ,Without Coil |
