Download Catalog| Item Code | Size | Type | Coil MOC | Orifice (mm2) | Price (AC220V) | Price (DC24V) | Price (AC110V) | Price (DC12V) |
|---|---|---|---|---|---|---|---|---|
| 2W08 | 1/4" | Normally Closed | Copper | 2.5 | 760 | 760 | 840 | 840 |
| 2W10 | 3/8" | Normally Closed | Copper | 4 | 1250 | 1250 | 1375 | 1375 |
| 2W15 | 1/2" | Normally Closed | Copper | 16 | 1450 | 1450 | 1600 | 1600 |
| 2W20 | 3/4" | Normally Closed | Copper | 20 | 1600 | 1600 | 1760 | 1760 |
| 2W25 | 1" | Normally Closed | Copper | 25 | 2200 | 2200 | 2420 | 2420 |
| 2W32 | 1-1/4" | Normally Closed | Copper | 35 | 3600 | 3600 | 3960 | 3960 |
| 2W40 | 1-1/2" | Normally Closed | Copper | 40 | 6200 | 6200 | 6820 | - |
| 2W50 | 2" | Normally Closed | Copper | 50 | 7050 | 7050 | 7755 | - |
| 2WA08 | 1/4" | Normally Closed | Aluminium | 2.5 | 610 | 610 | - | - |
| 2WA10 | 3/8" | Normally Closed | Aluminium | 4 | 1100 | 1100 | - | - |
| 2WA15 | 1/2" | Normally Closed | Aluminium | 16 | 1240 | 1240 | - | - |
| 2WA20 | 3/4" | Normally Closed | Aluminium | 20 | 1390 | 1390 | - | - |
| 2WA25 | 1" | Normally Closed | Aluminium | 25 | 1990 | 1990 | - | - |
| 2WNO08 | 1/4" | Normally Open | Copper | 2.5 | 1900 | 1900 | 2100 | 2100 |
| 2WNO15 | 1/2" | Normally Open | Copper | 16 | 3200 | 3200 | 3520 | 3520 |
Back to products
Diaphragm Valves with DIN Coil (2TBDIN Series)
₹1,040.00 – ₹2,995.00
2W Series Solenoid Valves
₹610.00 – ₹7,755.00

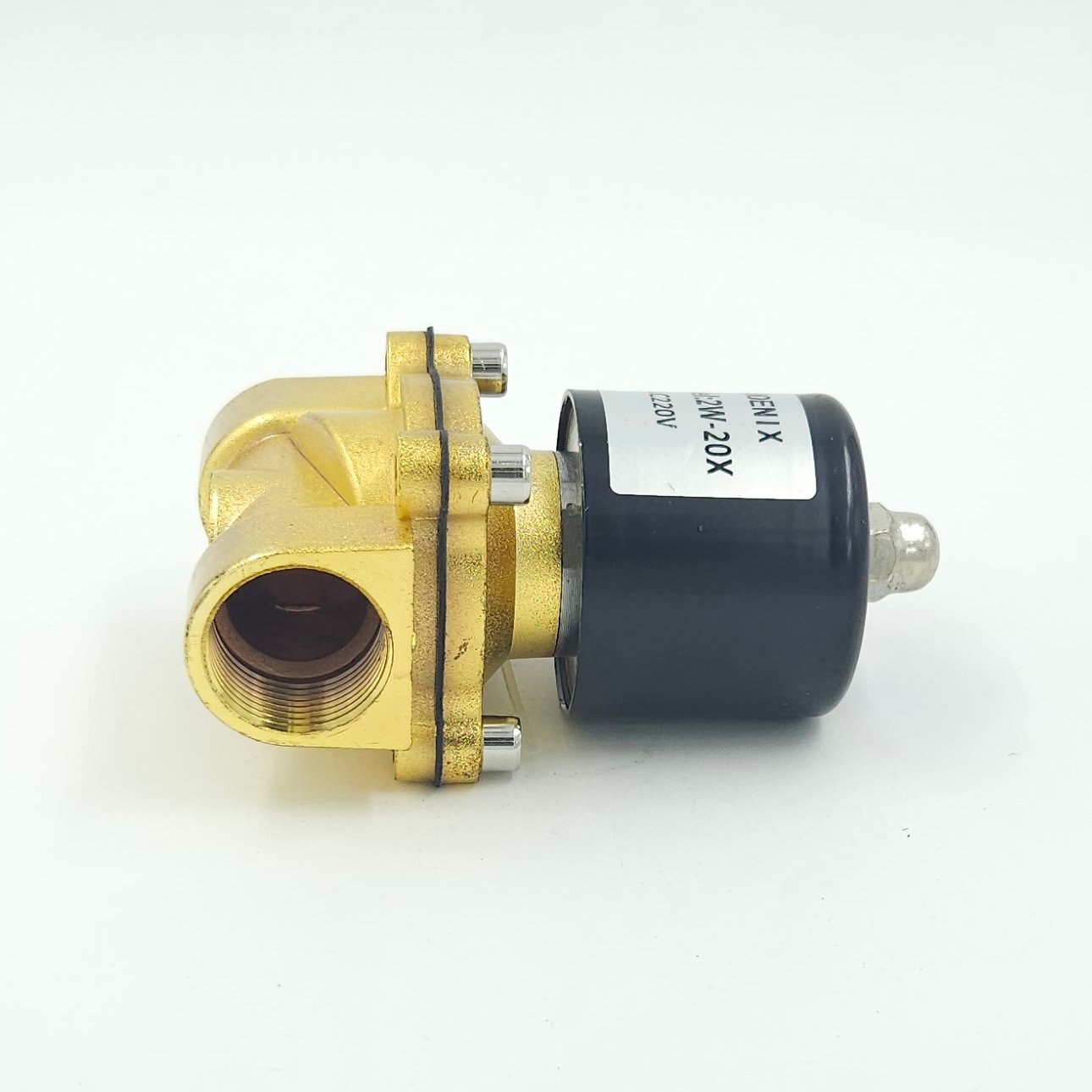

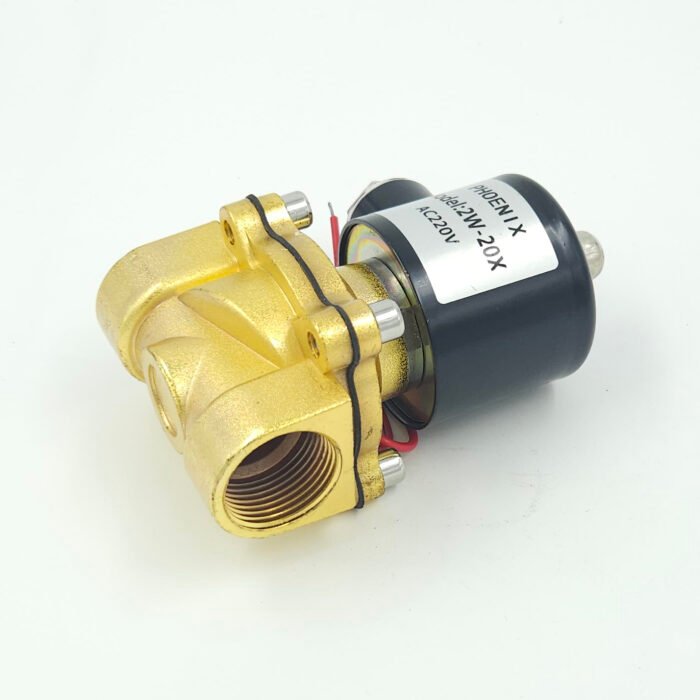

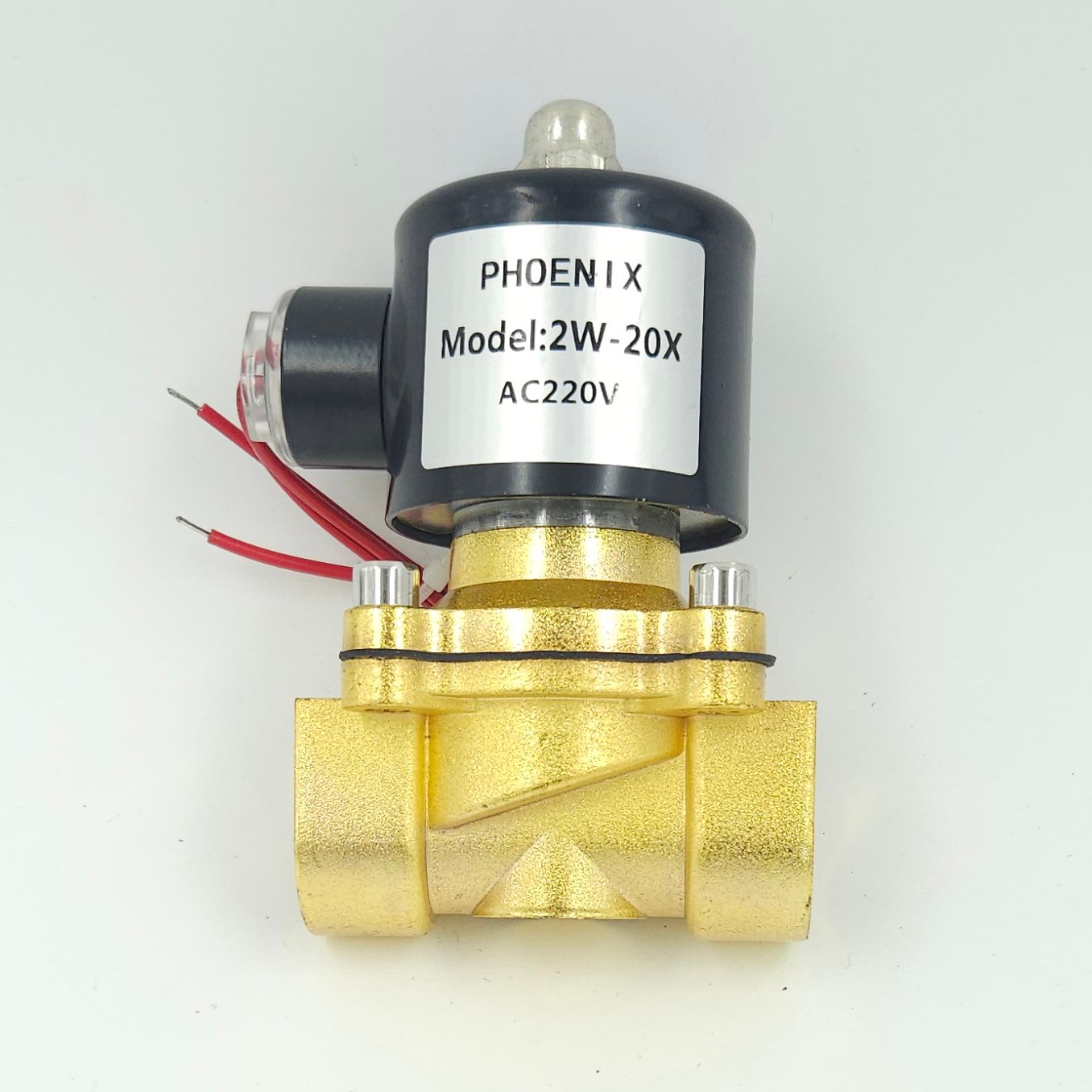

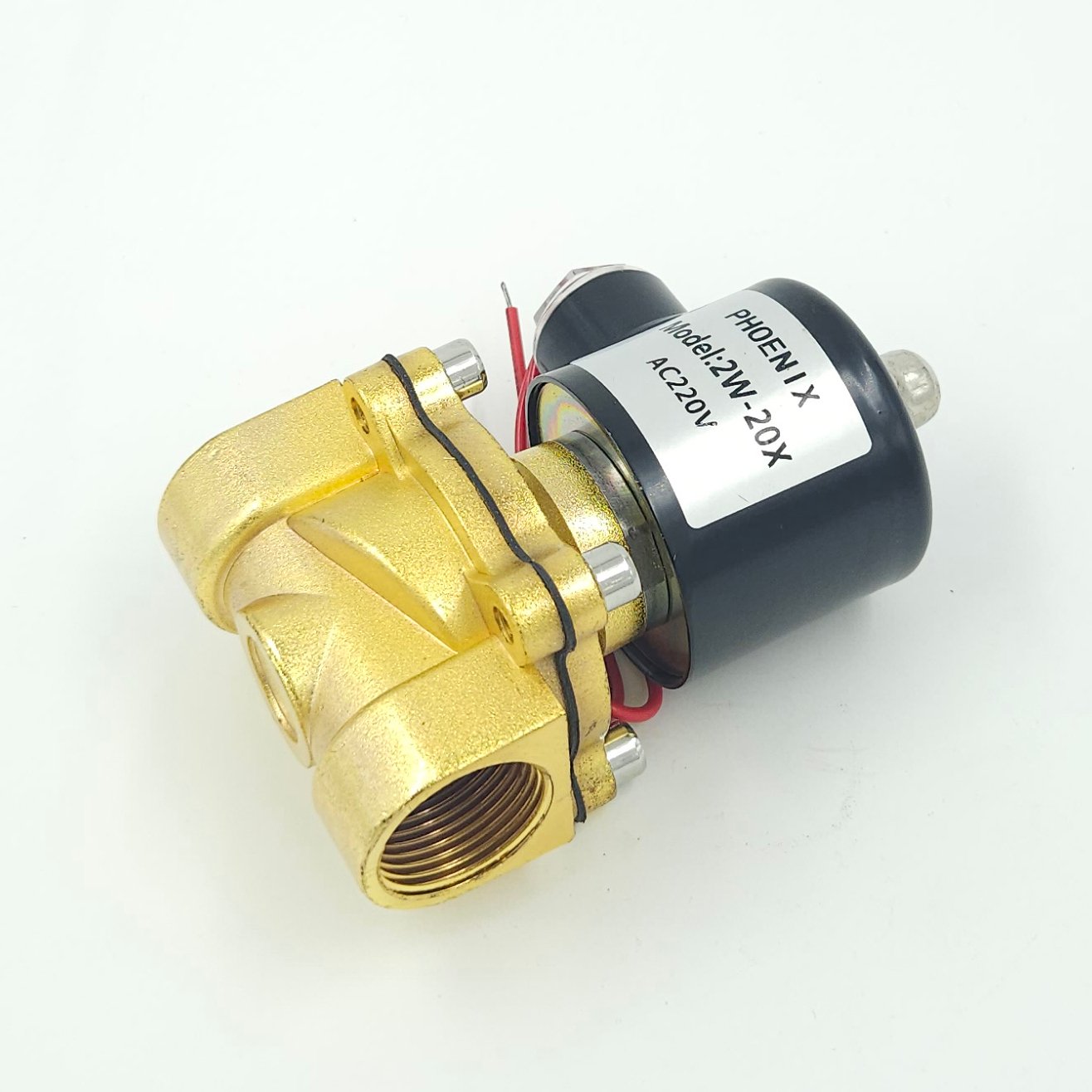

Phoenix-2W Series Solenoid Valves
Phoenix Diaphragm Type Solenoid Valves "2W Series" are designed for reliable control of fluid and air flow in various applications. Featuring a robust diaphragm mechanism, these valves provide quick response times and efficient operation, making them ideal for automated systems.
These solenoid valves are used for controlling fluid flow in pneumatic and hydraulic systems, enabling precise automation in machinery, facilitating quick switching in process control, and supporting reliable operation in diverse industrial environments.
| Type | 2W |
| Material | Brass / Aluminium |
| Coil Material | Copper / Aluminium |
| Working Pressure Range | 0-0.7 Mpa (0-7 bar) |
| Max. Pressure Resistance | 1.0 Mpa (10 bar) |
| Working Temperature | -5-80°C |
| Applicable Medium | Air |
Please select the item size (Qty – Pcs)
Description
Additional information
| Size |
1/4" ,3/8" ,1/2" ,3/4" ,1" ,1-1/4" ,1-1/2" ,2" |
|---|---|
| Type |
Normally Open ,Normally Closed |
| Coil Material (MOC) |
Copper ,Aluminium |
| Coil Voltage |
220VAC ,24VDC ,110VAC ,12VDC |
| Brand |
Phoenix |
