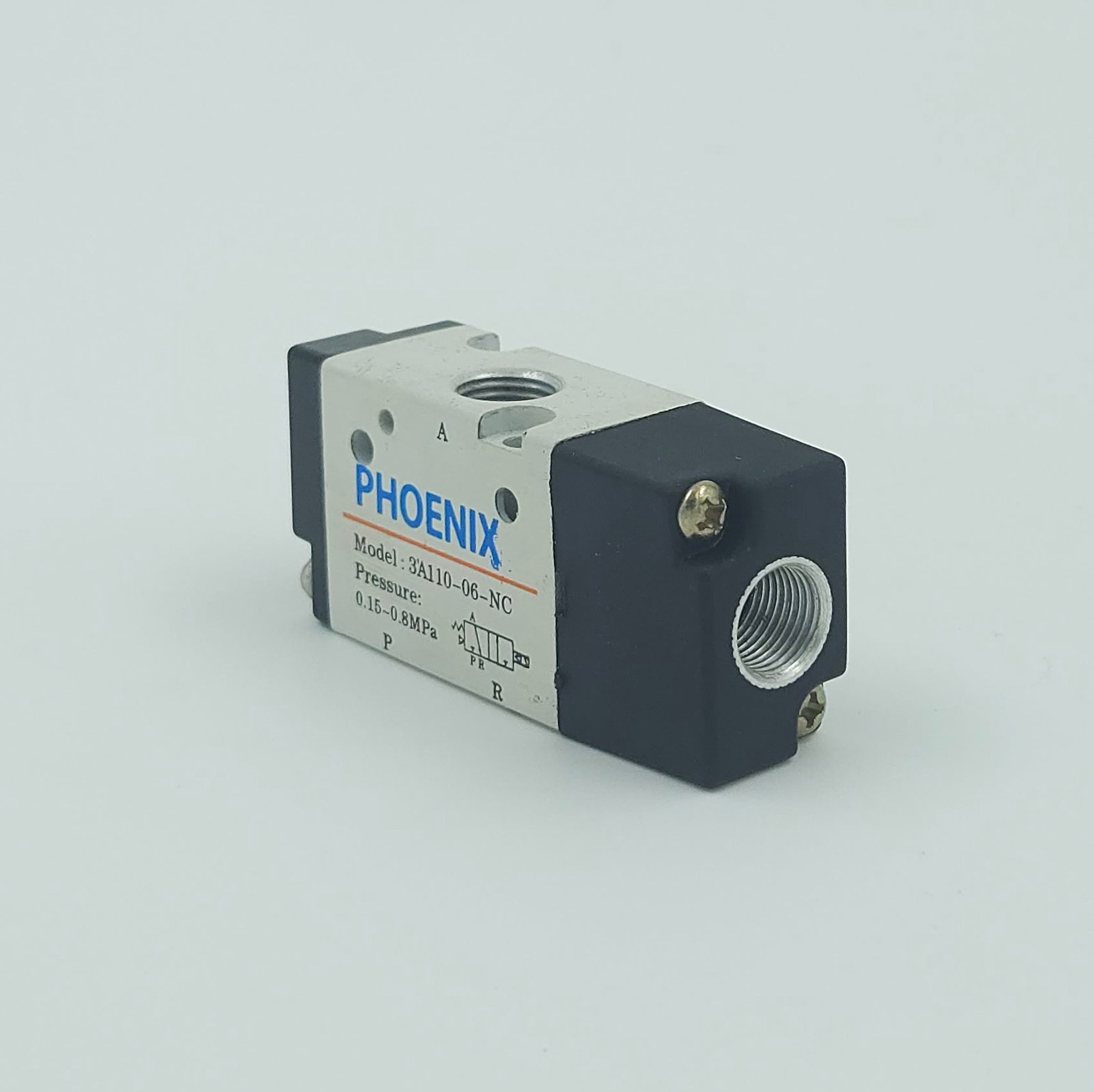

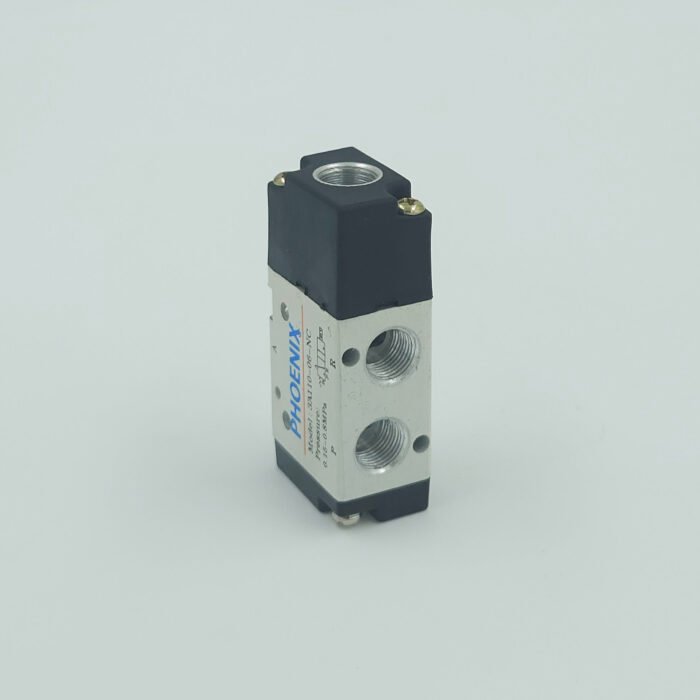

3/2 Way Single Pilot Valves (PV32SA Series)

Phoenix 3/2 Way Single Pilot Valves "PV32SA Series" are designed for efficient fluid control in pneumatic systems. These valves utilize a single pilot design, providing reliable switching between flow paths and ensuring enhanced operational efficiency.

These single pilot valves are used for controlling airflow in pneumatic circuits, facilitating automated operations in machinery, enabling precise actuation of devices, and supporting efficient performance in diverse industrial applications.

Type	PV32SA Series Valves
Material	Aluminium
Structure Type	3 ports / 2 positions (3/2)
Pilot Type	Single
Applicable Fluid	Dry, Filtered, Compressed Air
Pressure Range	0.15-0.8 MPa (1.5-8 bar)
Operation Type	External Pilot
Max. Action Frequency	5 cycles / sec
Lubrication	Not Required
Working Temperature	-5-50°C
