Download Catalog| Item Code | Thread Size (inch) | Type | Price (per pc) |
|---|---|---|---|

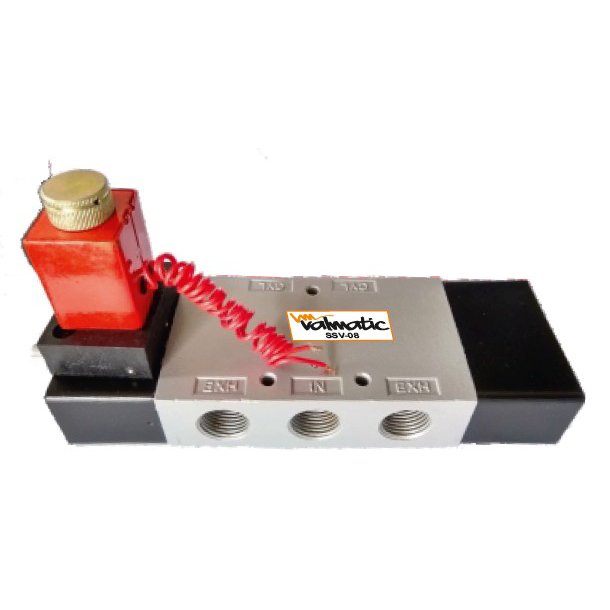

| SSV08 | 1/4" | Single Solenoid | 1750 |
| SSV15 | 1/2" | Single Solenoid | 2625 |

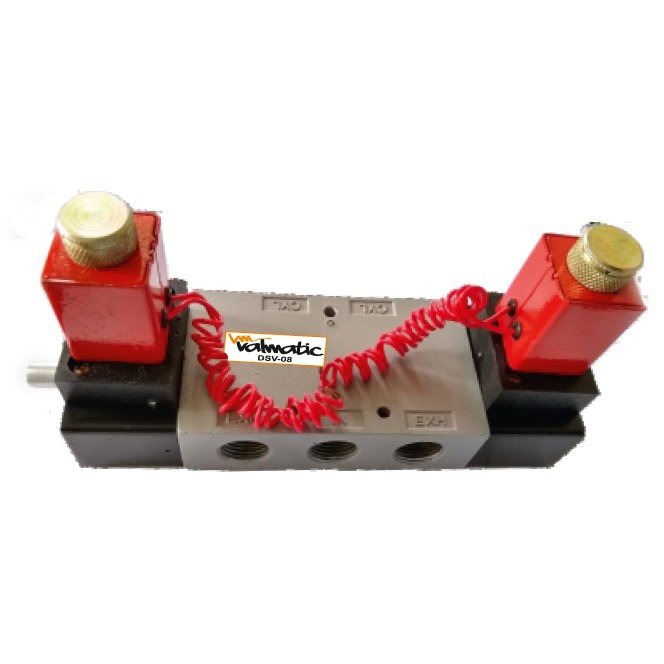

| DSV08 | 1/4" | Double Solenoid | 2625 |
| DSV15 | 1/2" | Double Solenoid | 3325 |
Low Watt Coil Solenoid Valves (VGS Series)
₹1,350.00 – ₹1,920.00
5/2 Way Single & Double Solenoid Valves (SY Series)
₹2,200.00 – ₹4,400.00
5/2 Way Mercury Type Single & Double Solenoid Valves (SV Series)
₹1,750.00 – ₹3,325.00
Valmatic 5/2 Way Mercury Type Single & Double Solenoid Valves (SV Series)
Valmatic Mercury Type 5/2 Way Single and Double Solenoid Valves "SV Series" are designed for efficient control of fluid flow in pneumatic systems. These valves are compatible with pneumatic configurations, providing versatility and reliability in various applications.
These solenoid valves are used for controlling double-acting cylinders, facilitating automation in pneumatic systems, enabling quick switching between multiple flow paths, and supporting efficient operation in diverse industrial settings.
| Type | SV Series Valves |
| Material | Aluminium |
| Structure Type | 5 ports / 2 positions (5/2) |
| Solenoid | Single / Double |
| Applicable Fluid | Dry, Filtered, Compressed Air |
| Pressure Range | 0.1-0.8 MPa (1.0-8 bar) |
| Operation Type | Internal Pilot |
| Max. Action Frequency | 5 cycles / sec |
| Lubrication | Not Required |
| Working Temperature | -5-50°C |
Please select the item size (Qty – Pcs)
Description
Additional information
| Thread Size |
1/4" ,1/2" |
|---|---|
| Brand |
Valmatic |
| Solenoid |
Single Solenoid ,Double Solenoid |
