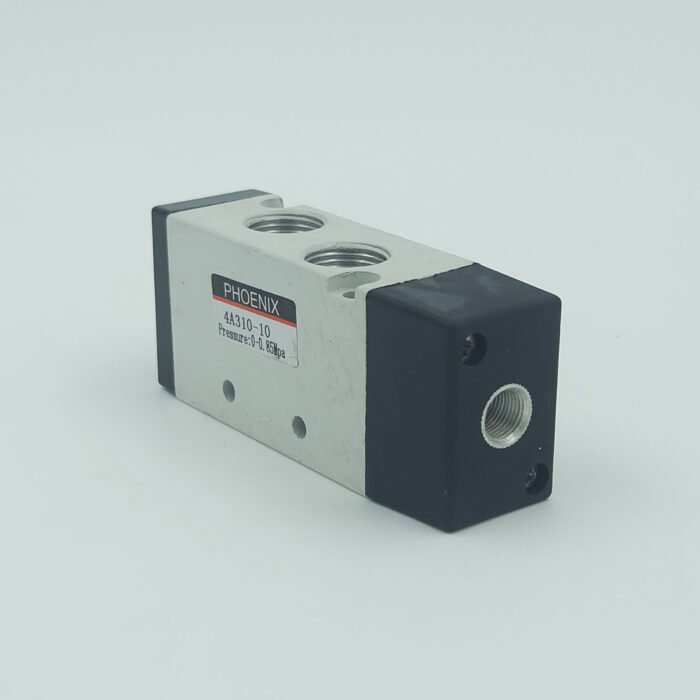

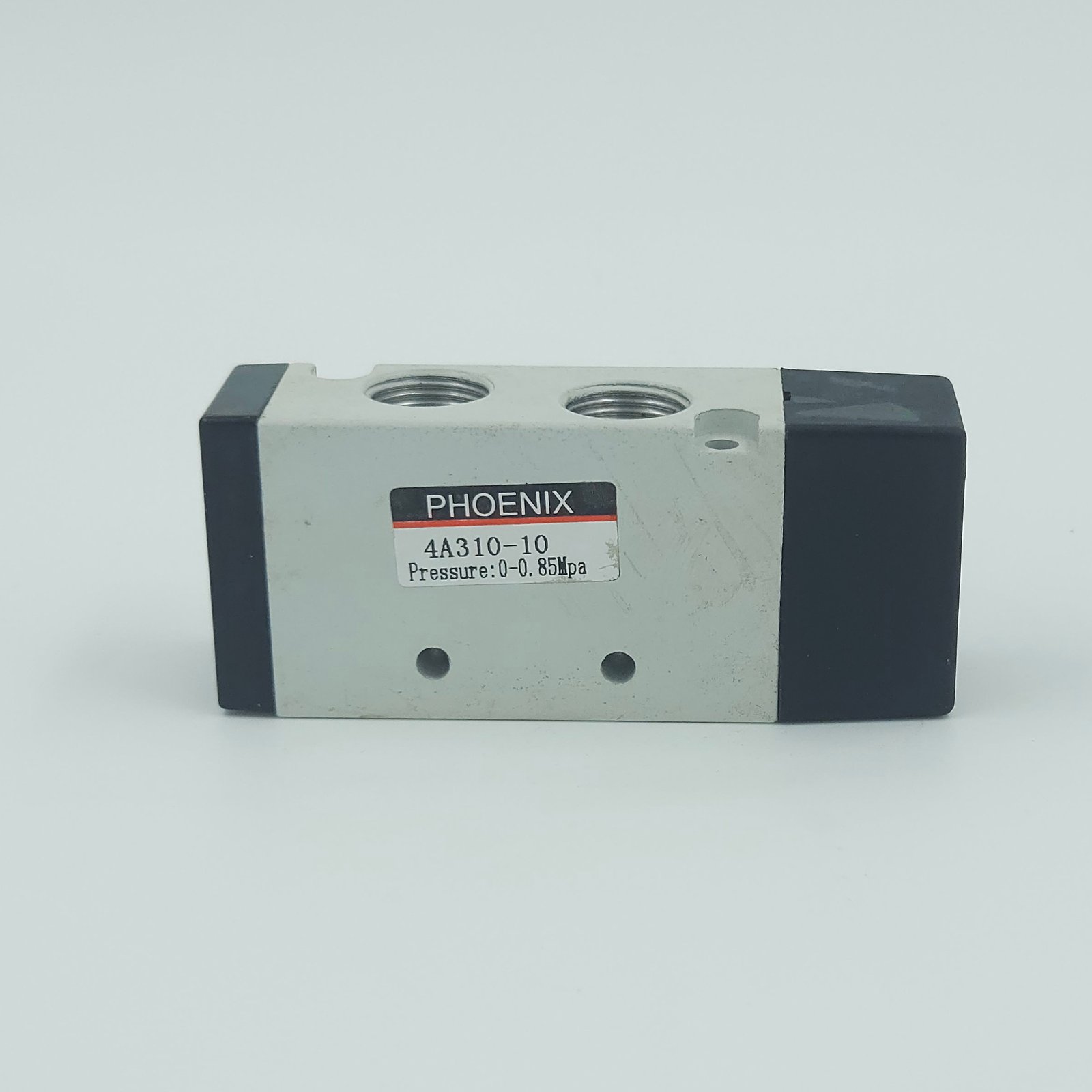

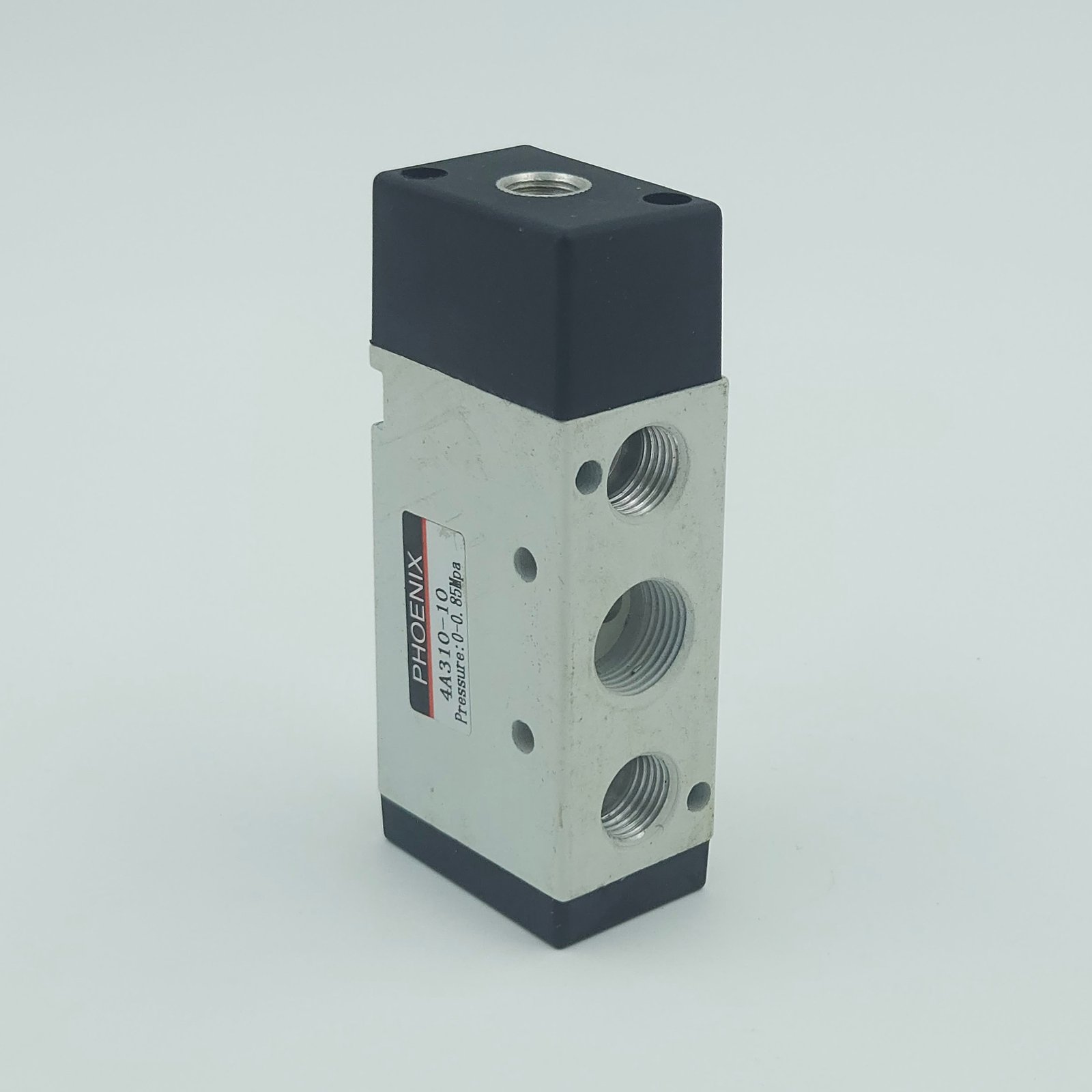

5/2 Way Single and Double Pilot Valves (4A Series)

Phoenix 5/2 Way Single and Double Pilot Valves "4A Series" are designed for versatile fluid control in pneumatic systems. These valves provide efficient switching between multiple flow paths, suitable for both single and double-acting cylinders.

These pilot valves are used for managing fluid flow in pneumatic actuators, facilitating automation in process control, enabling precise actuation of machinery, and supporting efficient operation in various industrial applications.

Type	4A Series Valves
Material	Aluminium
Structure Type	5 ports / 2 positions (5/2)
Pilot Type	Single / Double
Applicable Fluid	Dry, Filtered, Compressed Air
Pressure Range	0.15-0.8 MPa (1.5-8 bar)
Operation Type	External Pilot
Max. Action Frequency	5 cycles / sec
Lubrication	Not Required
Working Temperature	-5-50°C
