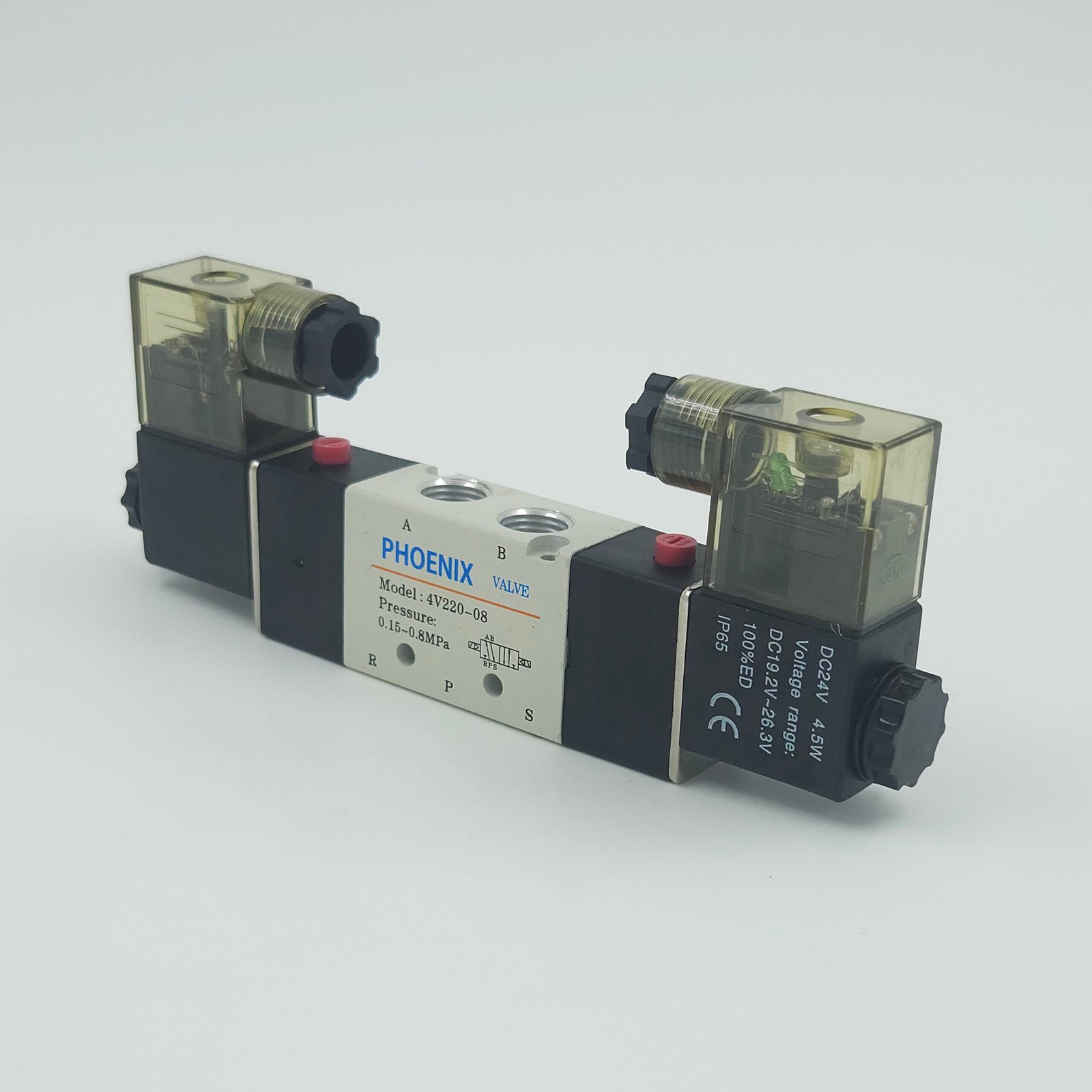

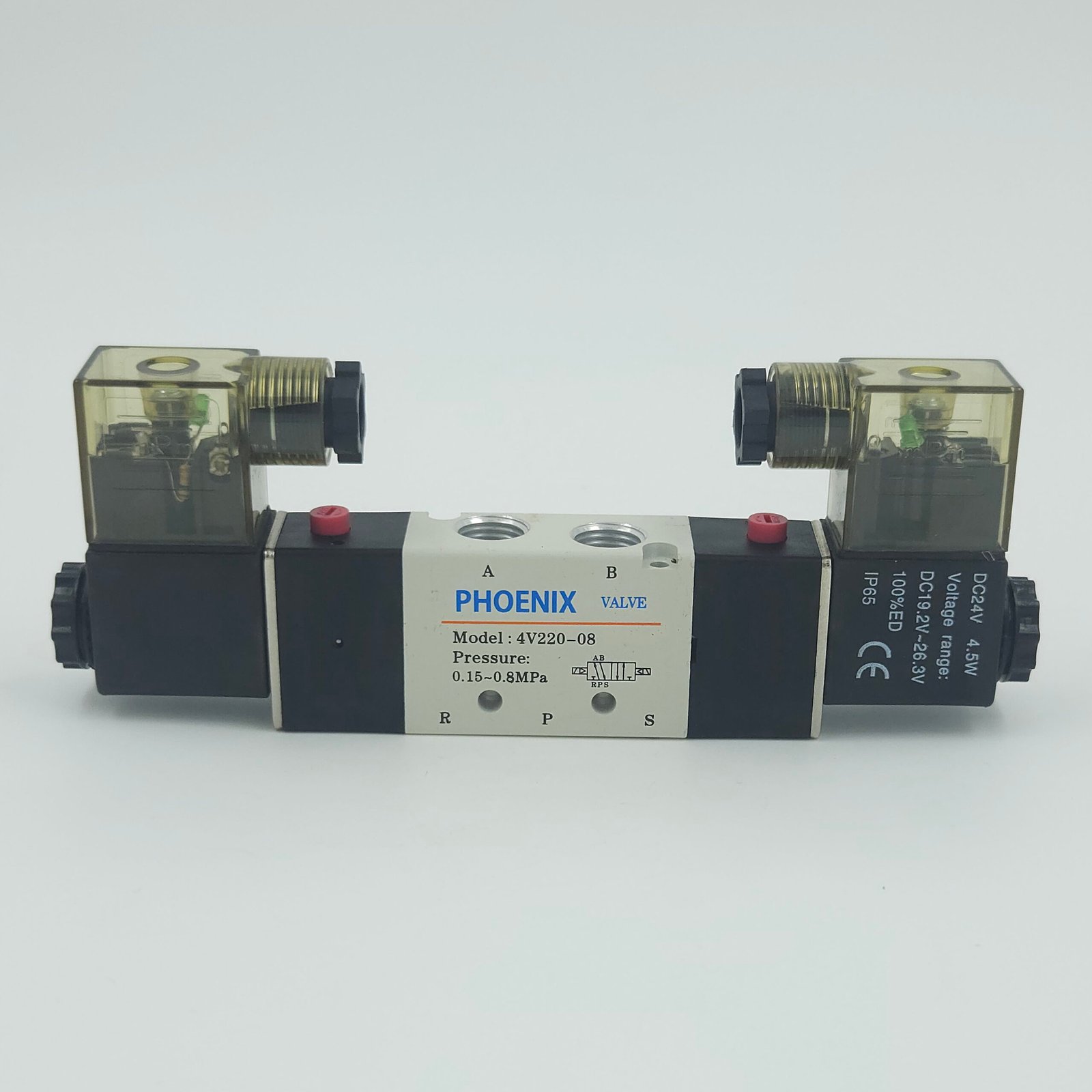

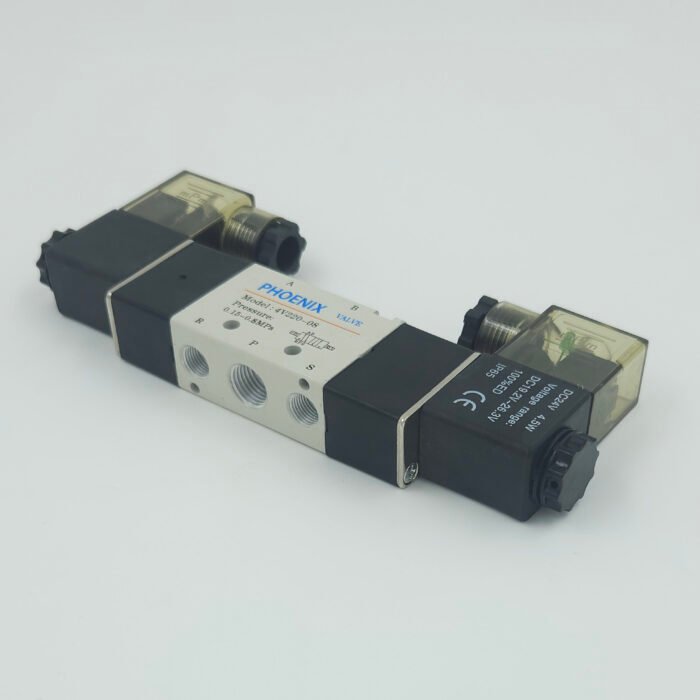

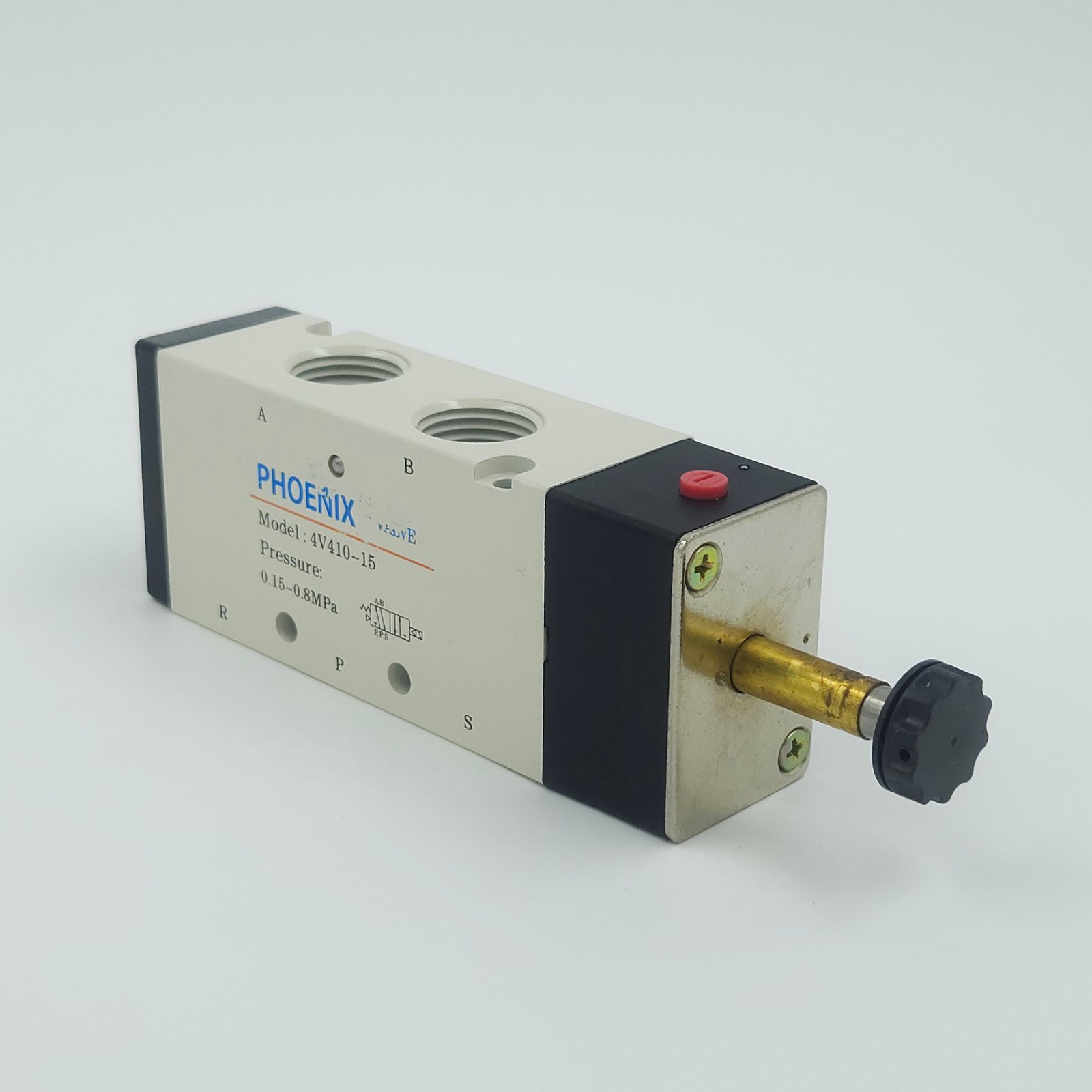

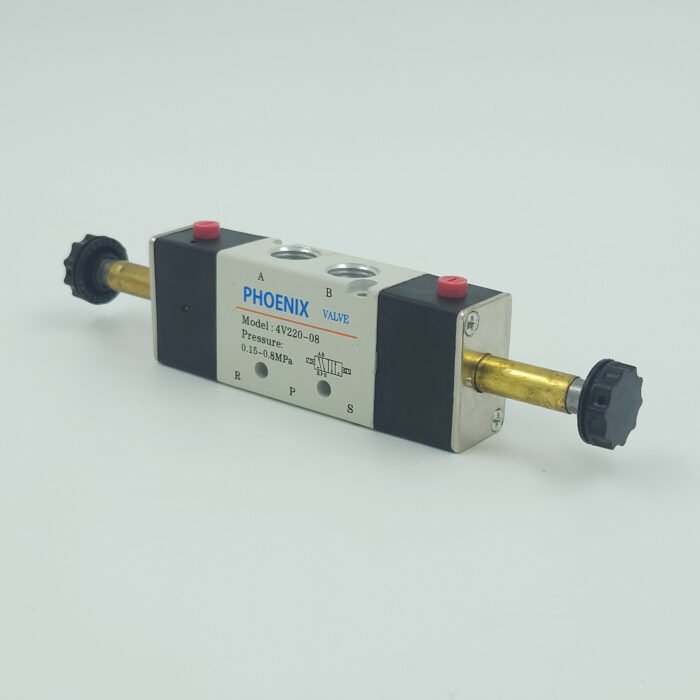

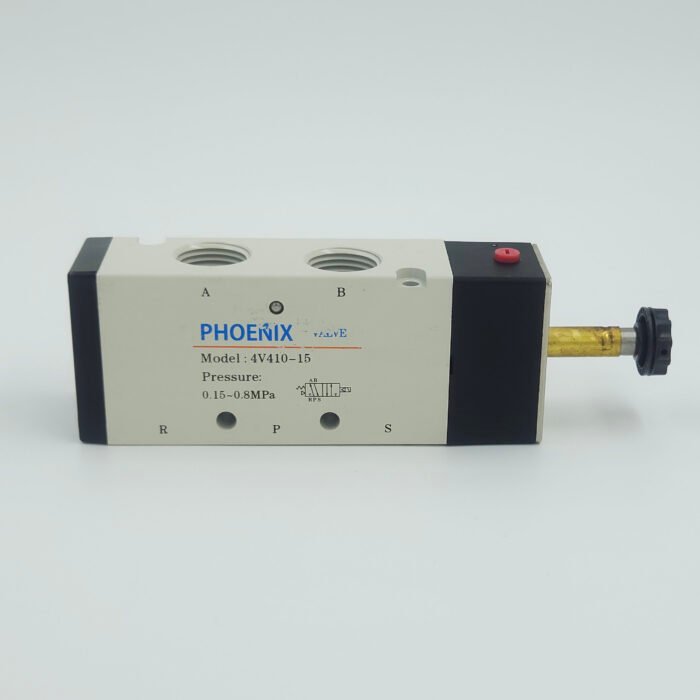

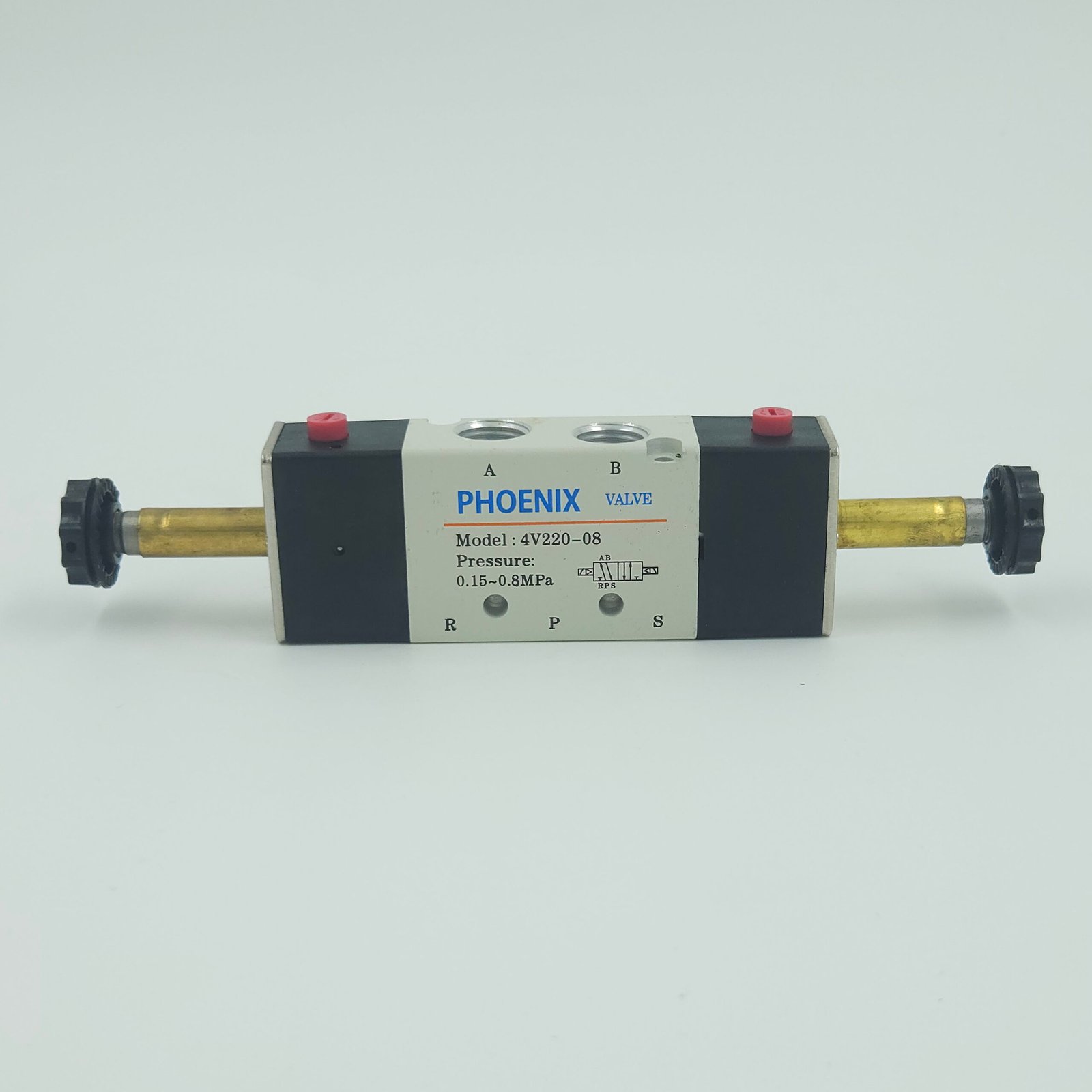

5/2 Way Single and Double Solenoid Valves (4V Series)

Phoenix 5/2 Way Single and Double Solenoid Valves "4V Series" are designed for comprehensive control of fluid flow in pneumatic systems. These versatile valves can handle both single and double-acting cylinders, ensuring efficient operation in various applications.

These solenoid valves are used for controlling double-acting cylinders, facilitating switching between multiple flow paths, enabling automation in process control, and supporting efficient operation in diverse industrial environments.

Type	4V Series Valves
Material	Aluminium
Structure Type	5 ports / 2 positions (5/2)
Solenoid	Single / Double
Applicable Fluid	Dry, Filtered, Compressed Air
Pressure Range	0.15-0.8 MPa (1.5-8 bar)
Operation Type	Internal Pilot
Max. Action Frequency	5 cycles / sec
Lubrication	Not Required
Working Temperature	-5-50°C
