Download Catalog| Item Code | Thread Size (inch) | Type | Coil Voltage | Price (per pc) |
|---|---|---|---|---|
| SY3120-4LZD-M5 | M5 | Single Solenoid | 230V AC | 2200 |
| SY3120-5LZD-M5 | M5 | Single Solenoid | 24V DC | 2200 |
| SY5120-4LZD-01 | 1/8" | Single Solenoid | 230V AC | 2200 |
| SY5120-5LZD-01 | 1/8" | Single Solenoid | 24V DC | 2200 |
| SY7120-4LZD-01 | 1/4" | Single Solenoid | 230V AC | 2900 |
| SY7120-5LZD-02 | 1/4" | Single Solenoid | 24V DC | 2900 |
| SY5220-4LZD-01 | 1/8" | Double Solenoid | 230V AC | 3800 |
| SY5220-5LZD-02 | 1/8" | Double Solenoid | 24V DC | 3800 |
| SY7220-4LZD-01 | 1/4" | Double Solenoid | 230V AC | 4400 |
| SY7220-5LZD-02 | 1/4" | Double Solenoid | 24V DC | 4400 |
5/2 Way Mercury Type Single & Double Solenoid Valves (SV Series)
₹1,750.00 – ₹3,325.00
5/2 Way Festo Type Single Solenoid Valves (MFH Series)
₹3,500.00 – ₹3,850.00
5/2 Way Single & Double Solenoid Valves (SY Series)
₹2,200.00 – ₹4,400.00

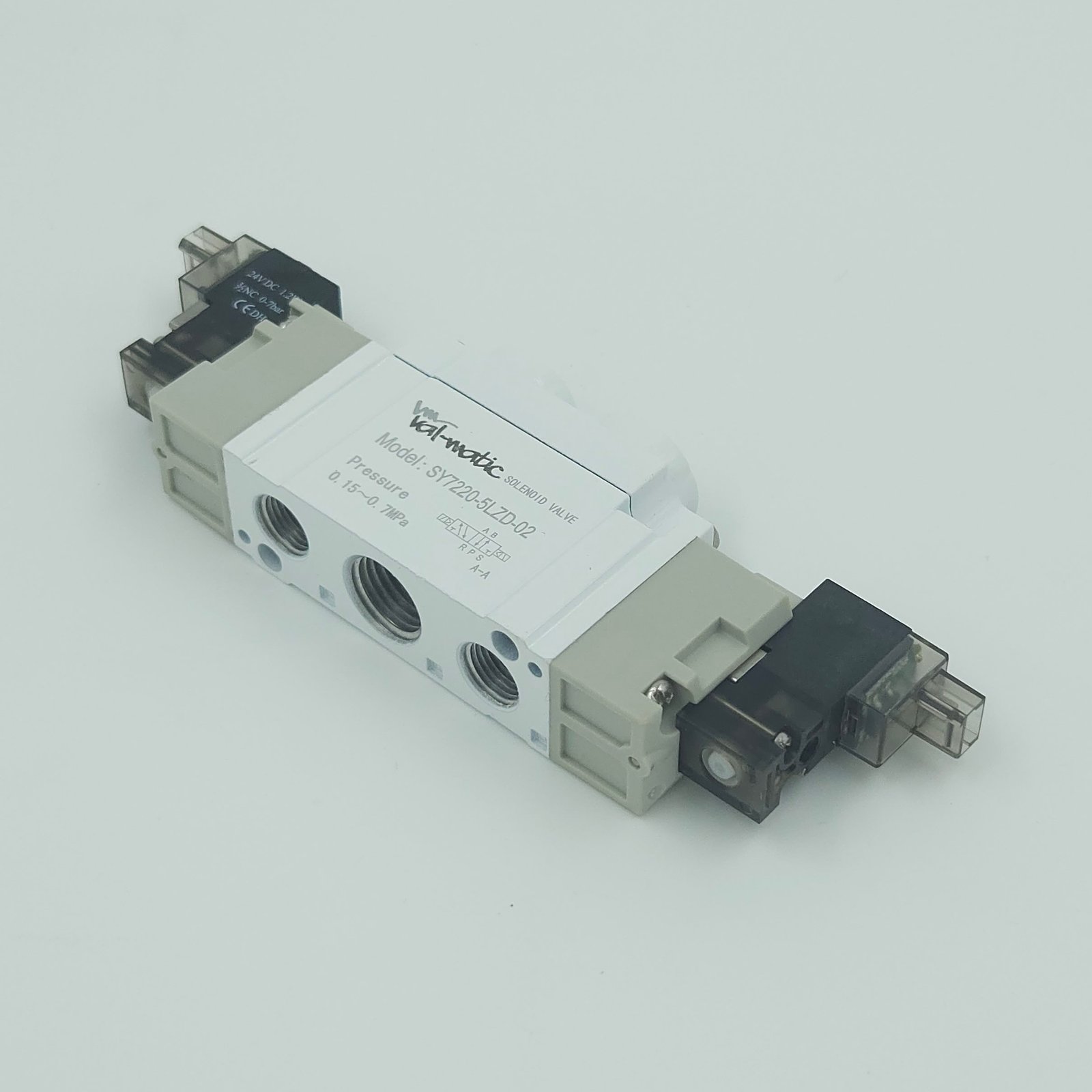

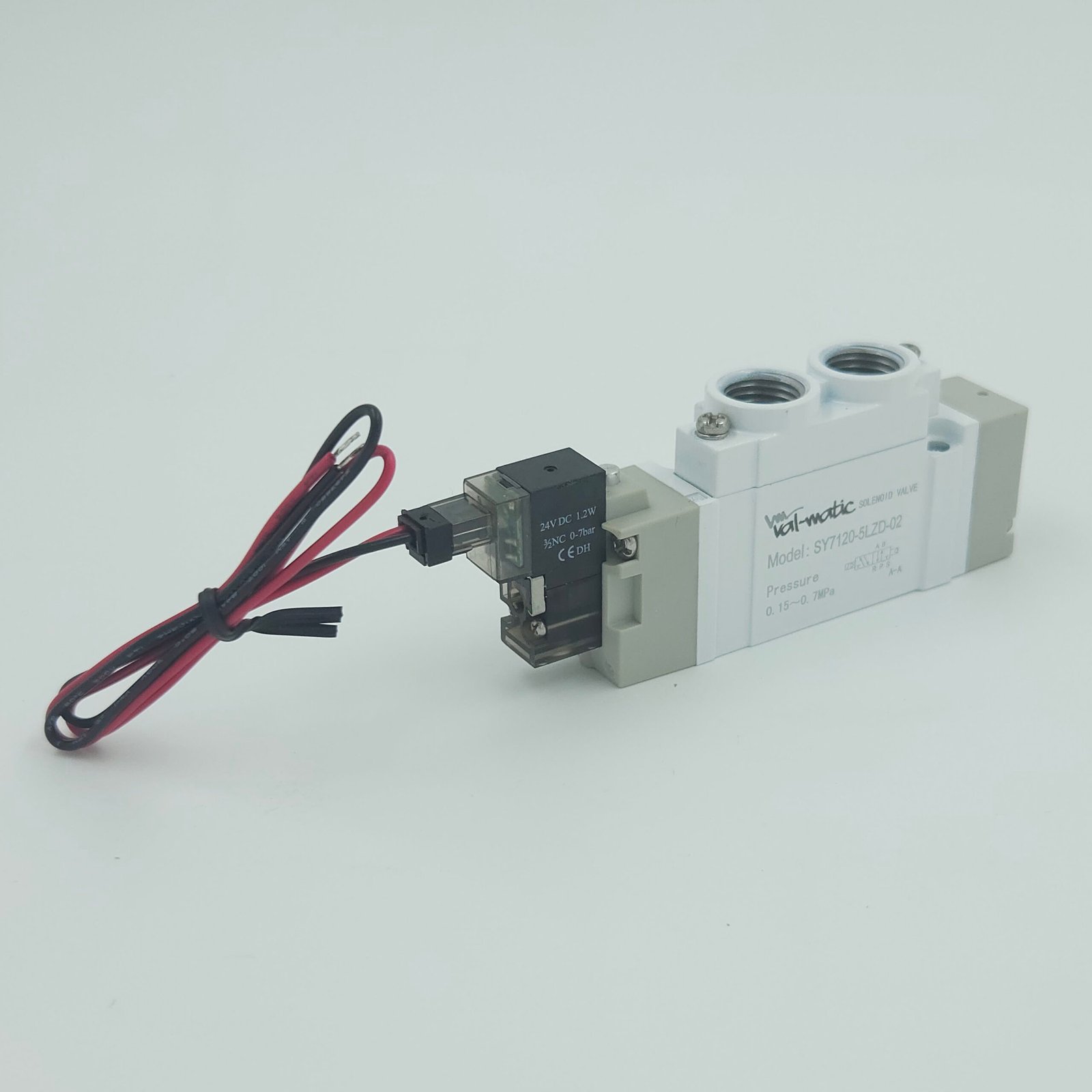

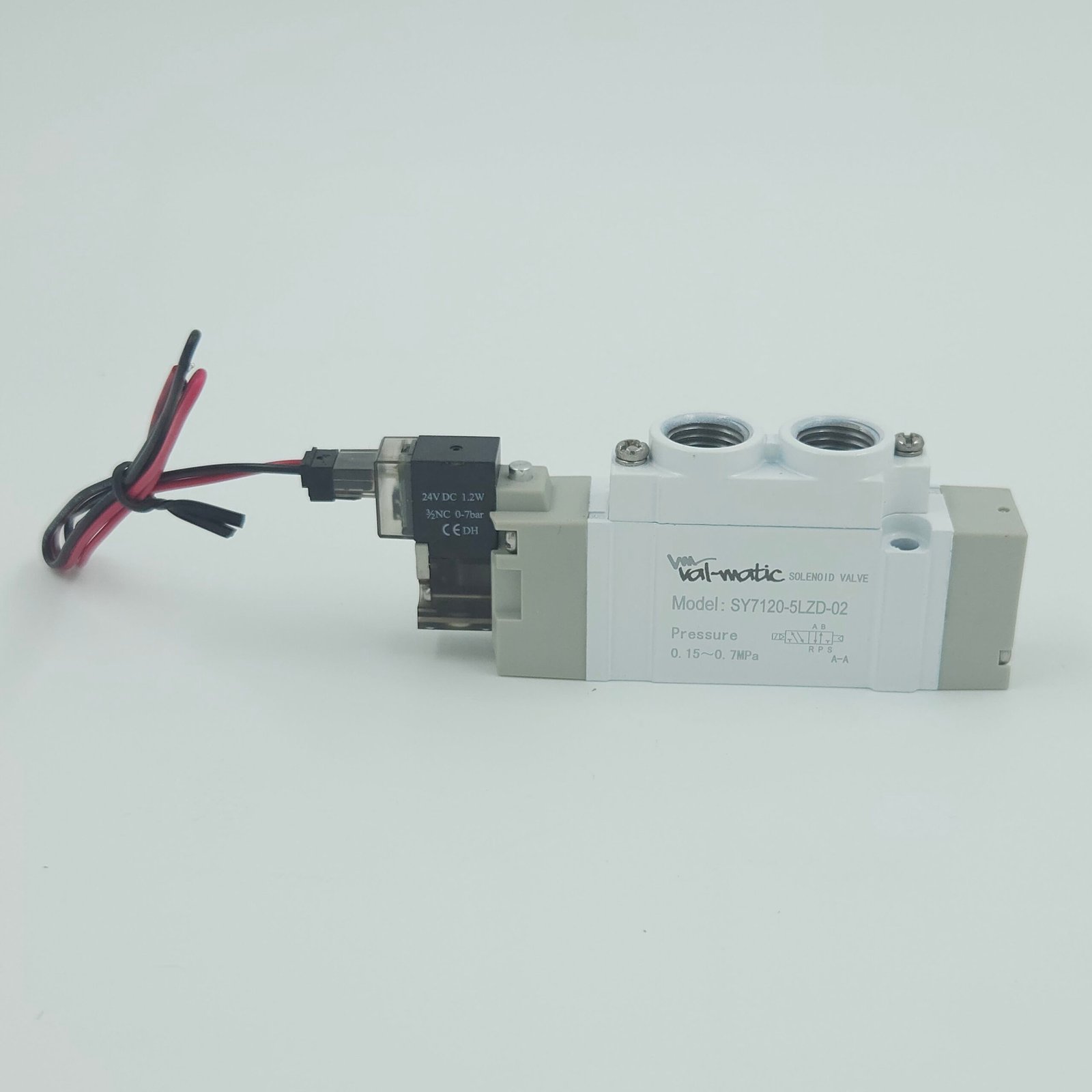

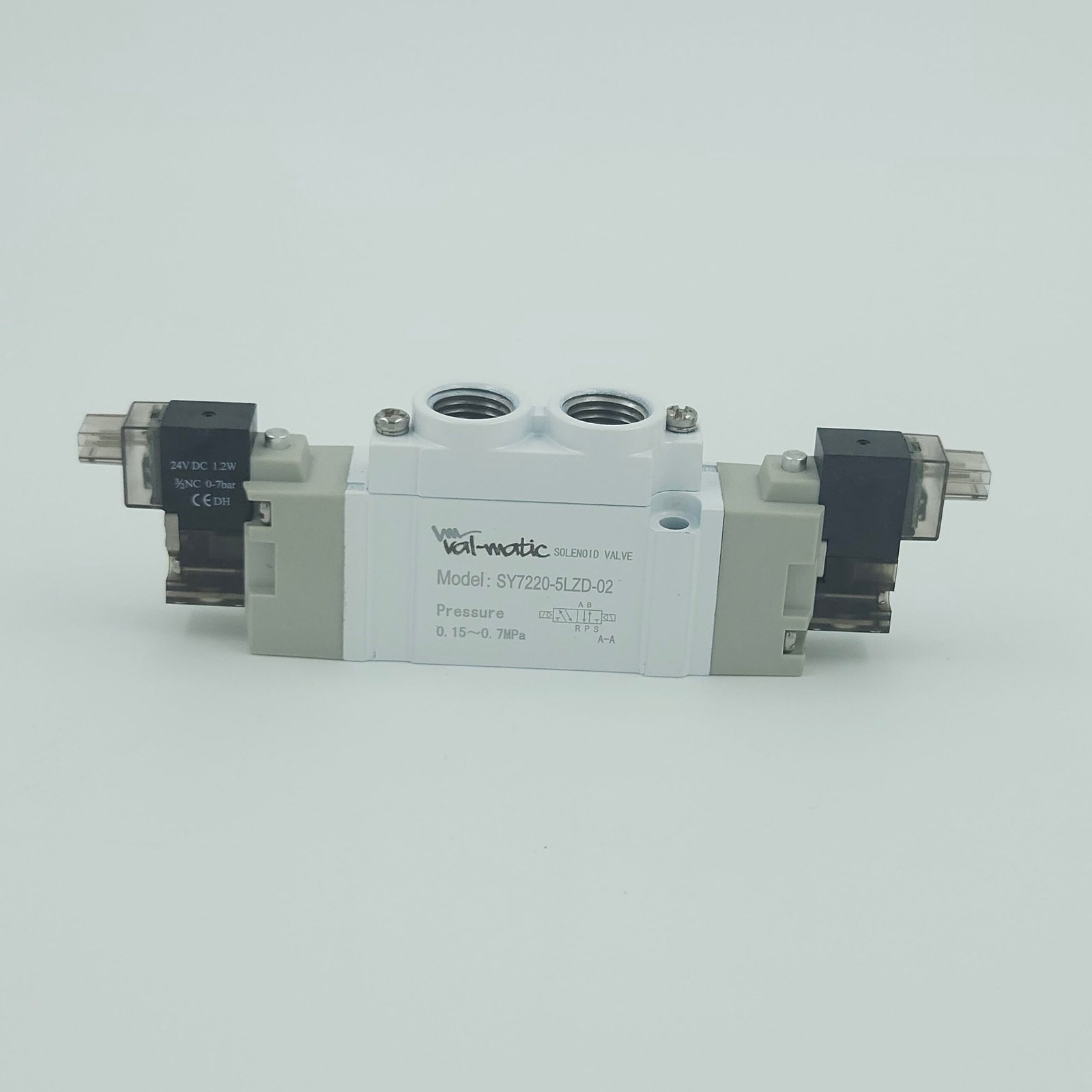

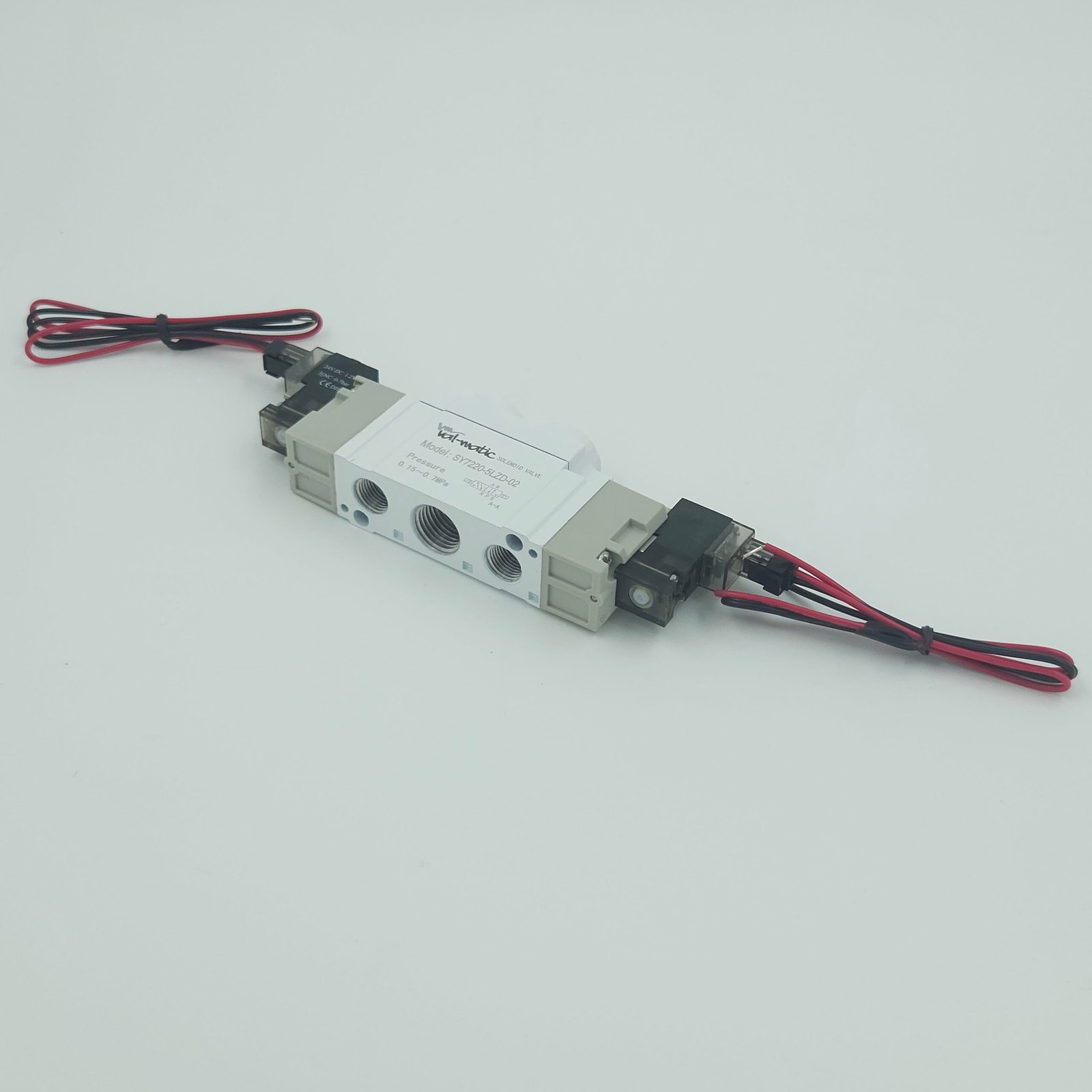

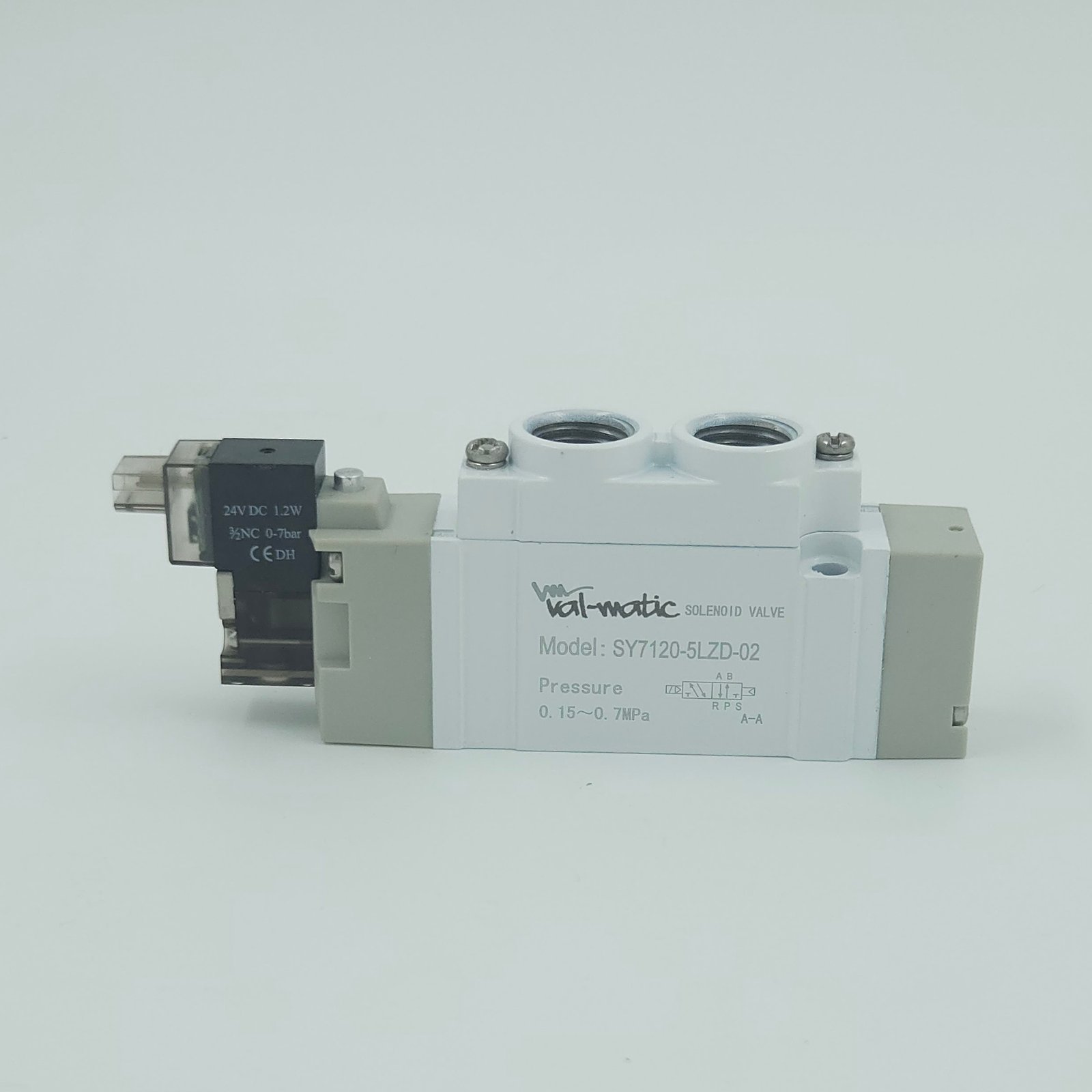

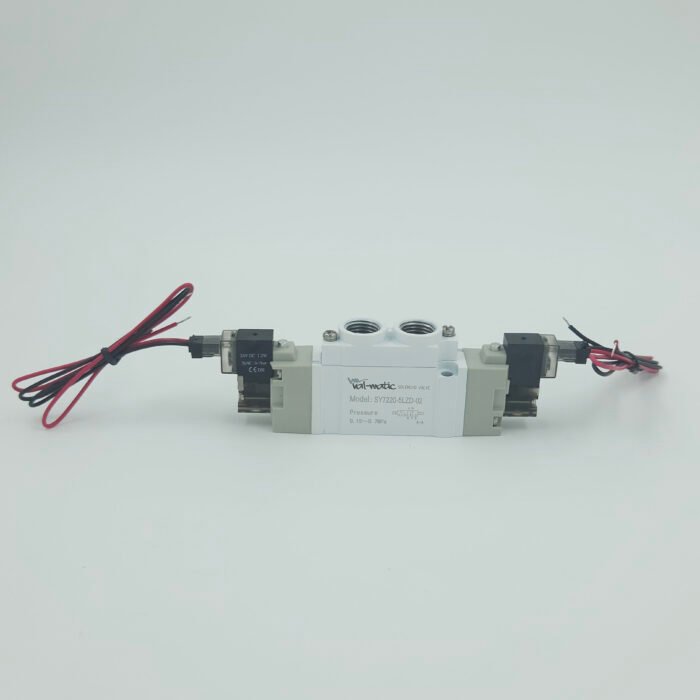

Phoenix-5/2 Way SMC Type Single & Double Solenoid Valves (SY Series)
Valmatic 5/2 Way Single and Double Solenoid Valves "SY Series" are designed for efficient control of fluid flow in pneumatic systems. These valves are compatible with pneumatic configurations, providing versatility and reliability in various applications.
These solenoid valves are used for controlling double-acting cylinders, facilitating automation in pneumatic systems, enabling quick switching between multiple flow paths, and supporting efficient operation in diverse industrial settings.
| Type | SY Series Valves |
| Material | Aluminium |
| Structure Type | 5 ports / 2 positions (5/2) |
| Solenoid | Single / Double |
| Applicable Fluid | Dry, Filtered, Compressed Air |
| Pressure Range | 0.1-0.8 MPa (1.0-8 bar) |
| Operation Type | Internal Pilot |
| Max. Action Frequency | 50 cycles / sec |
| Lubrication | Not Required |
| Working Temperature | -5-50°C |
Please select the item size (Qty – Pcs)
Description
Additional information
| Thread Size |
M5 ,1/8" ,1/4" |
|---|---|
| Brand |
Valmatic |
| Solenoid |
Single Solenoid ,Double Solenoid |
| Coil Voltage |
230V AC ,24V DC |
