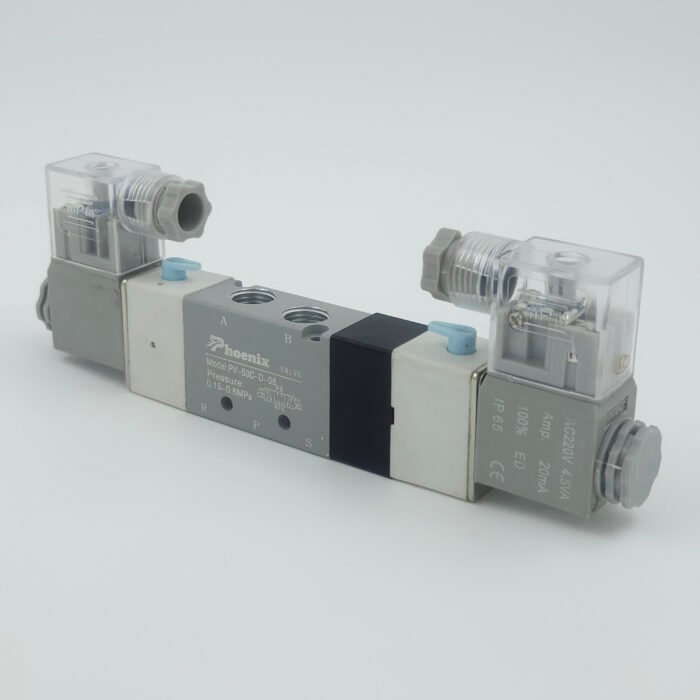

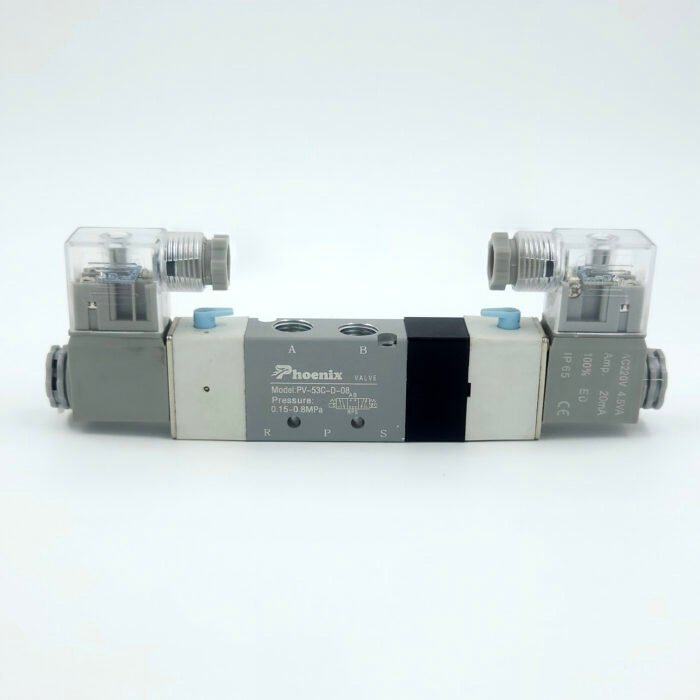

5/3 Way Double Solenoid Valves (PV53 Series)

Phoenix 5/3 Way Double Solenoid Valve "PV53 Series" is designed for complex control of fluid flow in pneumatic systems. This valve allows for multiple flow paths, making it ideal for applications requiring versatile actuator control and enhanced operational efficiency.

This double solenoid valve is used for managing fluid flow in double-acting cylinders, facilitating advanced automation in process control, enabling simultaneous control of multiple actuators, and supporting efficient operation in diverse industrial settings.

Type	PV53 Series Valves
Material	Aluminium
Structure Type	5 ports / 3 positions (5/3)
Type	Closed Center
Solenoid	Double
Applicable Fluid	Dry, Filtered, Compressed Air
Pressure Range	0.15-0.8 MPa (1.5-8 bar)
Operation Type	Internal Pilot
Max. Action Frequency	5 cycles / sec
Lubrication	Not Required
Working Temperature	-5-50°C
