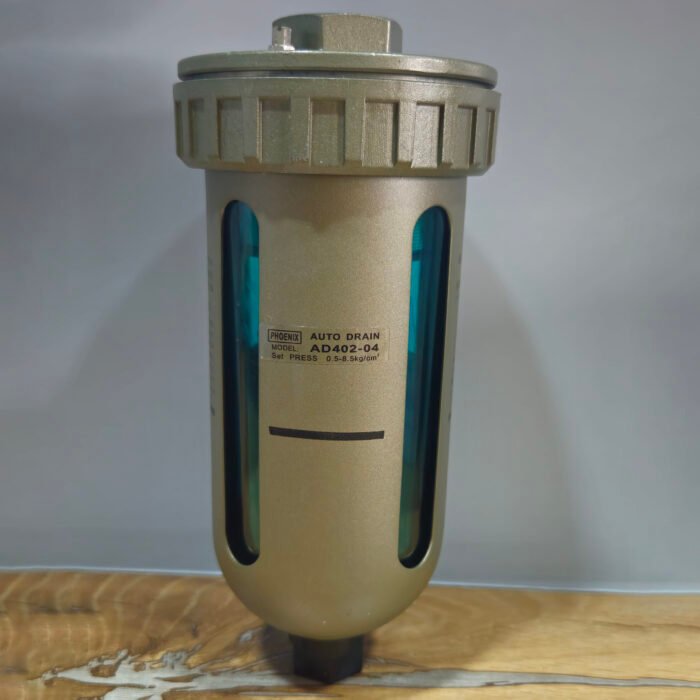

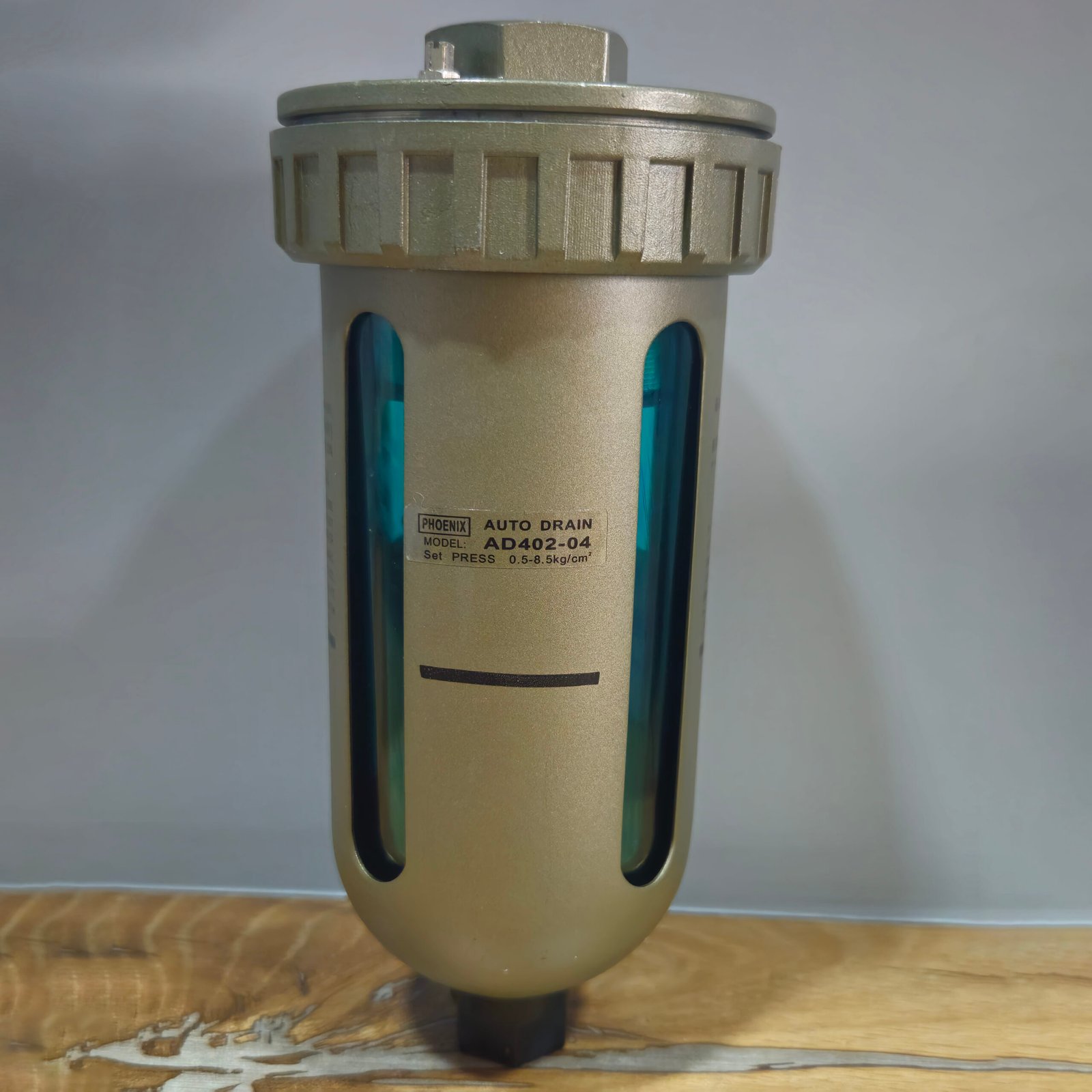

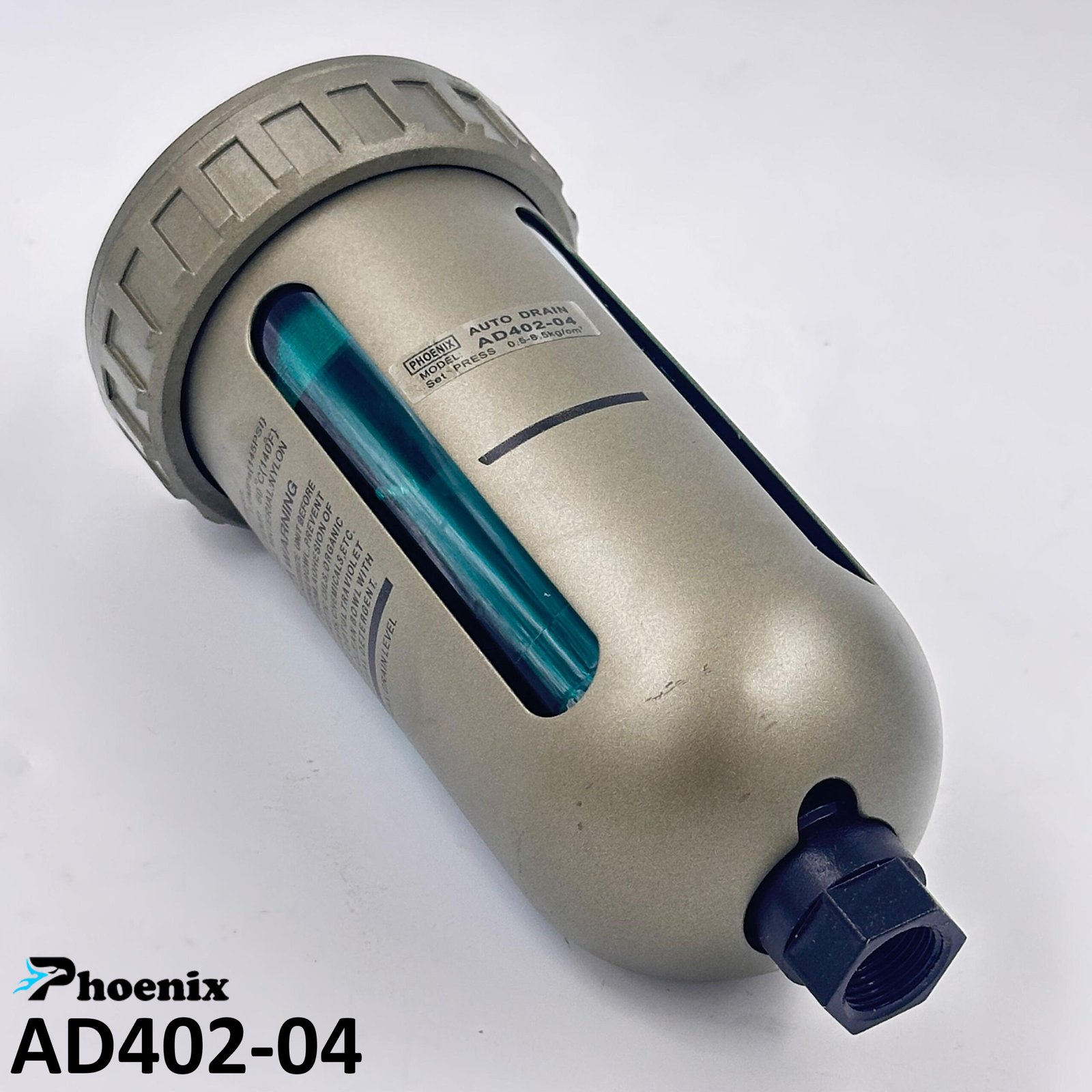

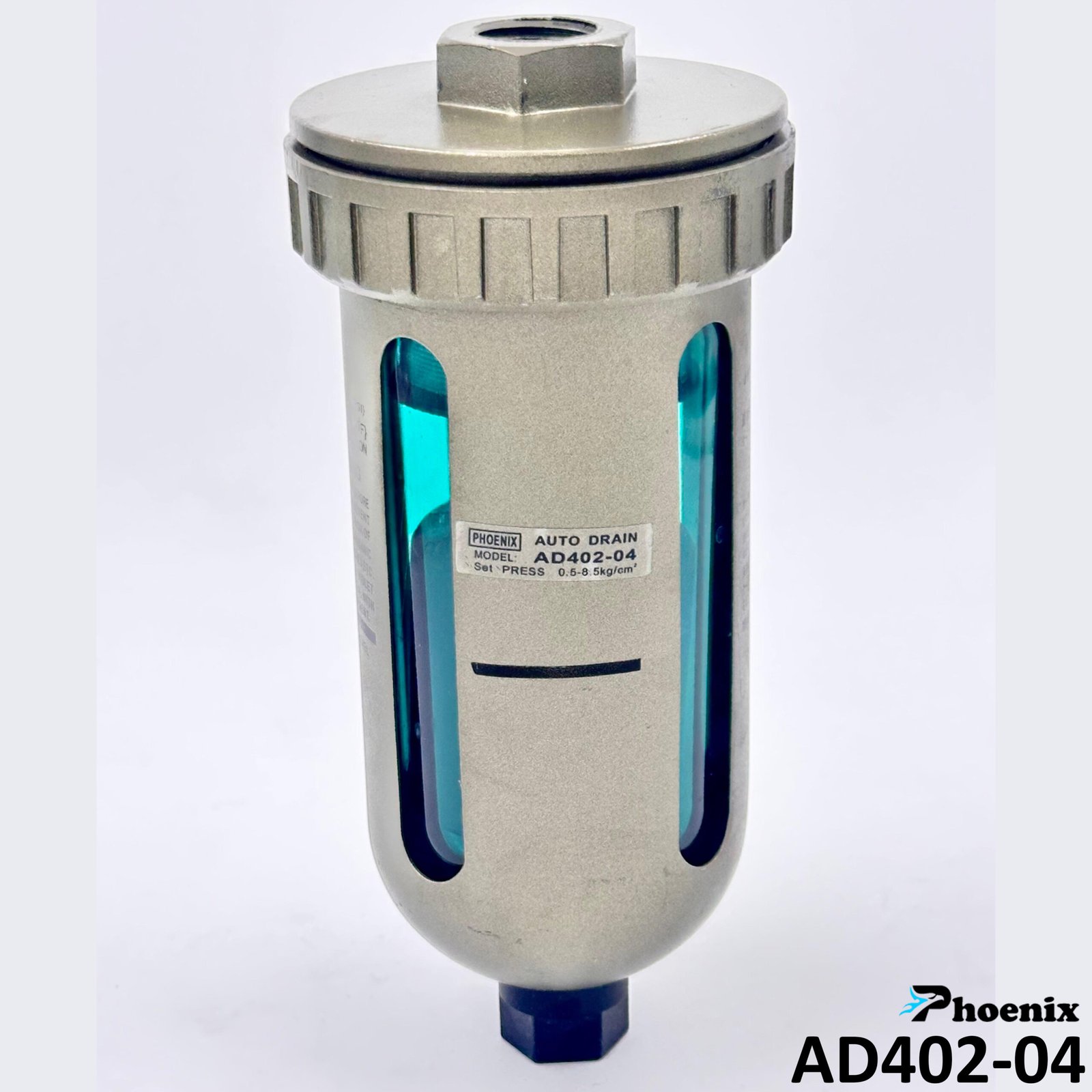

A-Type – Auto-Drain Valve (AD402)

Phoenix SMC Type Design FRLs "A Series" are designed for effective filtration, regulation, and lubrication in pneumatic systems. These units ensure clean, regulated air supply, enhancing the efficiency and longevity of pneumatic equipment.

These FRLs are used for filtering impurities from compressed air, regulating air pressure in pneumatic circuits, providing lubrication to improve component performance, and ensuring reliable operation in various industrial applications.

Type	AD40204
Applicable Fluid Type	Air
Proof Pressure	1.5 Mpa (15 bar)
Max. Working Pressure	1.0 Mpa (10 bar)
Operating Temperature Range	5°C - 60°C
Acting Pressure Range	0.15-1.0 Mpa (1.5-10.0 bar)
Bowl Material	Metal
