Download Catalog| Item Code | Thread Size (inch) | Price (per pc) |
|---|---|---|
| AL06 | 1/4" | 440 |

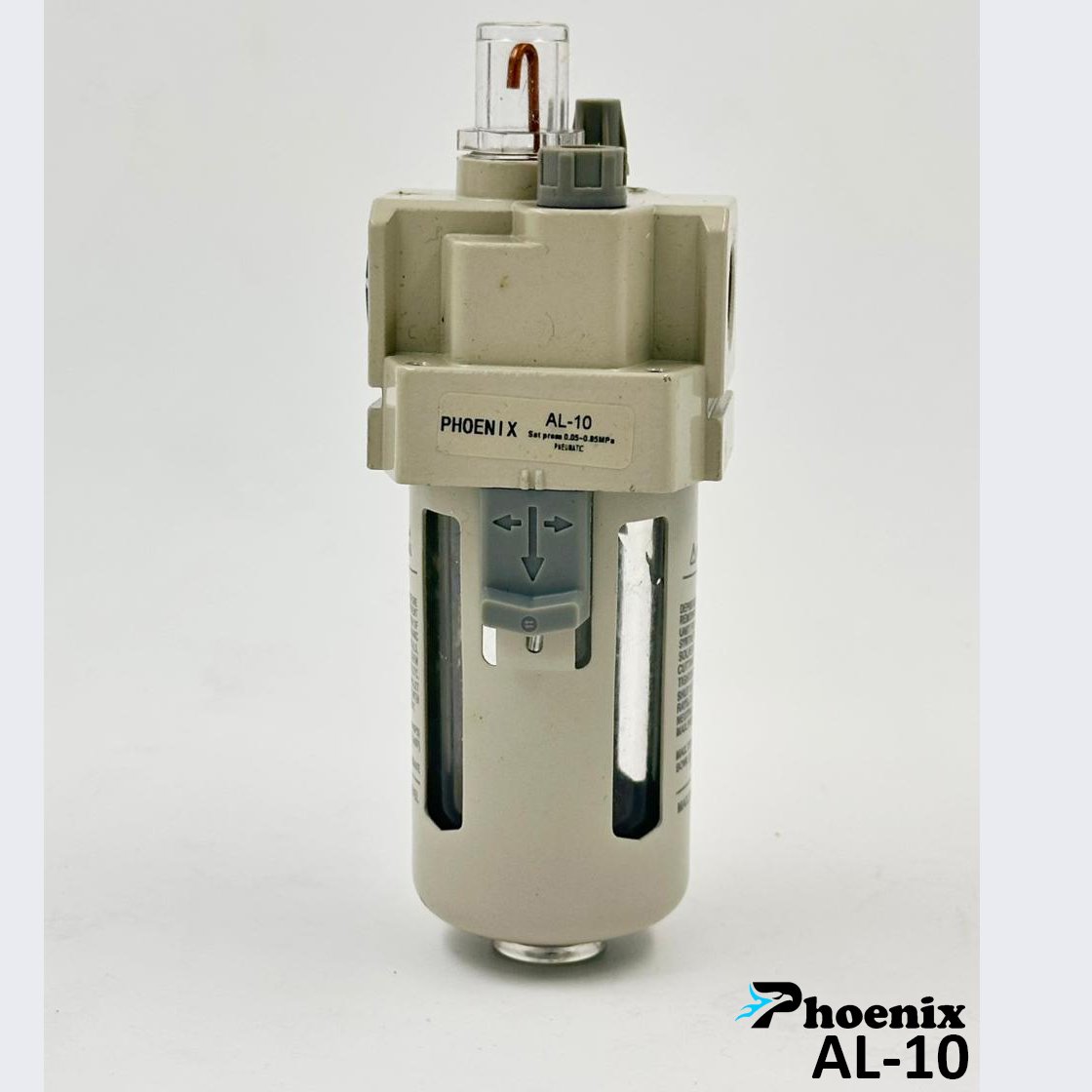

| AL10 | 3/8" | 710 |

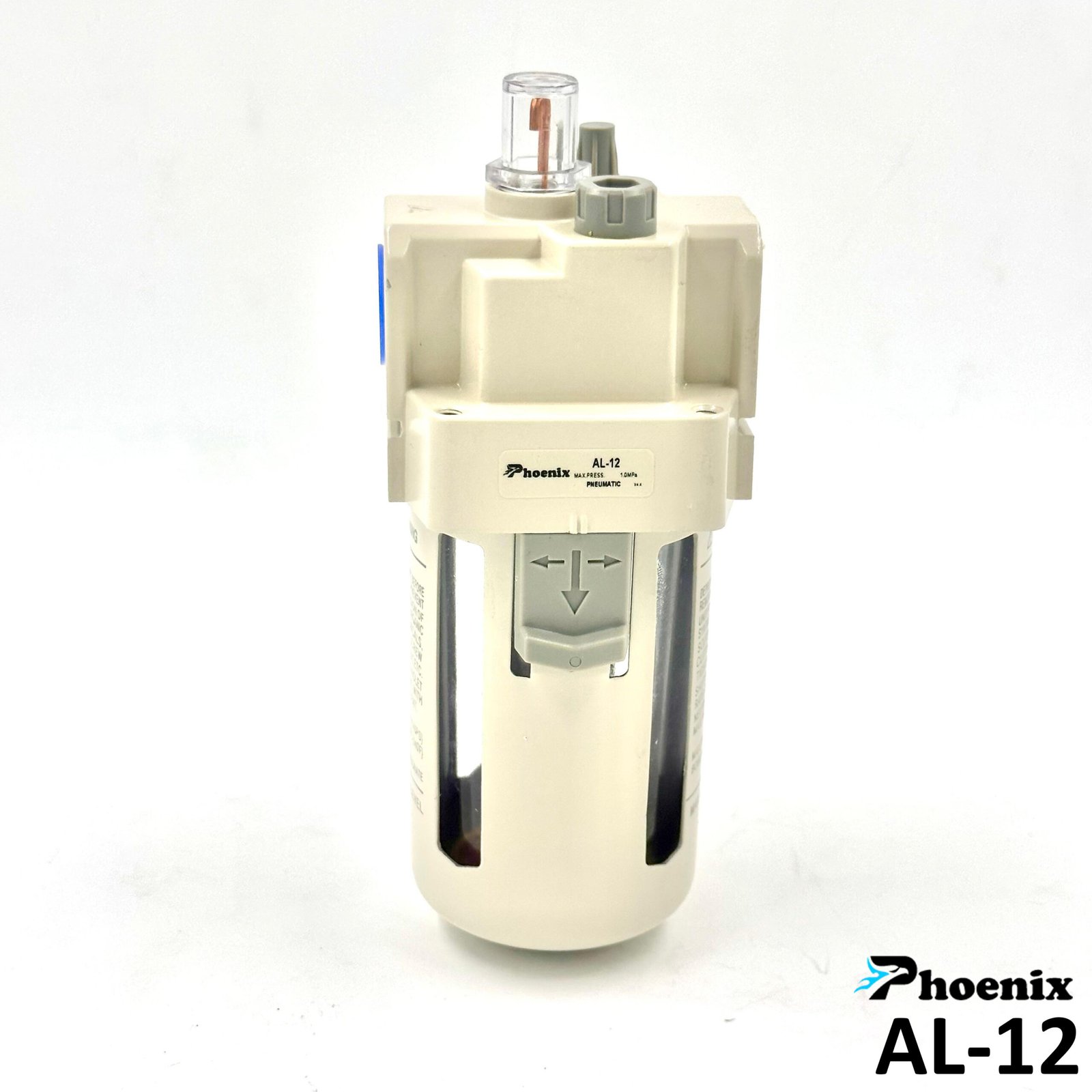

| AL12 | 1/2" | 1050 |

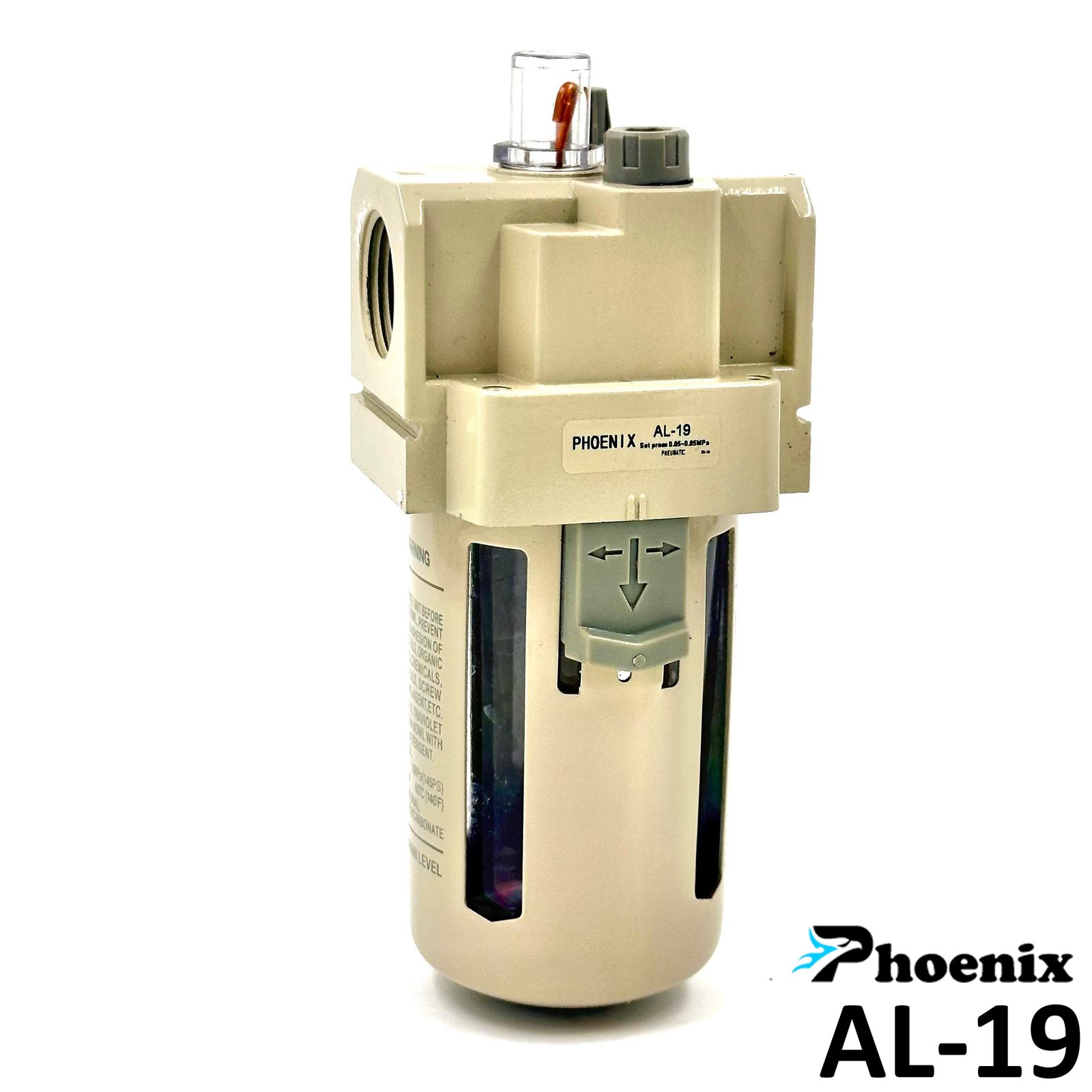

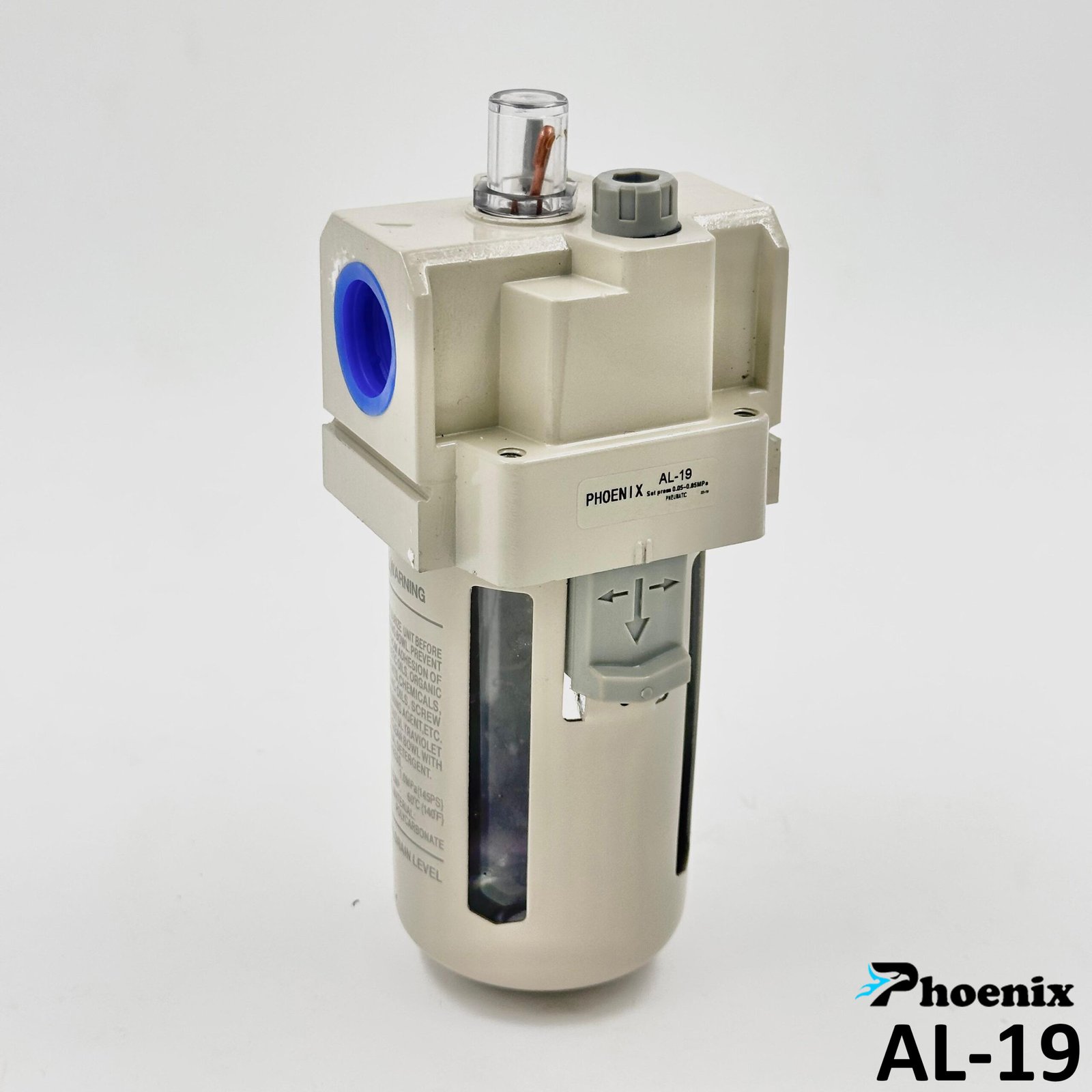

| AL19 | 3/4" | 1175 |

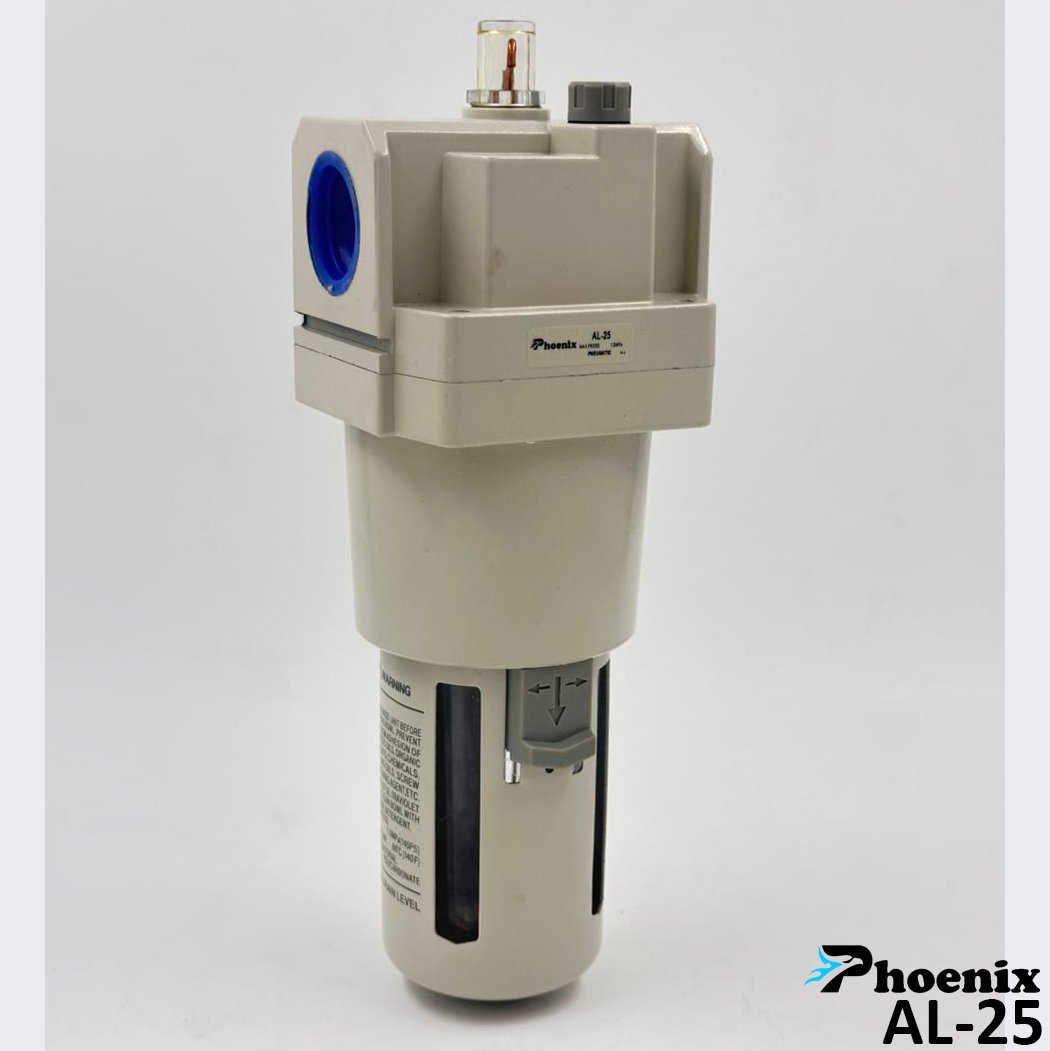

| AL25 | 1" | 2005 |
A-Type - Regulator (AR)
Price range: ₹675.00 through ₹2,170.00
A-Type - Auto-Drain Valve (AD402)
₹1,280.00
A-Type – Lubricator (AL)
Price range: ₹440.00 through ₹2,005.00

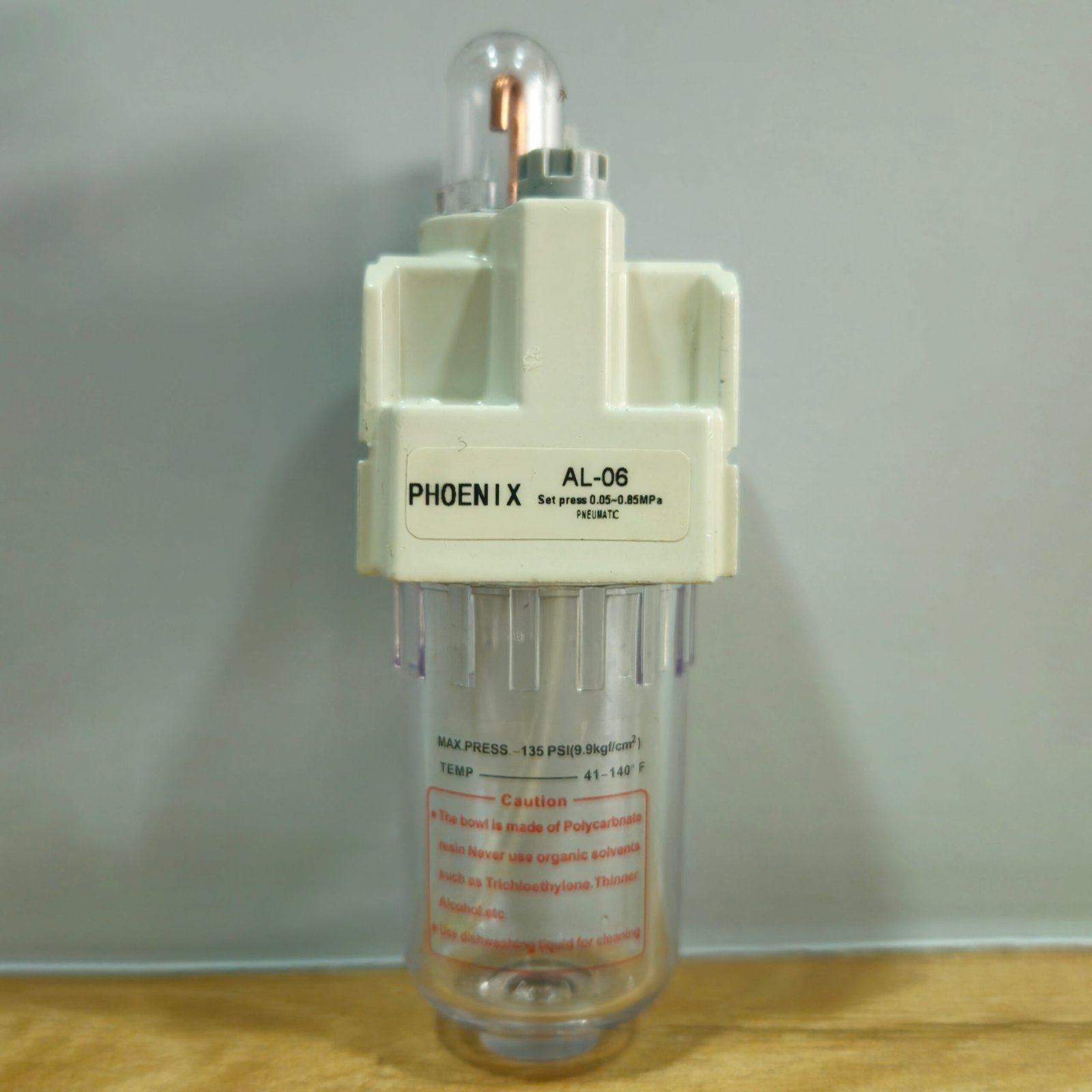

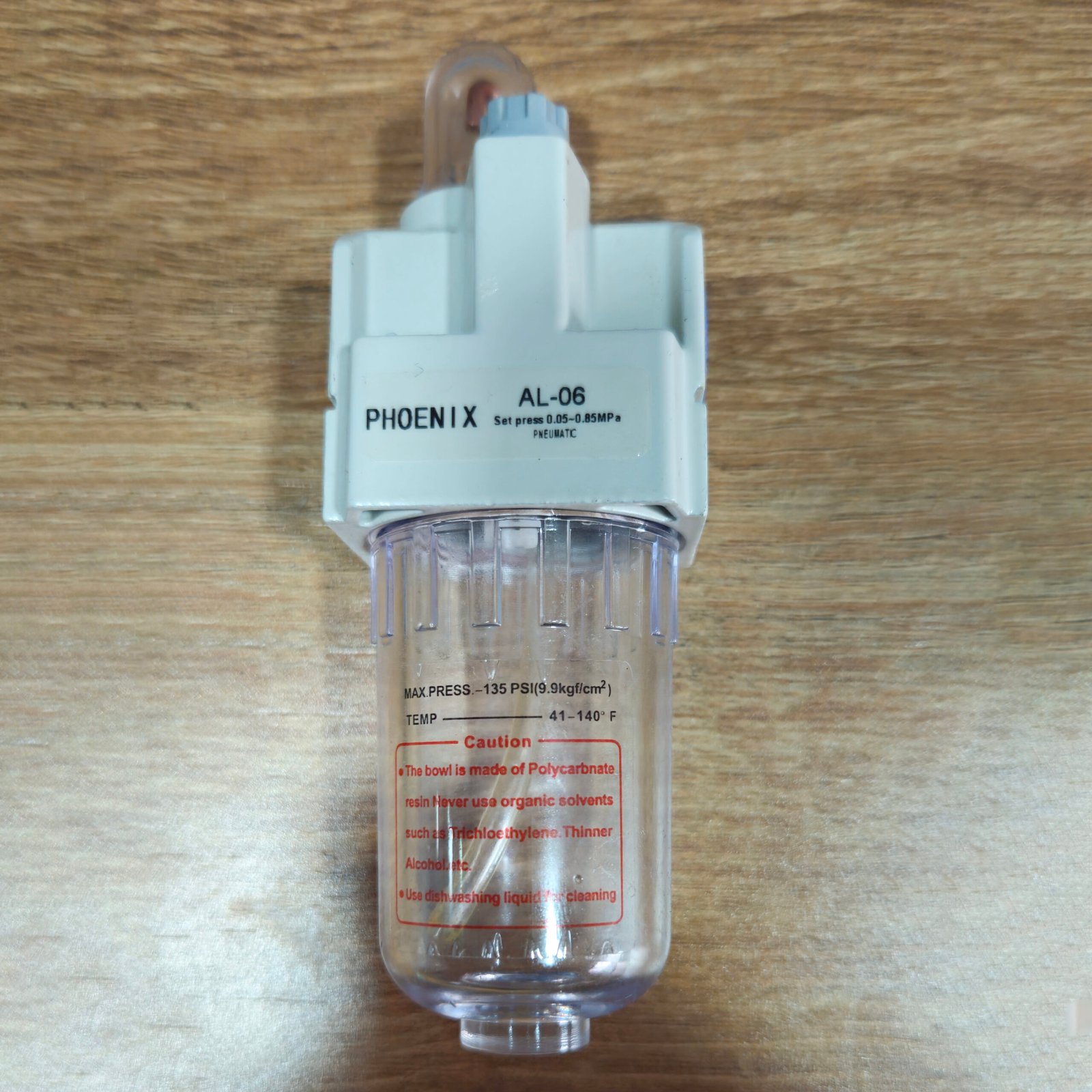

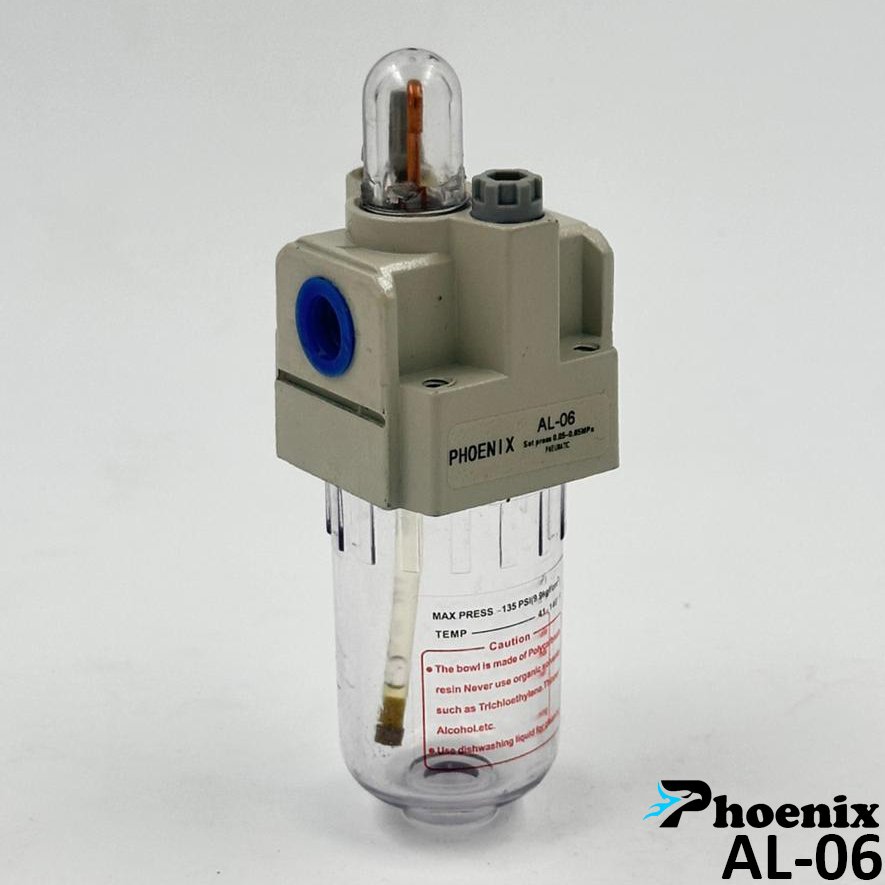

Phoenix Lubricator (AL)
Phoenix SMC Type Design FRLs "A Series" are designed for effective filtration, regulation, and lubrication in pneumatic systems. These units ensure clean, regulated air supply, enhancing the efficiency and longevity of pneumatic equipment.
These FRLs are used for filtering impurities from compressed air, regulating air pressure in pneumatic circuits, providing lubrication to improve component performance, and ensuring reliable operation in various industrial applications.
| Type | AL |
| Applicable Fluid Type | Air |
| Proof Pressure | 1.5 Mpa (15 bar) |
| Max. Working Pressure | 1.0 Mpa (10 bar) |
| Operating Temperature Range | 5°C - 60°C |
| Filter Aperture | 5 μm |
| Suggested Lubricant | SOVG32 / Turbine 1 Oil |
| Lubricator Bowl Material | Polycarbonate |
| Lubricator Bowl Hood Material | AL06 - Nil / AL10-25 - Iron |
| Lubricator Body Material | Zinc / Aluminium Die Casting |
Please select the item size (Qty – Pcs)
Description
Additional information
| Brand |
Phoenix |
|---|---|
| Size |
1/4" ,3/8" ,1/2" ,3/4" ,1" |
