Download Catalog| Item Code | ID (mm) | ID (inch) | Standard Length (mtr) | Price (per pc) |
|---|---|---|---|---|
| ALL4 | 102 | 4" | 7.5 | 1400 |
| ALL5 | 125 | 5" | 7.5 | 1750 |
| ALL6 | 152 | 6" | 7.5 | 1800 |
| ALL8 | 200 | 8" | 7.5 | 2850 |
| ALL10 | 250 | 10" | 7.5 | 3800 |
| ALL12 | 300 | 12" | 7.5 | 4875 |
Aluminium Semi-Rigid Duct Hose (ALH)
₹1,100.00 – ₹6,300.00
Aluminium Foil Hose - 250°C (ALL250)
₹2,400.00 – ₹9,300.00
Aluminium Foil Hose – 100°C (ALL100)
₹1,400.00 – ₹4,875.00
Fire-retardant Aluminium Foil Hose with reinforced steel wire for HVAC, exhaust, and ventilation applications.

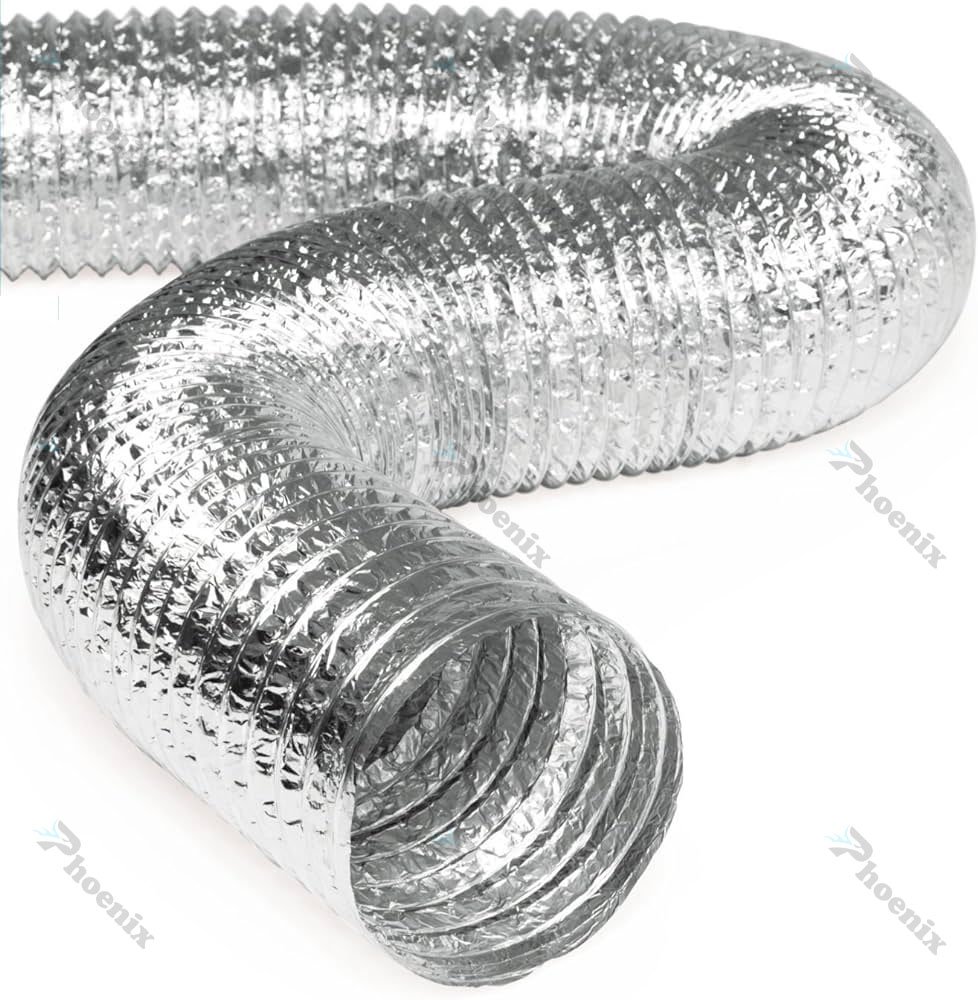

Aluminium Foil Hose – 100°C (ALL100)
- "ALL100" Aluminium Foil Hose is a highly flexible and fire-retardant ducting solution for HVAC, industrial, and home ventilation.
- These Aluminium Flexible Air Ducts are designed for low to medium pressure heating, cooling, ventilation, exhaust, and air conditioning systems.
- The Airtight “ALL100” is constructed from multi-layer aluminium and metallized polyester, reinforced with high-tension steel spring wire.
- “ALL100” is highly elastic and flexible, making it compatible with circular, oval, or rectangular connectors.
- The fire resistance of “ALL100” has been tested and certified by international bodies, ensuring no release of toxic or poisonous gases in the event of a fire.
- HVAC Ducting: Used in heating, ventilation, air conditioning, exhaust, and return air ducts.
- Industrial: For fume extraction, dust collection, and venting non-corrosive chemical fumes.
- Home: Ideal for dryer vents and kitchen range hoods.
- Agriculture: Ventilation for greenhouses, barns, and animal enclosures.
- Construction: Temporary ducting for dust control, ventilation, and dehumidification.
- Commercial Kitchens: Vents smoke, heat, and grease-laden air outside.
Aluminium Laminated Body
- Fire retardant, UV-resistant, 98% reflective, and chemical-resistant.
- Easy to transport, install, and store.
- High resistance to wear and tear, airtight, and low maintenance.
- This HVAC duct hose minimizes pressure loss, is anti-static, and has a dust-proof interior
- High resistance to deformation and energy-efficient.
| Type | ALL100 |
| Construction | 1 ply aluminium |
| 2 ply metallized polyester | |
| Wire | Bronze coated steel wire |
| Nominal Thickness | 45 micron |
| Wire Spacing | ⌀ 102mm - 30mm |
| > ⌀ 102mm - 40mm | |
| Available Diameters | ⌀ 102mm - ⌀ 305mm |
| Standard Length | 7.5 meter |
| Packing | Single Cardboard Box |
| Temperature Range | -30°C to 120°C |
| Air Velocity | 30 m/s (max) |
| Operating Pressure | 0.03 bar / 3000 Pa |
| Fire Resistance | Fire Retardant (BS 476 Class 0 certified) |
| Certificate | Russia - GOST-R |
| RoHS Compliant |
