Download Catalog| Size | Item Code | Tube Size (mm) | Thread Size (R) | Price (per pc) |
|---|---|---|---|---|
| 2.5mm x 4mm x m5 | ALPC254M5 | 2.5mm x 4mm | M5 | 48 |
| 2.5mm x 4mm x 1/8" | ALPC25401 | 2.5mm x 4mm | 1/8" | 39 |
| 2.5mm x 4mm x 1/4" | ALPC25402 | 2.5mm x 4mm | 1/4" | 51 |
| 4mm x 6mm x m5 | ALPC46M5 | 4mm x 6mm | M5 | 60 |
| 4mm x 6mm x 1/8" | ALPC4601 | 4mm x 6mm | 1/8" | 44 |
| 4mm x 6mm x 1/4" | ALPC4602 | 4mm x 6mm | 1/4" | 51 |
| 4mm x 6mm x 3/8" | ALPC4603 | 4mm x 6mm | 3/8" | 70 |
| 4mm x 6mm x 1/2" | ALPC4604 | 4mm x 6mm | 1/2" | 99 |
| 6mm x 8mm x 1/8" | ALPC6801 | 6mm x 8mm | 1/8" | 46 |
| 6mm x 8mm x 1/4" | ALPC6802 | 6mm x 8mm | 1/4" | 53 |
| 6mm x 8mm x 3/8" | ALPC6803 | 6mm x 8mm | 3/8" | 73 |
| 6mm x 8mm x 1/2" | ALPC6804 | 6mm x 8mm | 1/2" | 103 |
| 8mm x 10mm x 1/8" | ALPC81001 | 8mm x 10mm | 1/8" | 72 |
| 8mm x 10mm x 1/4" | ALPC81002 | 8mm x 10mm | 1/4" | 62 |
| 8mm x 10mm x 3/8" | ALPC81003 | 8mm x 10mm | 3/8" | 86 |
| 8mm x 10mm x 1/2" | ALPC81004 | 8mm x 10mm | 1/2" | 118 |
| 8mm x 11mm x 3/8" | ALPC81103 | 8mm x 11mm | 3/8" | 115 |
| 8mm x 12mm x 1/4" | ALPC81202 | 8mm x 12mm | 1/4" | 76 |
| 8mm x 12mm x 3/8" | ALPC81203 | 8mm x 12mm | 3/8" | 107 |
| 8mm x 12mm x 1/2" | ALPC81204 | 8mm x 12mm | 1/2" | 148 |
| 9mm x 12mm x 1/4" | ALPC91202 | 9mm x 12mm | 1/4" | 66 |
| 9mm x 12mm x 3/8" | ALPC91203 | 9mm x 12mm | 3/8" | 89 |
| 9mm x 12mm x 1/2" | ALPC91204 | 9mm x 12mm | 1/2" | 123 |
| 12mm x 16mm x 1/4" | ALPC121602 | 12mm x 16mm | 1/4" | 170 |
| 12mm x 16mm x 3/8" | ALPC121603 | 12mm x 16mm | 3/8" | 176 |
| 12mm x 16mm x 1/2" | ALPC121604 | 12mm x 16mm | 1/2" | 180 |
High-Speed Rotary Elbow (NRL)
Price range: ₹1,080.00 through ₹1,980.00
Aluminium Two-Touch Union Straight (ALPUC)
Price range: ₹75.00 through ₹365.00
Aluminium Male Two-Touch Connector (ALPC)
Price range: ₹39.00 through ₹180.00

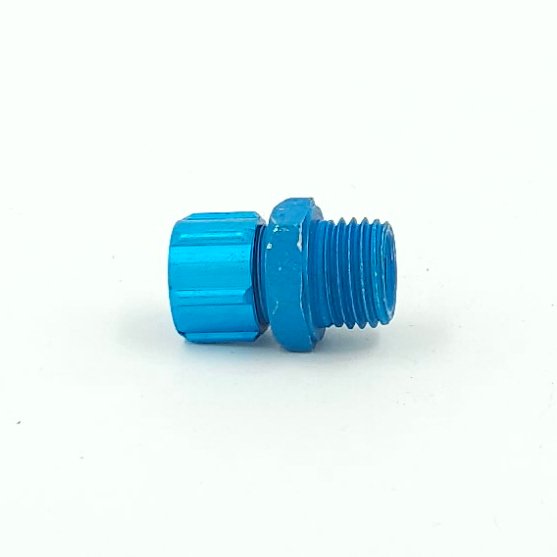

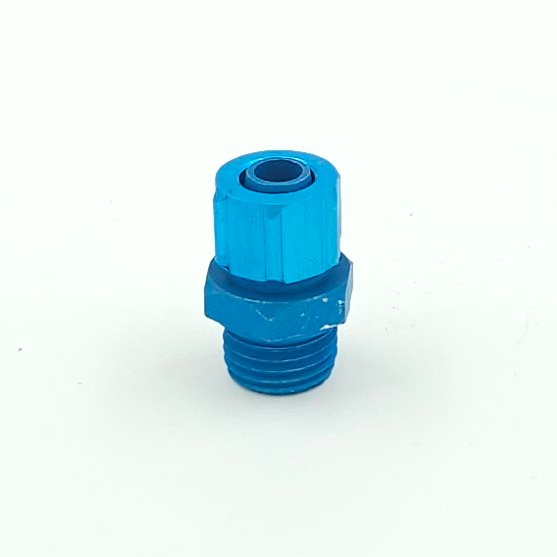

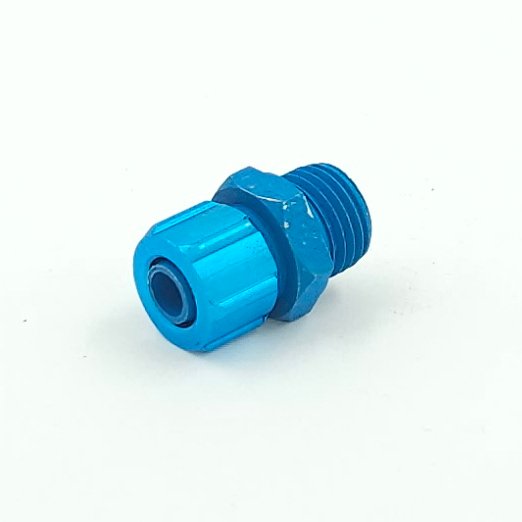

Phoenix Aluminium Male Two-Touch Connector (ALPC)
Phoenix Aluminium Two Touch PU Fittings “AL Series” offer a robust and reliable solution for connecting pneumatic and fluid systems. Constructed from lightweight aluminum, these fittings ensure durability while providing easy installation and secure connections.
These fittings are used to create reliable connections in pneumatic systems, facilitate fluid transfer in industrial applications, support assembly and disassembly of equipment, connect air supply lines in tools, and optimize performance in automation setups.
| Type | ALPC |
| Applicable Fluid Type | Air (No other type of gas or liquid) |
| Working Pressure Range | 0-1.0 Mpa (0-10 bar) |
| Working Temperature | 0-60°C |
| Applicable Tubing | PU Tube, Nylon Tube |
Please select the item size (Qty – Pcs)
Description
Additional information
| Item SIze |
2.5mm x 4mm x m5 ,2.5mm x 4mm x 1/8" ,2.5mm x 4mm x 1/4" ,4mm x 6mm x m5 ,4mm x 6mm x 1/8" ,4mm x 6mm x 1/4" ,4mm x 6mm x 3/8" ,4mm x 6mm x 1/2" ,6mm x 8mm x 1/8" ,6mm x 8mm x 1/4" ,6mm x 8mm x 3/8" ,6mm x 8mm x 1/2" ,8mm x 10mm x 1/8" ,8mm x 10mm x 1/4" ,8mm x 10mm x 3/8" ,8mm x 10mm x 1/2" ,8mm x 11mm x 3/8" ,8mm x 12mm x 1/4" ,8mm x 12mm x 3/8" ,8mm x 12mm x 1/2" ,9mm x 12mm x 1/4" ,9mm x 12mm x 3/8" ,9mm x 12mm x 1/2" ,12mm x 16mm x 1/4" ,12mm x 16mm x 3/8" ,12mm x 16mm x 1/2" |
|---|---|
| Brand |
Phoenix |
