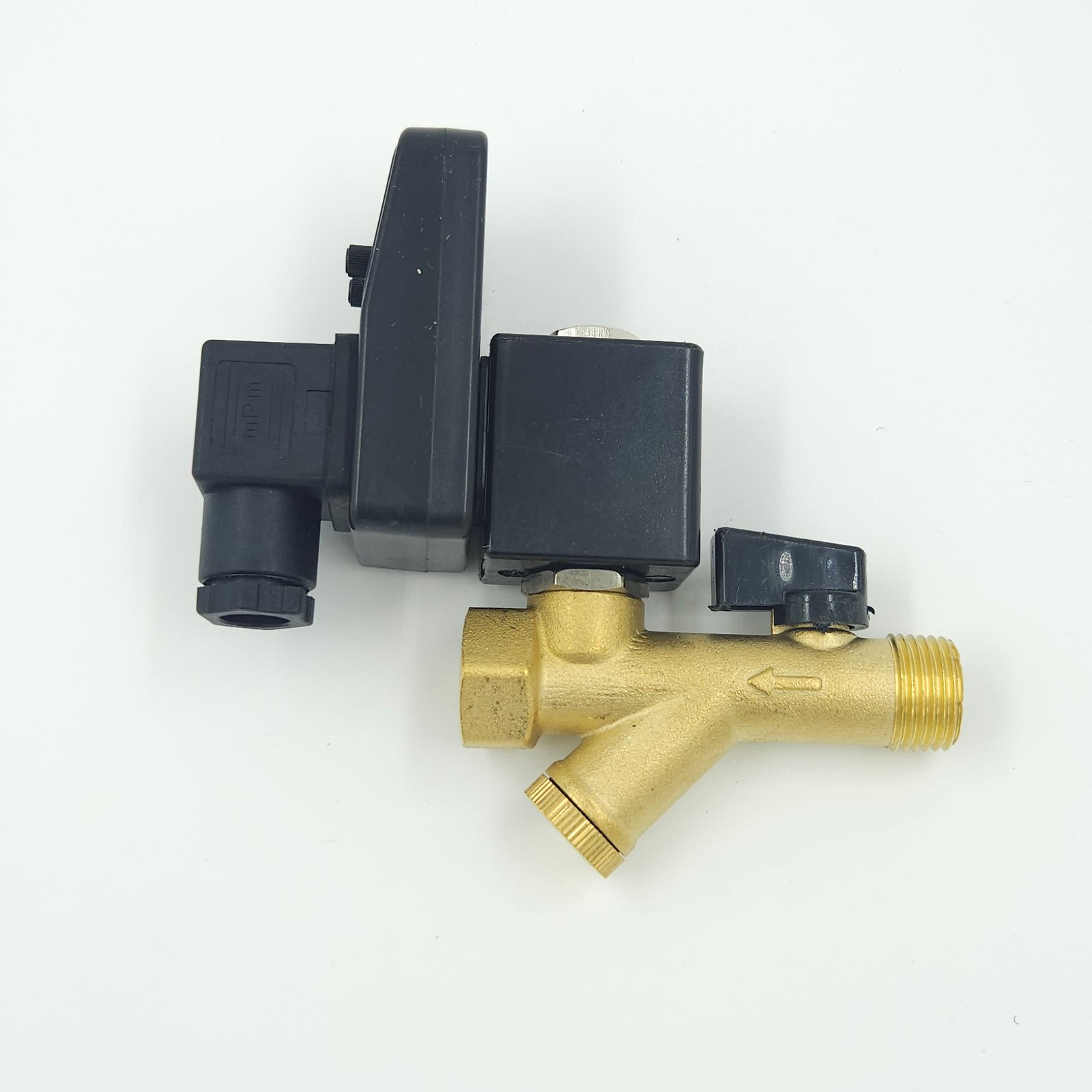

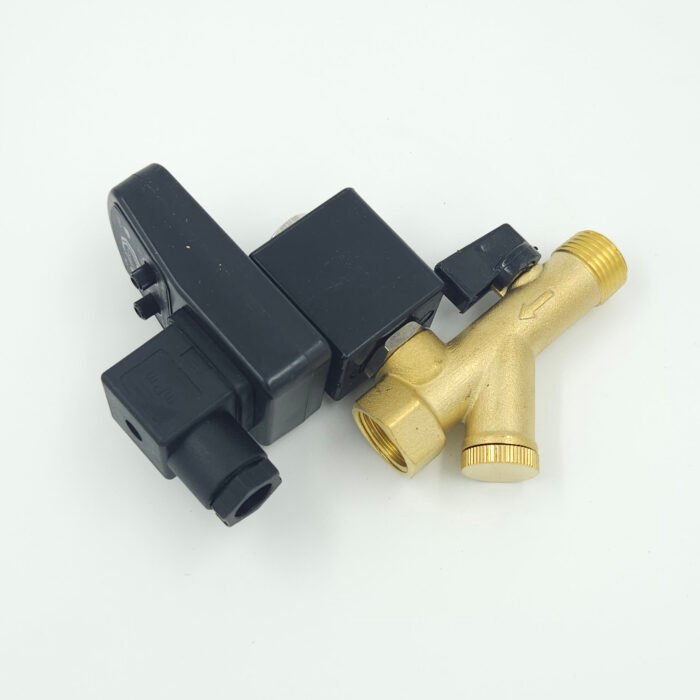

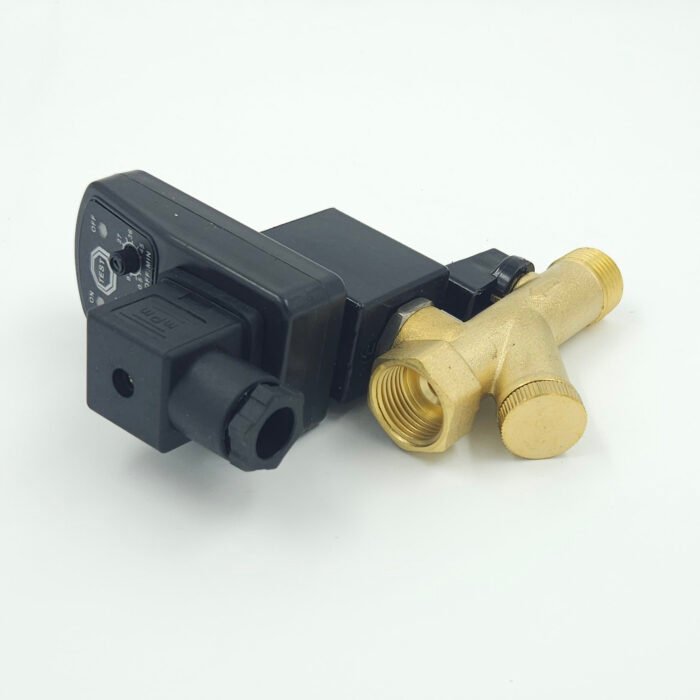

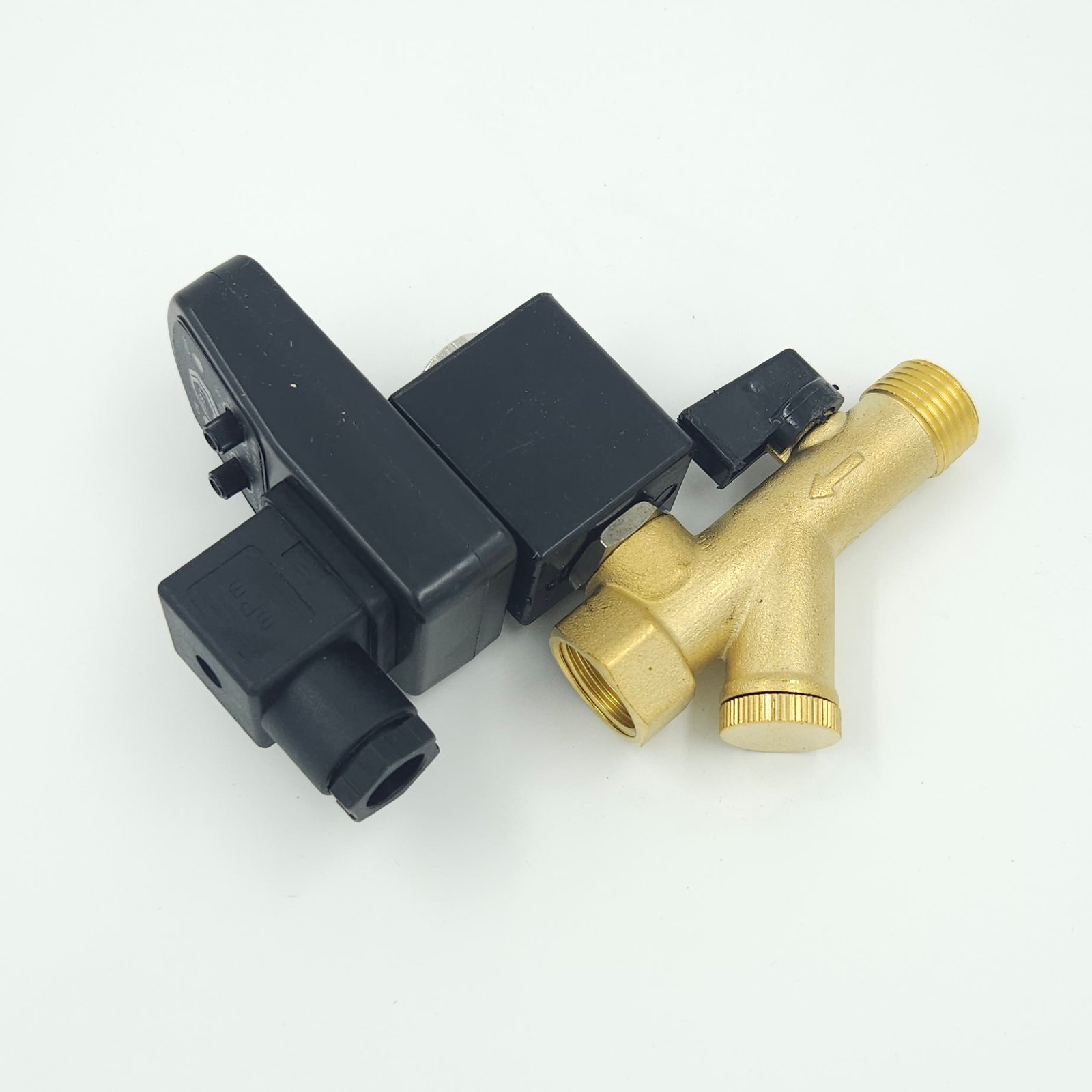

Auto-Drain Valve with Timer (CS720)

Phoenix Auto-Drain Valve with Timer is designed to automate the removal of condensate from compressed air systems, ensuring optimal performance and preventing water buildup. The integrated timer allows for customizable drainage intervals, enhancing efficiency in pneumatic applications.

This auto-drain valve is used for automatically removing condensate from air compressors, facilitating maintenance-free operation in pneumatic systems, preventing water accumulation in air lines, and supporting optimal air quality in various industrial applications.

Type	CS720
Material	Brass
Coil Material	Copper
Cycle Time	0.5 - 45 minutes
Max. Working Pressure	1.6 Mpa (16 bar)
Working Temperature	90°C
Drain Time	0.5 - 10 seconds
Coil Voltage	230V
