Download Catalog| Item Code | Material | Thread Size (inch) | Price |
|---|---|---|---|
| KA01 | Aluminium | 1/8" | 225 |
| KA02 | Aluminium | 1/4" | 225 |
| KA03 | Aluminium | 3/8" | 475 |
| KA04 | Aluminium | 1/2" | 525 |
| CV01 | Brass | 1/8" | 195 |
| CV02 | Brass | 1/4" | 195 |
| CV03 | Brass | 3/8" | 295 |
| CV04 | Brass | 1/2" | 595 |
Hand Slide Valves (HSV Series)
₹300.00 – ₹545.00
Mini Ball Valves (MBV Series)
₹225.00 – ₹390.00
Check Valves (KA and CV Series)
₹195.00 – ₹595.00

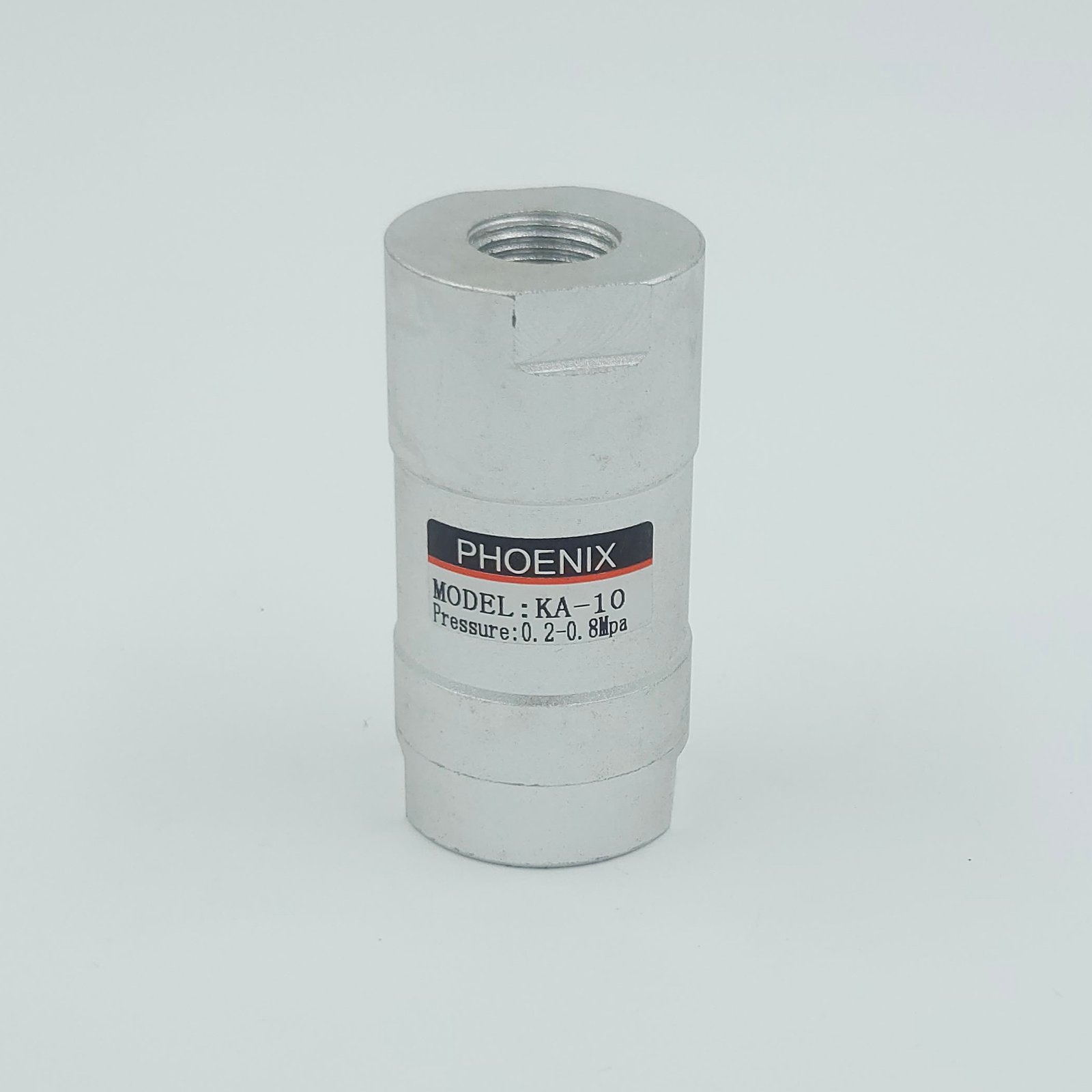

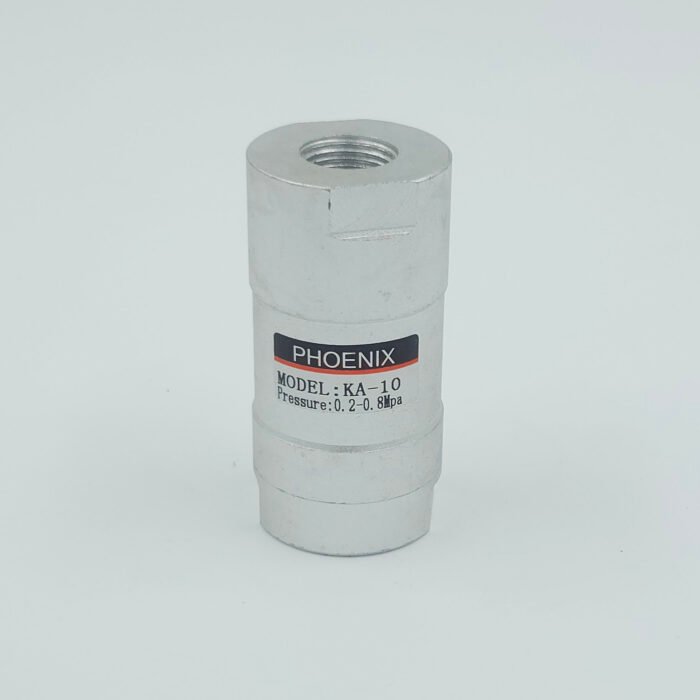

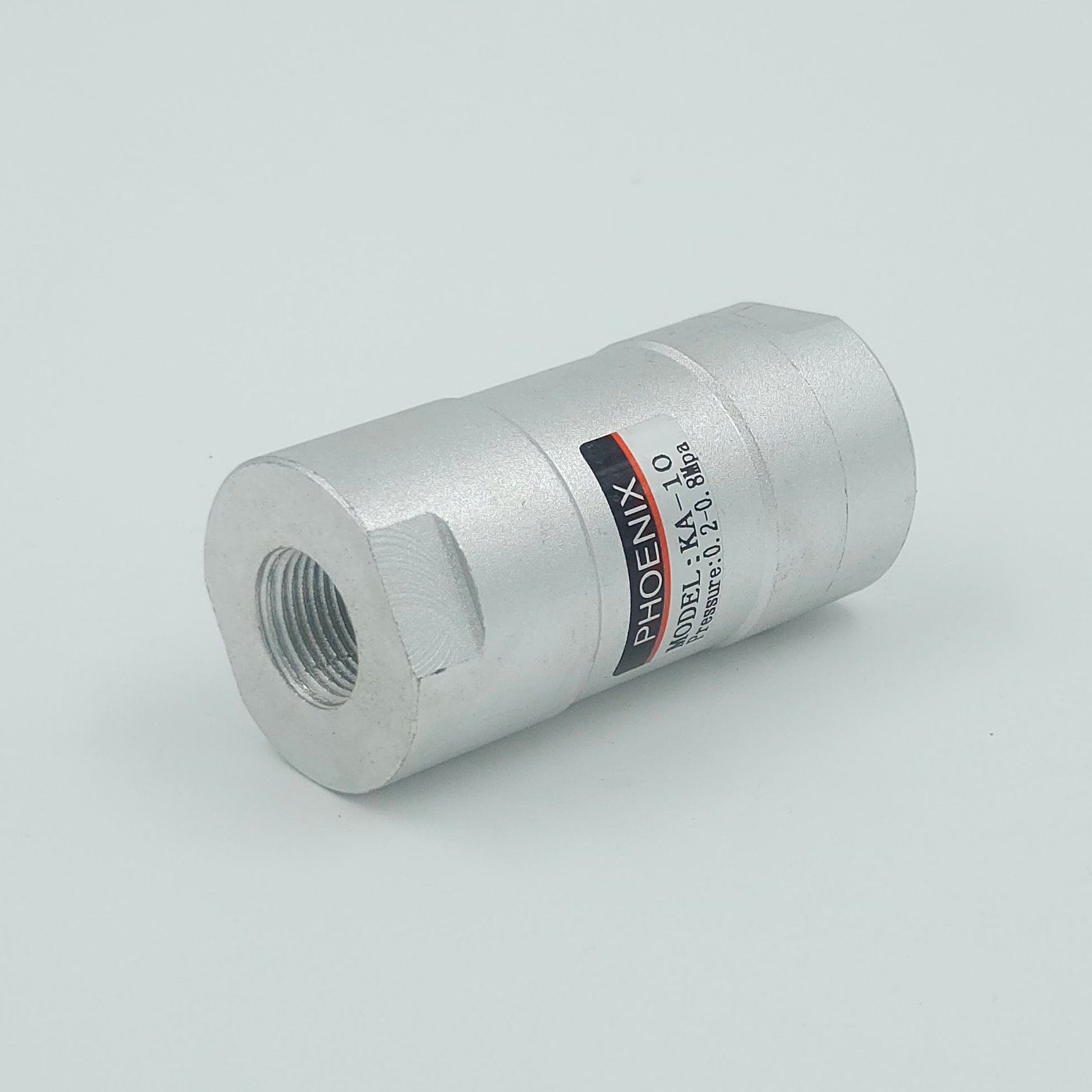

Phoenix-Check Valves (KA and CV Series)
Phoenix Check Valves are designed to ensure unidirectional flow in pneumatic and hydraulic systems. These valves prevent backflow, enhancing the safety and efficiency of various fluid handling applications.
These check valves are used for preventing backflow in fluid circuits, ensuring one-way flow in pneumatic systems, maintaining pressure in pipelines, and supporting reliable operation in various industrial applications.
| Type | Check Valves |
| Material | Aluminium (KA) / Brass (CV) |
| Working Medium | Clean and Filtered Air |
| Working Pressure | 0.15-0.8 Mpa (1.5-8 bar) |
| Working Temperature | 5-60°C |
| Seals Material | NBR |
Please select the item size (Qty – Pcs)
Description
Additional information
| Size |
1/8" ,1/4" ,3/8" ,1/2" |
|---|---|
| Brand |
Phoenix |
| Type |
Aluminium (KA) ,Brass (CV) |
