Download Catalog| Item Code | ID (mm) | ID (inch) | Standard Length (mtr) | Price (per pc) |
|---|---|---|---|---|
| COMBI2 | 50 | 2" | 10 | 2200 |
| COMBI212 | 63 | 2-1/2" | 10 | 2200 |
| COMBI3 | 76 | 3" | 10 | 2600 |
| COMBI4 | 102 | 4" | 10 | 3200 |
| COMBI5 | 125 | 5" | 10 | 4500 |
| COMBI6 | 152 | 6" | 10 | 4500 |
| COMBI8 | 203 | 8" | 10 | 6000 |
| COMBI4G | 102 | 4" | 10 | 3200 |
| COMBI6G | 152 | 6" | 10 | 4500 |
| COMBI8G | 203 | 8" | 10 | 6000 |
Aluminium Thermally Insulated Foil Hose (ALLIL)
Price range: ₹2,500.00 through ₹6,900.00
PVC Fabric Hose (FAB)
Price range: ₹375.00 through ₹2,900.00
PVC Coated Aluminium Duct Hose (COMBI)
Price range: ₹2,200.00 through ₹6,000.00
Durable PVC Coated Aluminium Duct Hose for HVAC, fume extraction, and ventilation with superior condensation resistance.

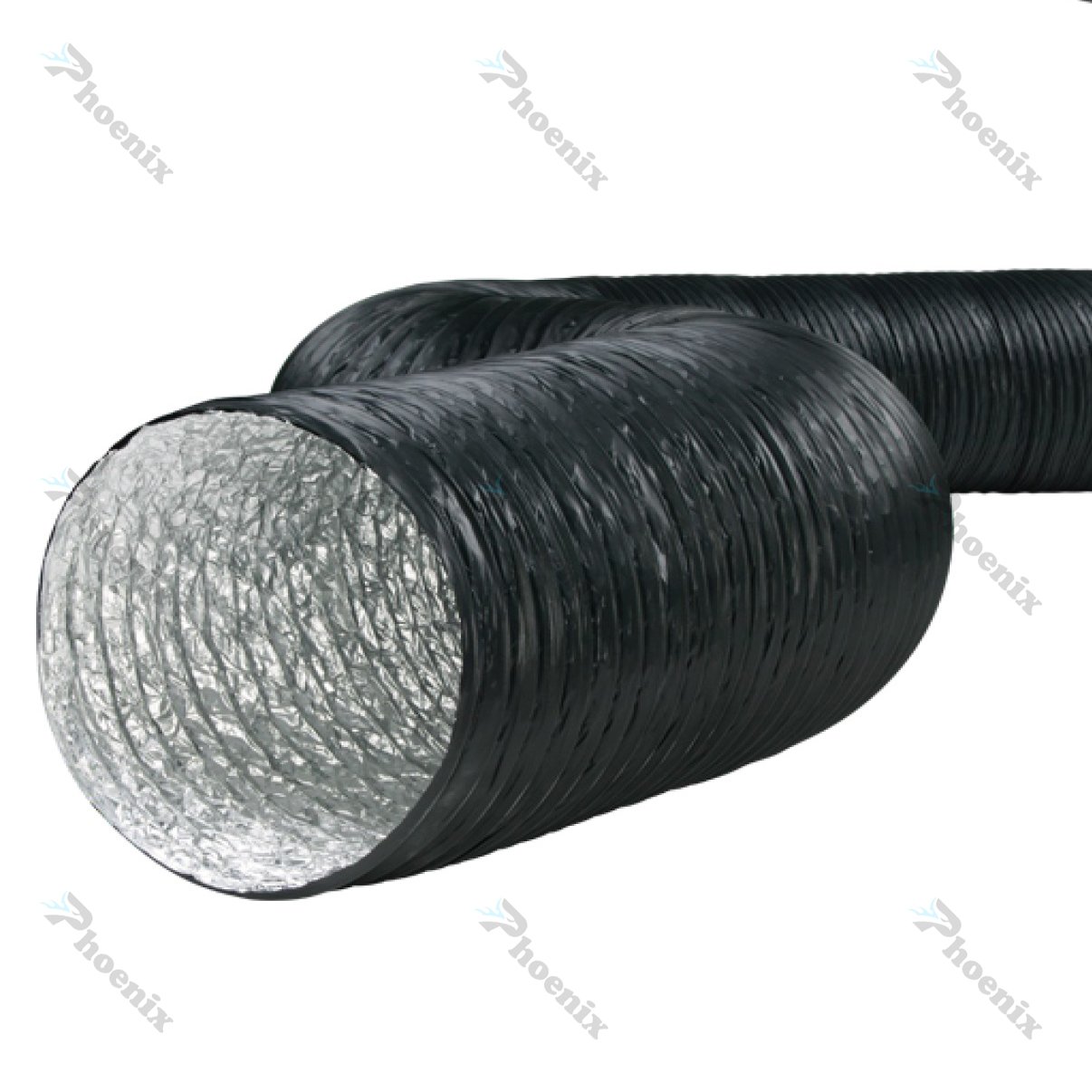

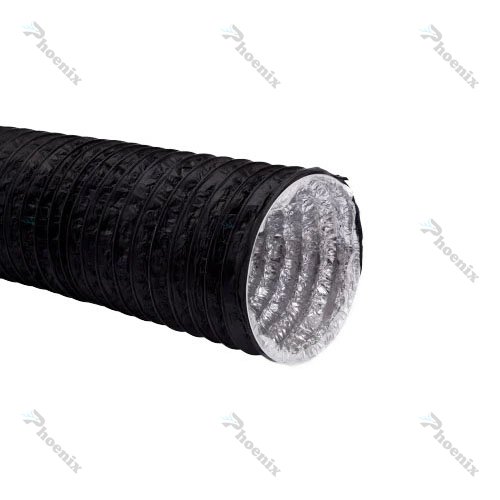

PVC Coated Aluminium Duct Hose (COMBI)
- “COMBI” is a flexible aluminium duct made from multi-layer aluminium and polyester, reinforced with high-tension steel spring wire, and covered with a PVC layer.
- “COMBI” is recommended for discharging welding fumes, and for low to medium pressure, heating, cooling and air conditioning systems.
- The PVC layer provides better protection against condensation compared to standard non-insulated ducts. It helps maintain indoor air quality by preventing mold growth and corrosion caused by condensation.
- The PVC layer also enhances resistance to punctures and tears, combined with fire resistance makes COMBI a fire-resistant ventilation duct suitable for HVAC and industrial applications.
- “COMBI” is elastic and flexible and can be easily fitted to circular, oval or rectangular connectors.
- Its dimensions, tolerances and mechanical resistance are tested and certified according to EN 13180 standards
- HVAC Systems: Suitable for heating, ventilation, air conditioning, exhaust, and return air ducts.
- Industrial: Industrial fume extraction hose ideal for fume extraction, dust collection, and venting chemical fumes.
- Home: Ideal for dryer venting in laundry facilities.
- Agriculture: Ventilates barns and animal enclosures.
- Marine and Shipbuilding: Used in ventilation systems on ships and marine vessels; corrosion-resistant for harsh environments.
- Construction: Temporary ducting for dust control, ventilation, and dehumidification.
- Commercial Kitchens: Vents smoke, heat, and grease-laden air outside.
Aluminium Laminated Inner Flexible Duct
- UV-resistant and chemical-resistant
- Easy to transport, install, and store.
- Airtight and low maintenance.
- Minimizes pressure loss, anti-static, and dust-proof.
- High resistance to deformation and durable.
- High resistance to wear, mechanical stress, UV rays, and chemicals.
| Type | COMBI |
| Construction | 3 ply aluminium |
| 2 ply polyester | |
| 1 ply PVC | |
| Nominal Thickness | 150 micron |
| PVC Color | Black / Grey |
| Wire Spacing | > ⌀ 125mm - 35mm |
| Available Diameters | ⌀ 50mm - ⌀ 203mm |
| Standard Length | 10 meter |
| Packing | Single Cardboard Box |
| Temperature Range | -30°C to 150°C |
| Air Velocity | 30 m/s (max) |
| Operating Pressure | 0.03 bar / 3000 Pa |
| Fire Resistance | Fire Retardant Class 1 - CSI Italy |
| Certificate | Russia - GOST-R |
| Certificate | RoHS Compliant |
