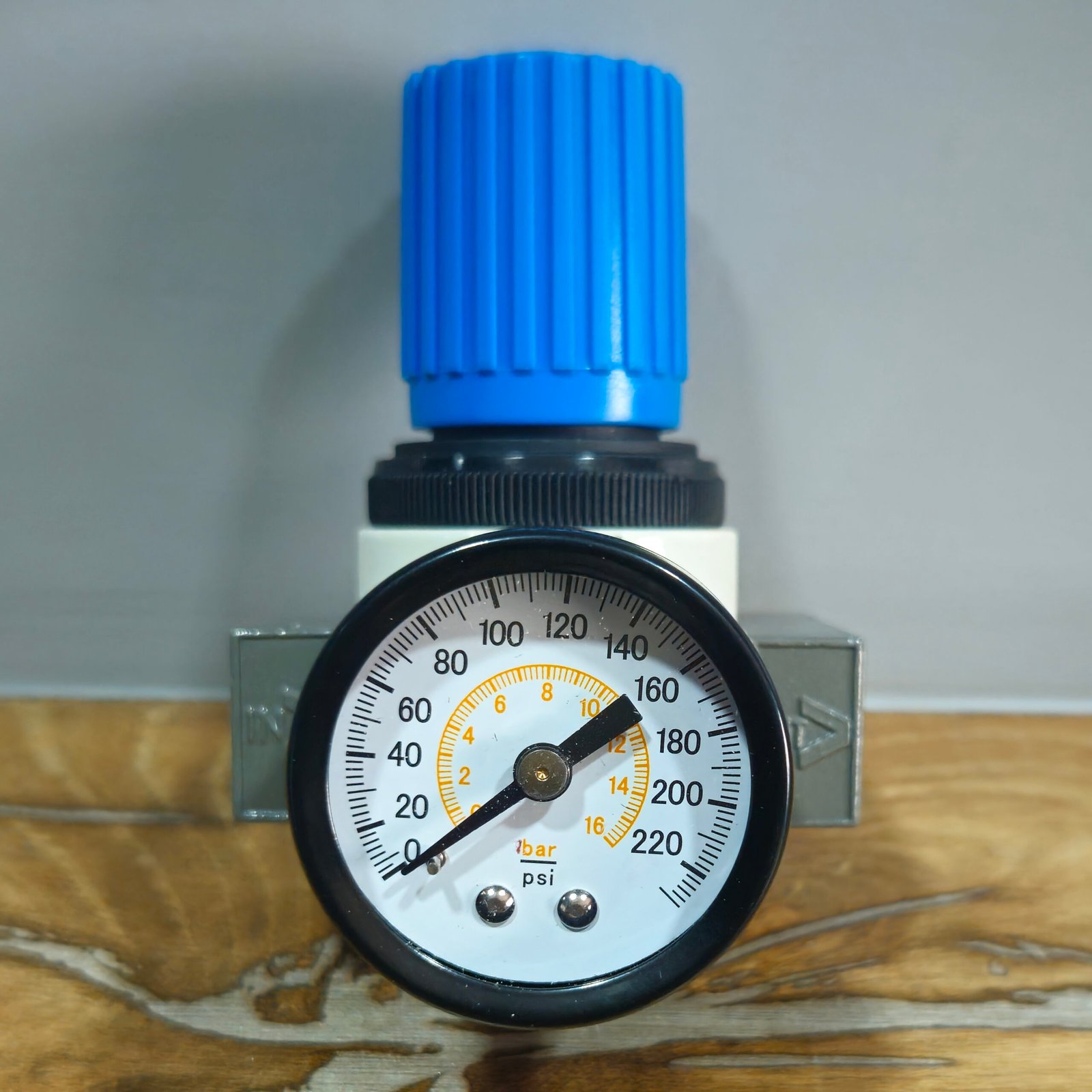

D-Type – Regulator (DR)

Phoenix Festo Type Design FRLs "D Series" are designed for effective filtration, regulation, and lubrication in pneumatic systems. These units ensure clean, regulated air supply, enhancing the efficiency and longevity of pneumatic equipment.

These FRLs are used for filtering impurities from compressed air, regulating air pressure in pneumatic circuits, providing lubrication to improve component performance, and ensuring reliable operation in various industrial applications.

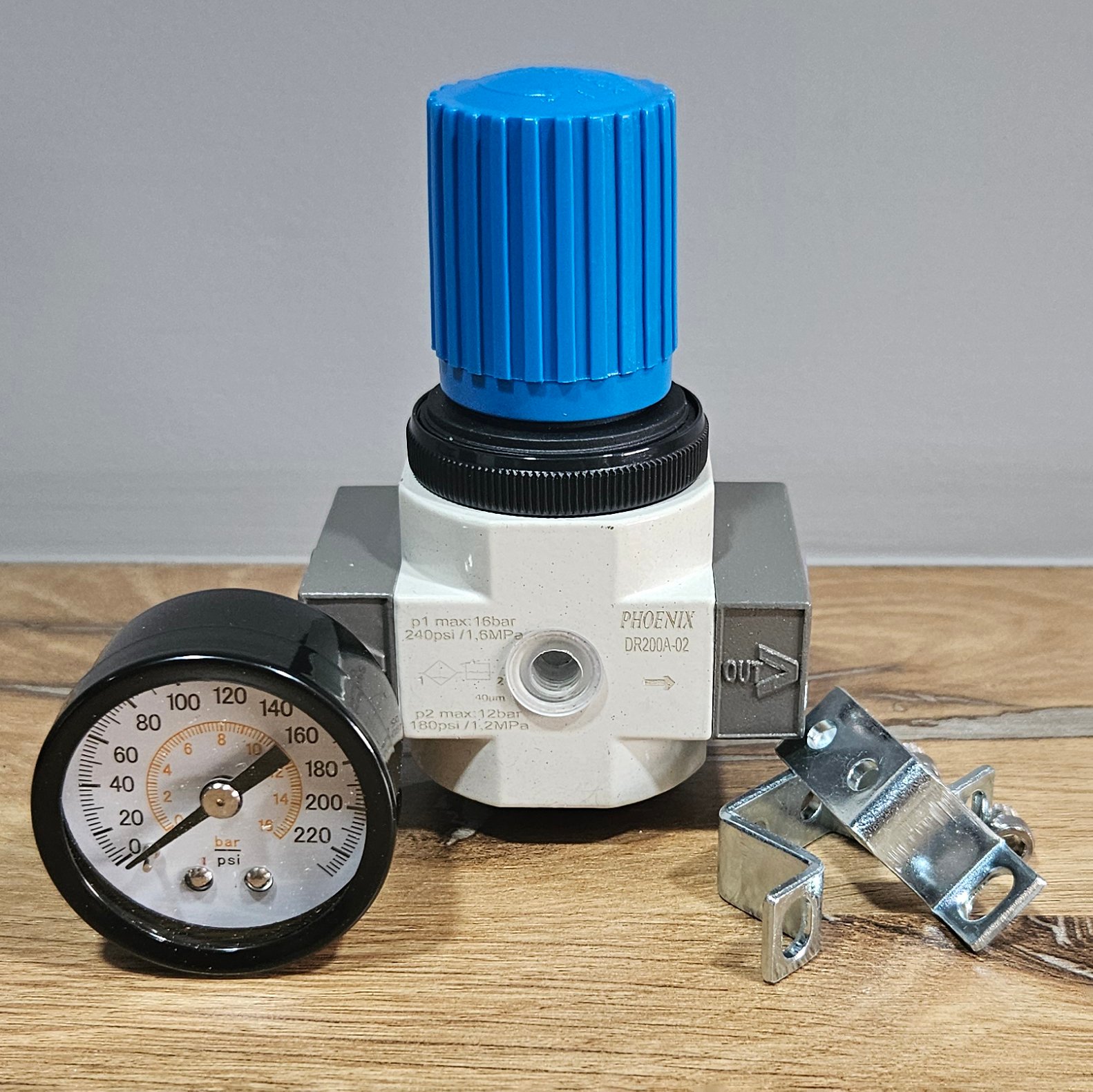

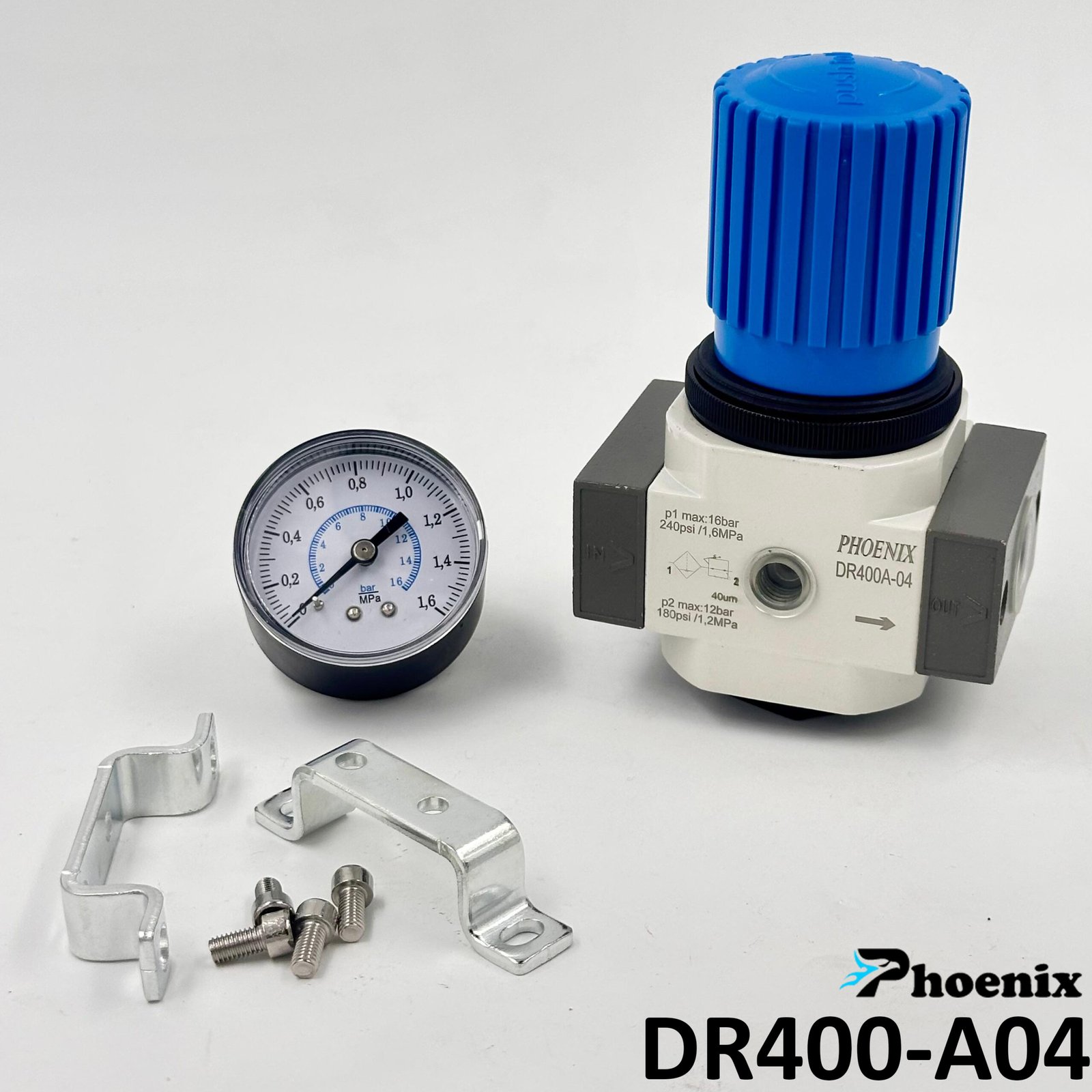

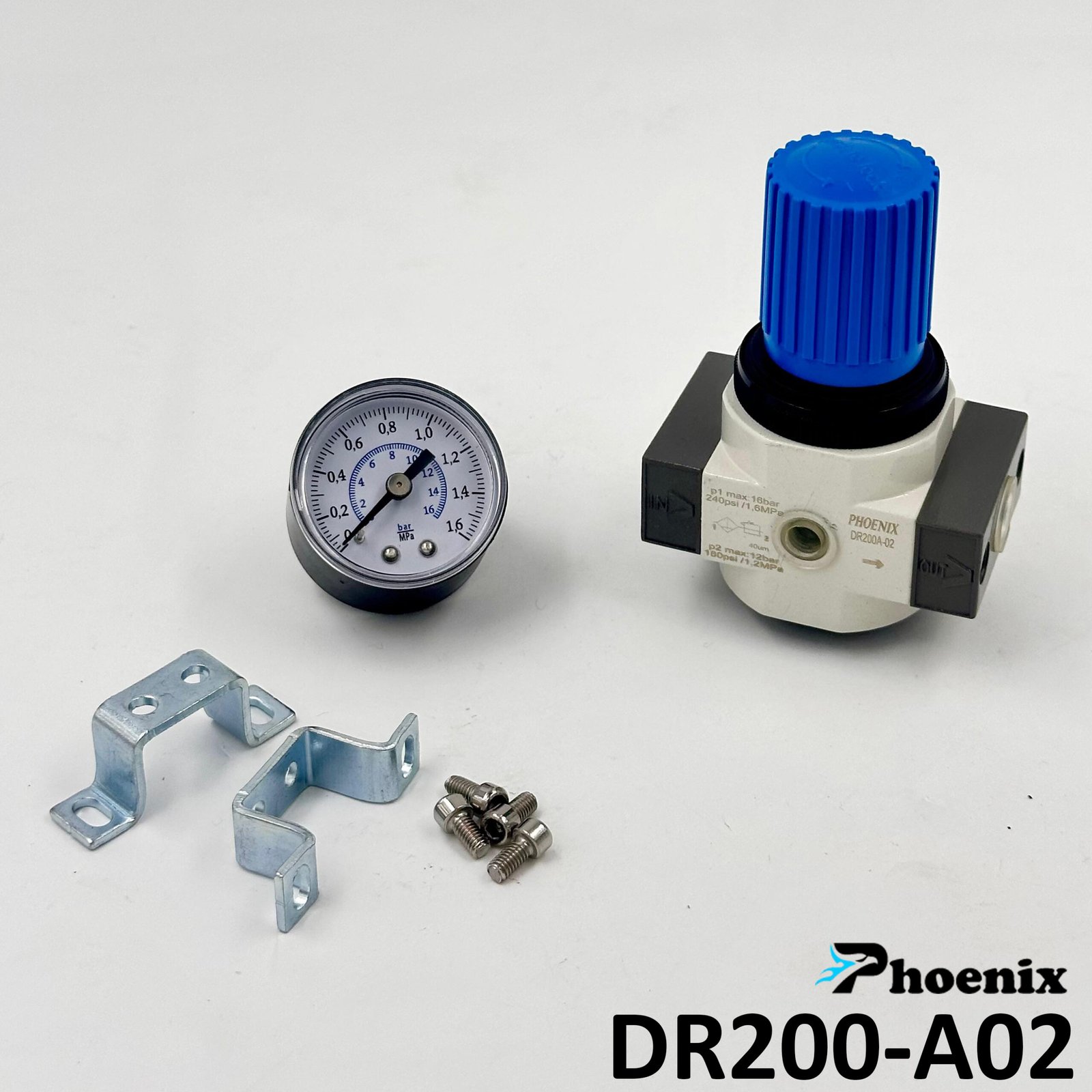

Type	DR200A02	DR400A04
Applicable Fluid Type	Air
Thread Size	1/4"	1/2"
Operating Temperature Range	-10°C - 60°C
Operating Pressure	0.0-1.6 Mpa (0-16 bar)
Pressure Regulating Range	0.05-1.2 Mpa (0.5-12 bar)
Max. Pressure Hysteresis	0.2 bar	0.4 bar
Max. Condensate Volume	22-43 cm3	43-80 cm3
Standard Nominal Flow Rate	2100 l/min	10500 l/min
Weight	720g	1200g
