Download Catalog| Item Code | Size (inch) | Price |
|---|---|---|
| RMF20 | 3/4" | 2105 |
| RMF25 | 1" | 2105 |
| RMF40 | 1-1/2" | 3650 |
Spares for 2W, 2TB and 2S Series Valves
₹200.00 – ₹2,950.00
Aluminium Semi-Rigid Duct Hose (ALH)
₹1,100.00 – ₹6,300.00
Dust Collector Valve (RMF Series)
₹200.00 – ₹2,950.00

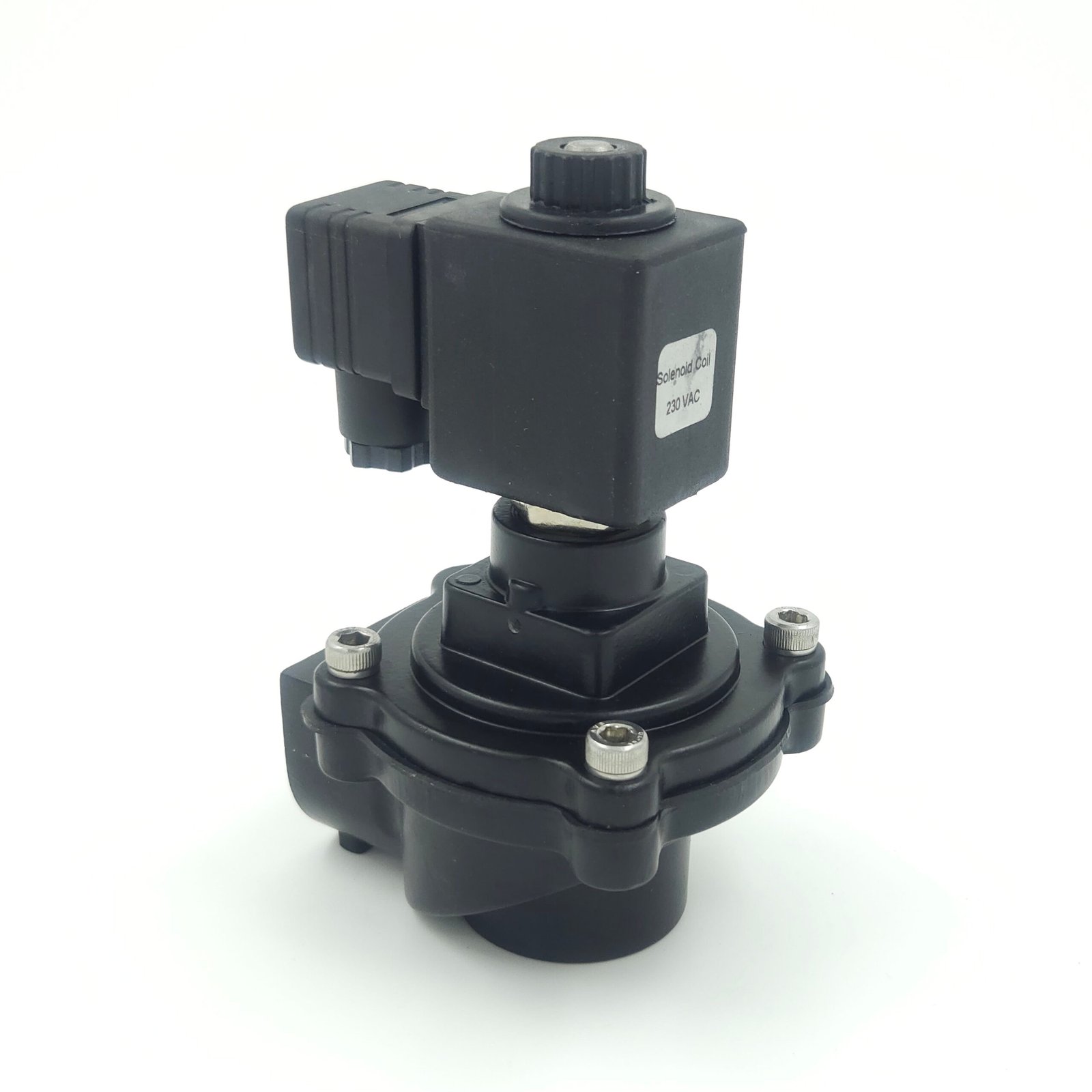

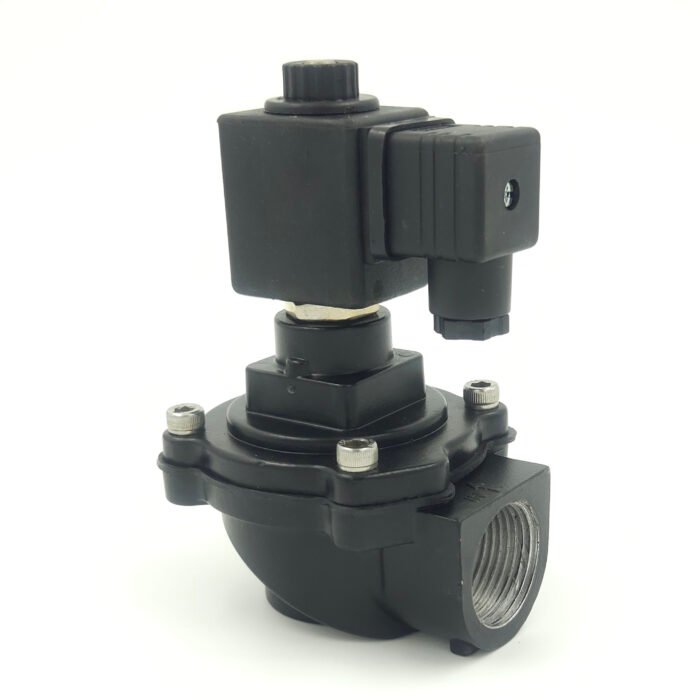

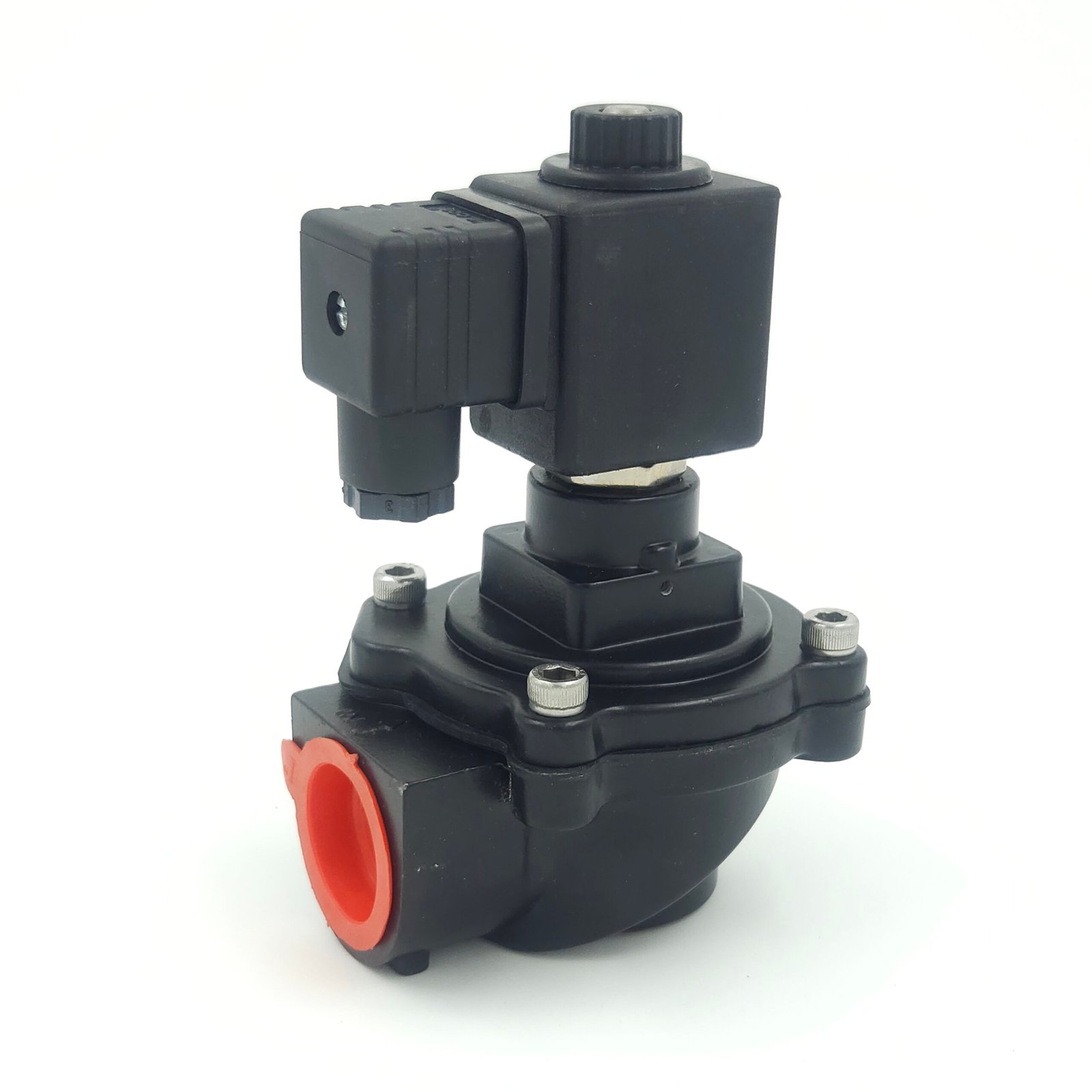

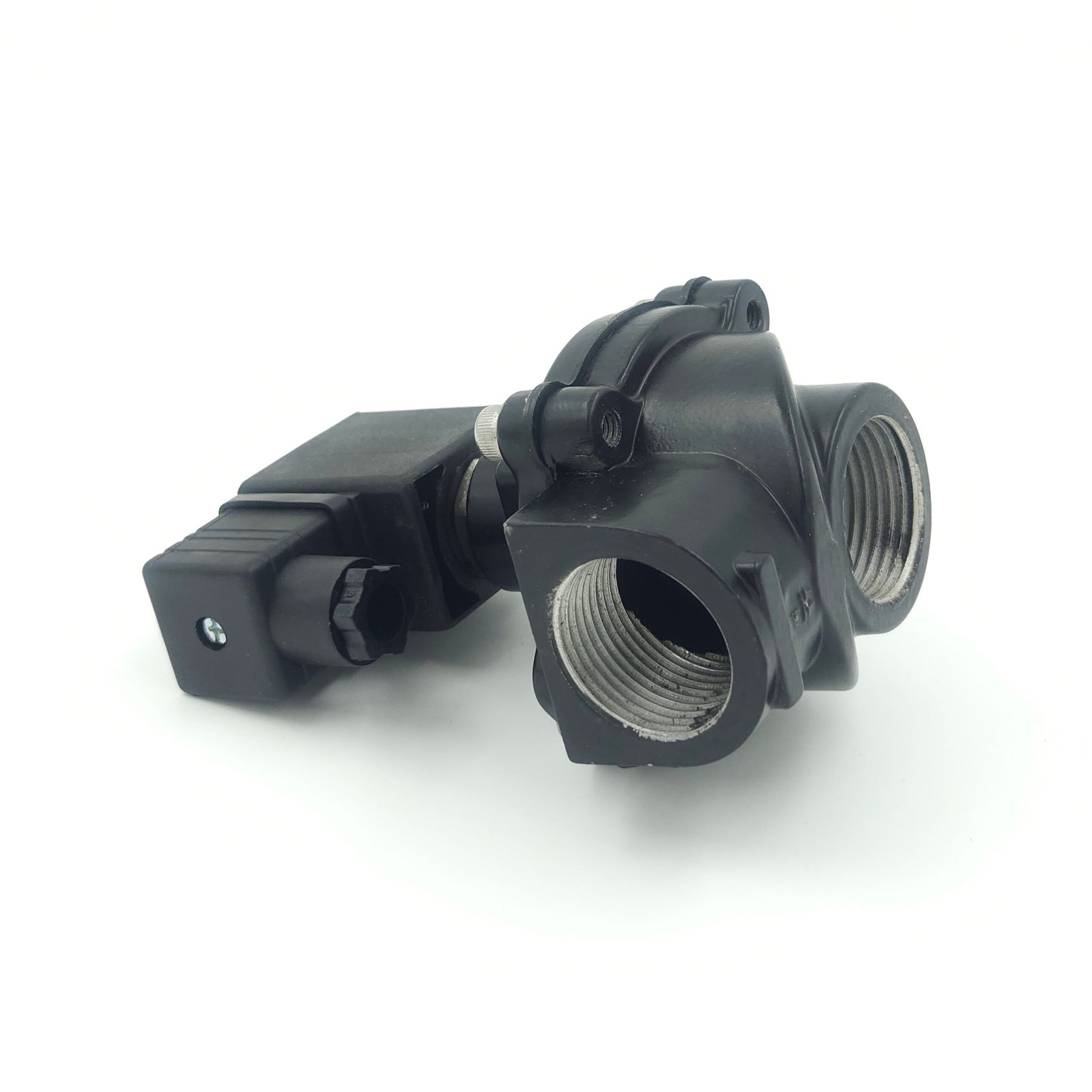

Phoenix-Dust Collector Valve (RMF Series)
Phoenix Dust Collector Valve "RMF Series" is designed to efficiently manage airflow in dust collection systems. This valve ensures optimal performance by allowing for precise control of air and dust separation, enhancing the effectiveness of dust extraction processes.
This dust collector valve is used for controlling airflow in dust extraction systems, facilitating effective dust management in industrial settings, ensuring optimal performance in filtration processes, and supporting efficient operation in various pneumatic applications.
| Type | RMF (High Flow Type) |
| Material | Aluminium |
| Coil Material | Copper |
| Seals & Diaphragm Material | NBR Rubber |
| Working Pressure Range | 0.05-0.85 Mpa (0.5-8.5 bar) |
| Max. Pressure Resistance | 1.0 Mpa (10 bar) |
| Working Temperature | -15-85°C |
| Applicable Medium | Air |
Please select the item size (Qty – Pcs)
Description
Additional information
| Item |
MINI (Coil) – 220VAC ,MINI (Coil) – 24VDC ,MINI (Coil) – 110VAC ,MINI (Coil) – 12VDC ,MIDI (Coil) – 220VAC ,MIDI (Coil) – 24VDC ,MIDI (Coil) – 110VAC ,MIDI (Coil) – 12VDC ,BIG (Coil) – 220VAC ,BIG (Coil) – 24VDC ,BIG (Coil) – 110VAC ,DINMINI (Coil) – 220VAC ,DINMINI (Coil) – 24VDC ,DINMIDI (Coil) – 220VAC ,DINMIDI (Coil) – 24VDC ,MINIAL (Coil) – 220VAC ,MINIAL (Coil) – 24VDC ,MIDIAL (Coil) – 220VAC ,MIDIAL (Coil) – 24VDC ,MINIBC (Coil Cover) ,MIDIBC (Coil Cover) ,BIGBC (Coil Cover) ,2WD15 (Diaphragm) ,2WD20 (Diaphragm) ,2WD25 (Diaphragm) ,2WD32 (Diaphragm) ,2WD40 (Diaphragm) ,2WD50 (Diaphragm) |
|---|---|
| Brand |
Phoenix |
