Download Catalog| Item Code | Size (ID) (mm) | Size (ID) (inch) | Thickness (mm) | Working Pressure (bar) | Burst Pressure (bar) | Vacuum (MH2O) | Bending Radius (mm) | Std. Length (m) | Price (per m) |
|---|---|---|---|---|---|---|---|---|---|
| THPHAT38 | 38.0 | 1-1/2" | 4.5 | 5.0 | 16.0 | 8.5 | 141.0 | 40 | 680 |
| THPHAT50 | 50.0 | 2" | 5.5 | 5.0 | 16.0 | 8.0 | 180.0 | 30 | 960 |
| THPHAT64 | 64.0 | 2-1/2" | 7.0 | 4.0 | 14.0 | 7.0 | 234.0 | 20 | 1600 |
| THPHAT75 | 75.0 | 3" | 7.5 | 4.0 | 14.0 | 7.0 | 270.0 | 20 | 1925 |
| THPHAT100 | 100.0 | 4" | 8.0 | 4.0 | 12.0 | 7.0 | 348.0 | 15 | 2775 |
PVC Steel Wire Braided Thunder Hose (THCX) - Crox
₹80.00 – ₹335.00
PU Tube (PUCDC)
₹32.00 – ₹390.00
Food-Grade PVC Anti-Static Thunder Hose (THPHAT)
₹680.00 – ₹2,775.00
Phoenix Food-Grade Anti-Static Thunder Hose — safe, durable, and static-free for food, pharma, and industrial oil transfer.

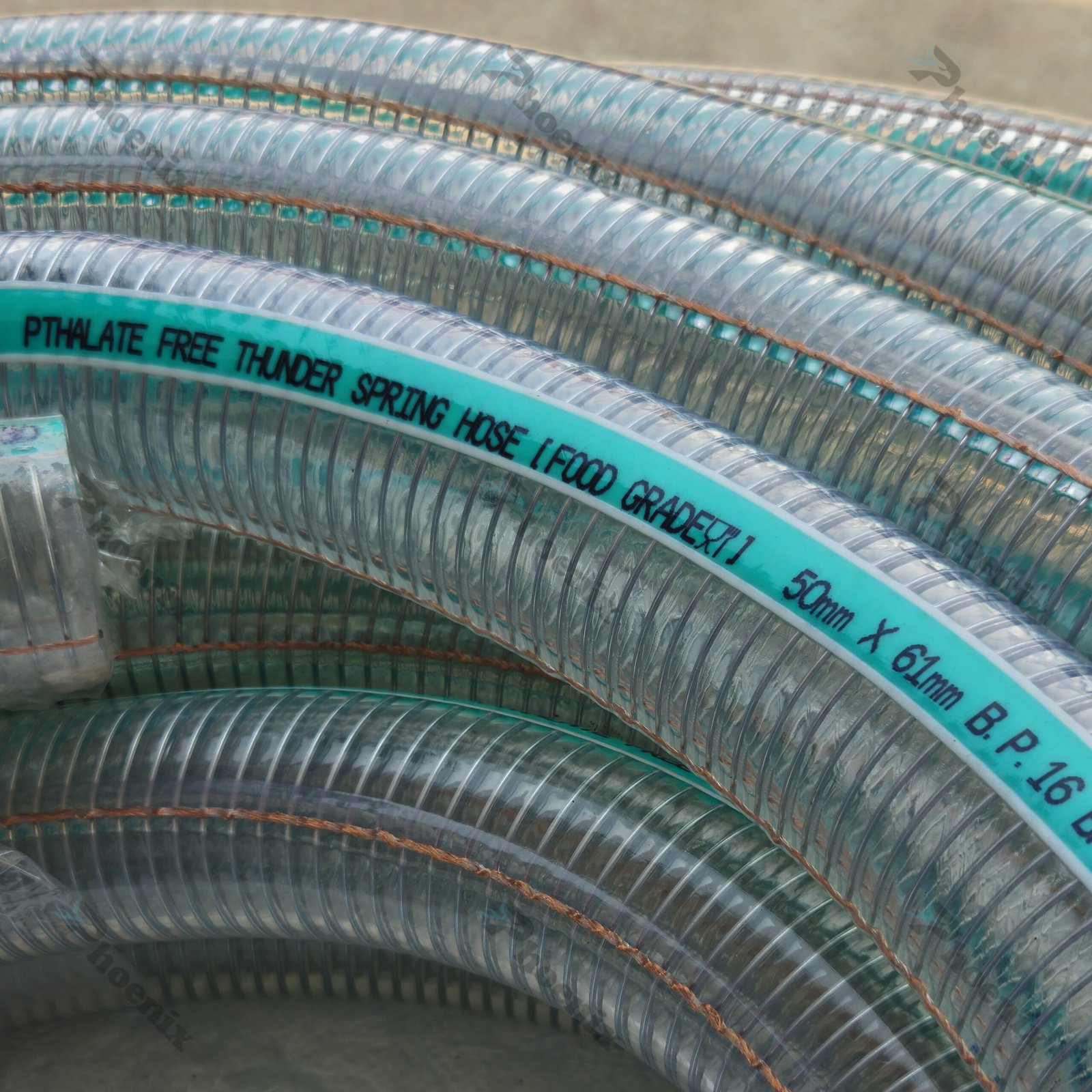

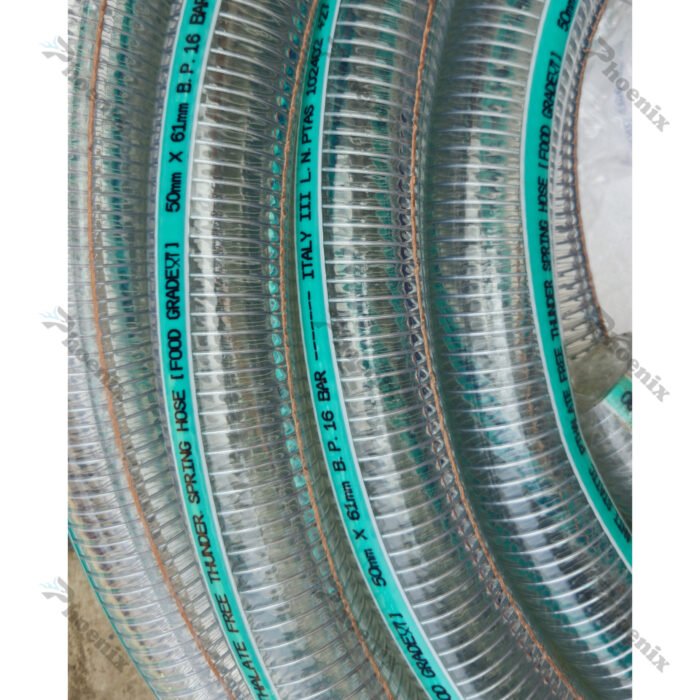

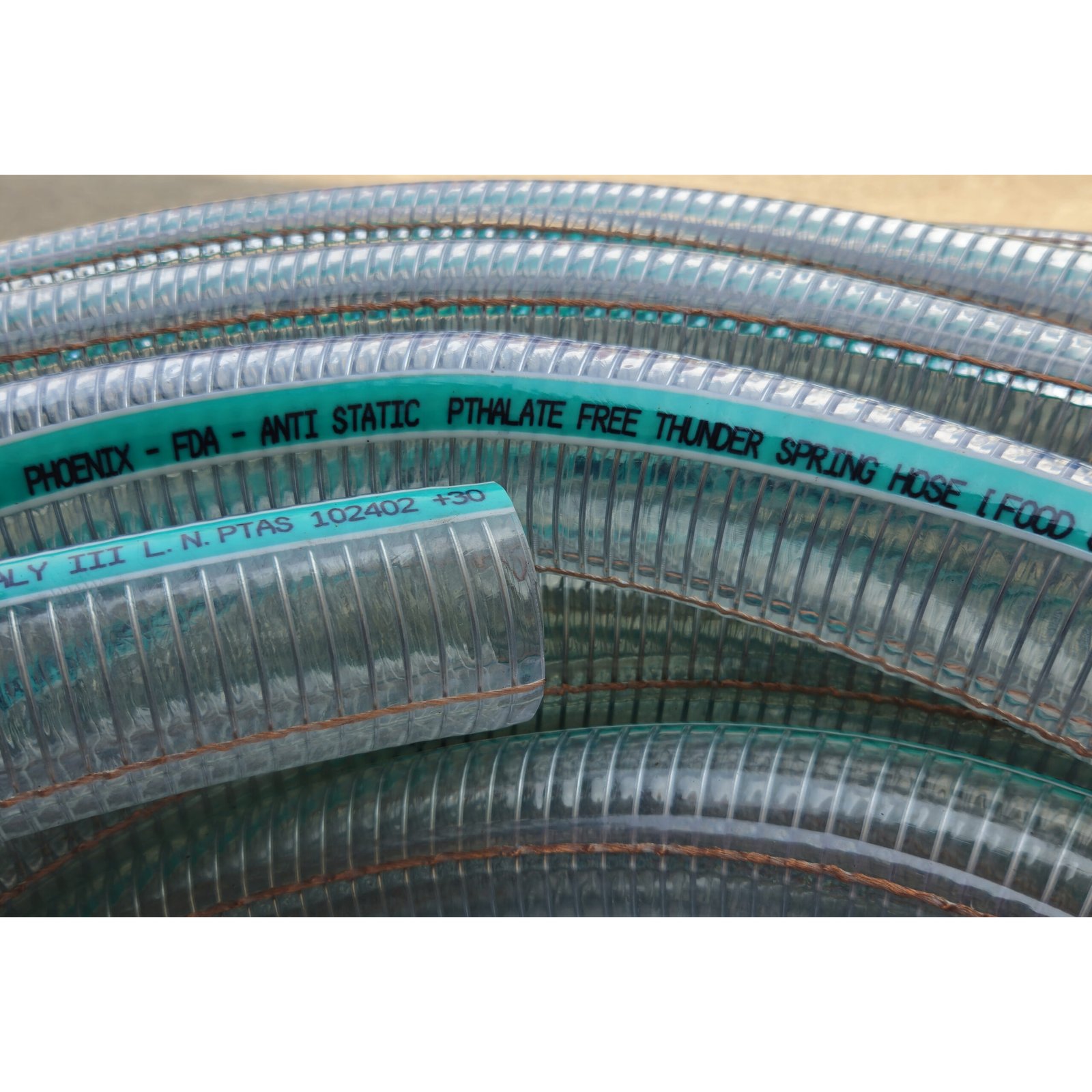

Food-Grade PVC Anti-Static Steel Wire Braided Thunder Hose (THPHAT)
- The Phoenix “THPHAT” Food-Grade Anti-Static PVC Thunder Hose is designed for high-performance suction and discharge where safety, cleanliness, and durability are critical.
- Made from non-toxic, phthalate-free food-grade PVC, this hose is reinforced with steel wire braiding for strength under both high pressure and vacuum.
- A built-in copper wire prevents static charge buildup, improving worker safety and ensuring smooth, uninterrupted fluid or material flow.
- Its transparent design allows easy inspection, while its oil resistance and temperature tolerance make it ideal for diverse industrial and food-grade uses.
- Food and Beverage Industry: Ideal for handling a wide range of food products, including oily foods and beverages, ensuring compliance with safety standards.
- Pharmaceutical Manufacturing: Suitable for material transfer including powders (due to static discharge prevention) in pharmaceutical settings where cleanliness and non-contamination are essential.
- Industrial Oil Transfer: Used for transferring various types of industrial mechanical oils.
- Pressure and Vacuum / Suction Feed Applications: Effective in situations requiring robust resistance to pressure and vacuum without collapsing.
- Flammable Materials Transfer: Can be used to transfer flammable materials in explosive environments
- Agriculture: Perfect for handling grain in agricultural setting preventing static buildup
- Food-Grade Compliance: Made from non-toxic, FDA-compliant materials, ensuring safe use in food and beverage applications.
- Anti-Static: Can be safely used in applications where static charge build-up is a concern
- Steel Wire Reinforcement: Provides enhanced strength and durability, capable of withstanding high pressure and vacuum conditions.
- Oil Resistance: Strong resistance to oils, making it suitable for oily foods and industrial oils.
- Transparency: Allows for easy visual inspection of the fluid flow within the hose.
- Temperature Resilience: Performs reliably across a range of temperatures.
| Type | THPHAT |
| Hose Material | Soft Food-Grade PVC Compound |
| Reinforcement | Steel Helix with Anti-Static Copper Wire |
| Available Diameters | ⌀ 1-1/2 inch - ⌀ 4 inch (⌀ 38mm - ⌀ 100mm) |
| Thickness | 4.5-8 mm |
| Standard Length | 15-40 meters |
| Colour | Transparent |
| Working Pressure | 4-5bar (Depending on diameter) |
| Burst Pressure | 12-16 bar (Depending on diameter) |
| Temperature Range | -5°C to +65°C |
| Compliances | FDA 21 CFR 175.300 - Food-Grade |
| REACH & RoHS Compliant | |
| Food Sanitation Act for Milk and Milk Products |
