Name: Food-Grade PU Duct Hose | Durable & Flexible
Availability: InStock

PU Duct Hose with PVC Wire (PUPVC)

₹650.00 – ₹3,250.00

Lightweight food-grade PU duct hose with PVC wire helix for industrial ventilation, material handling, and food processing applications.

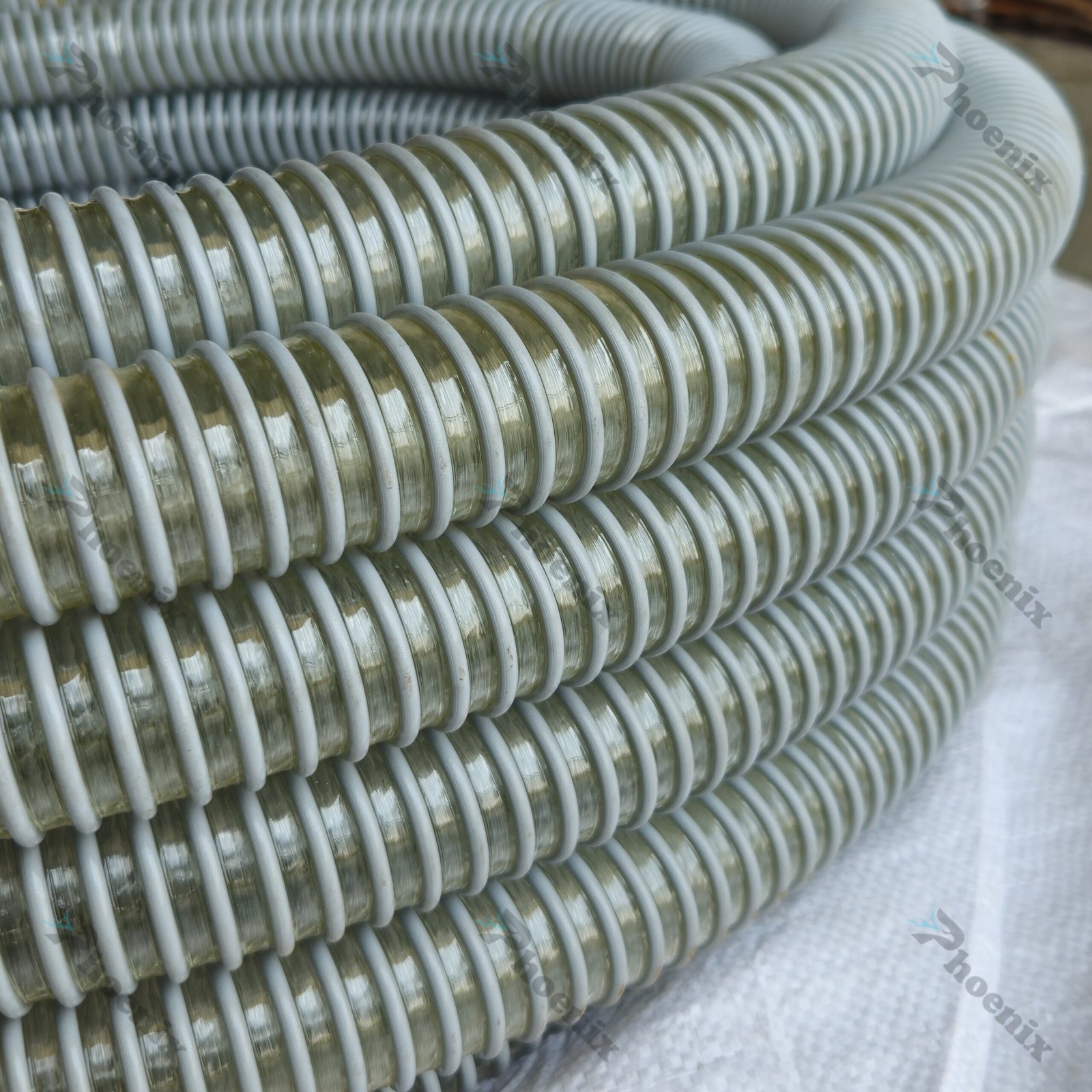

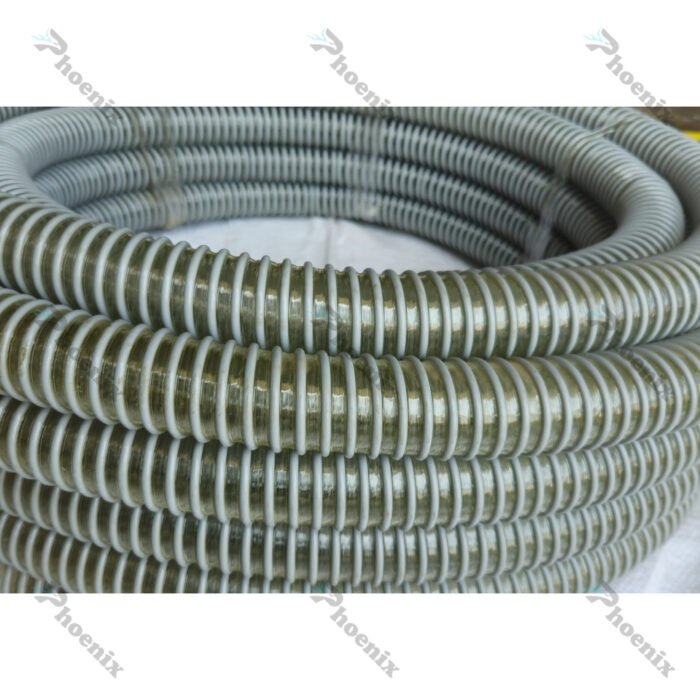

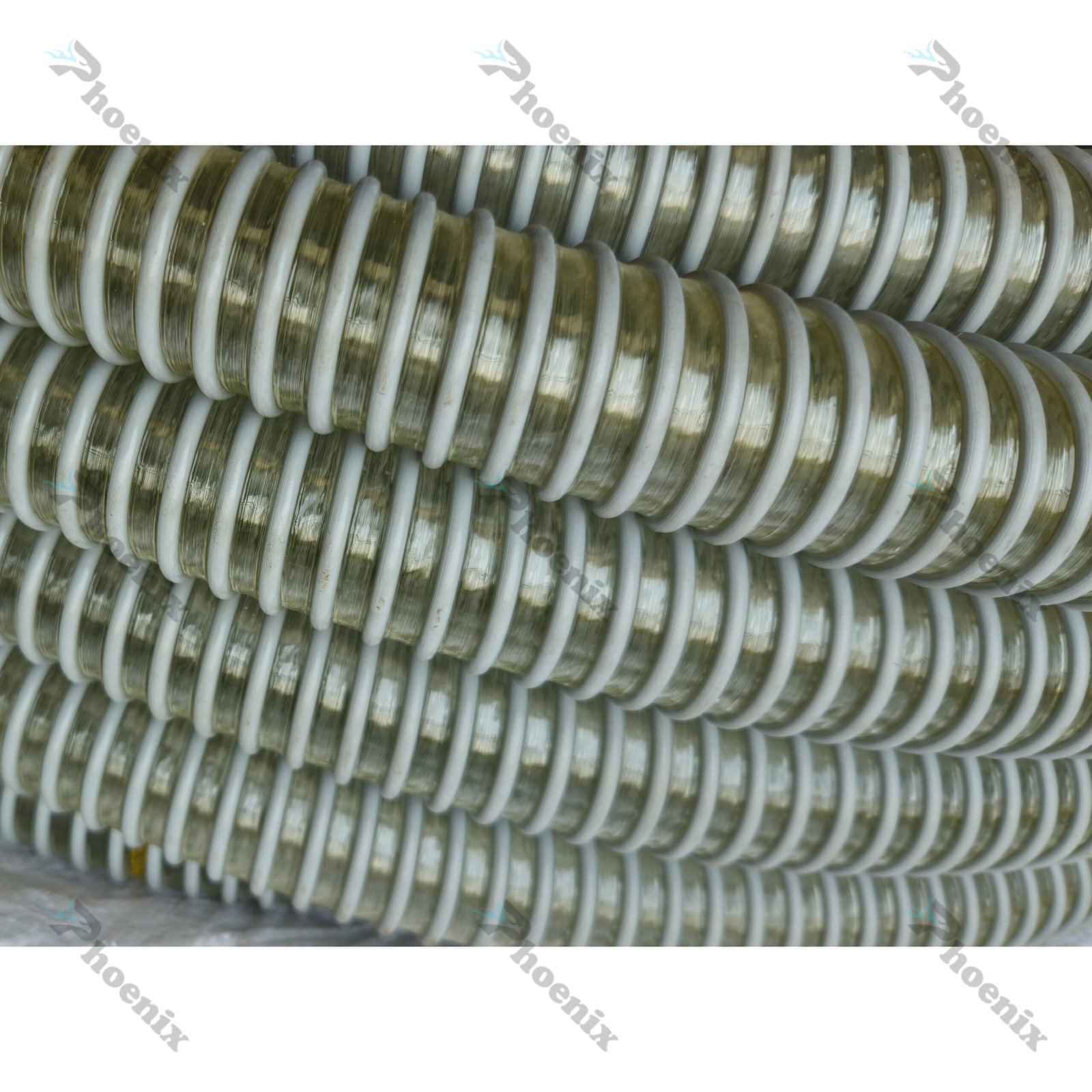

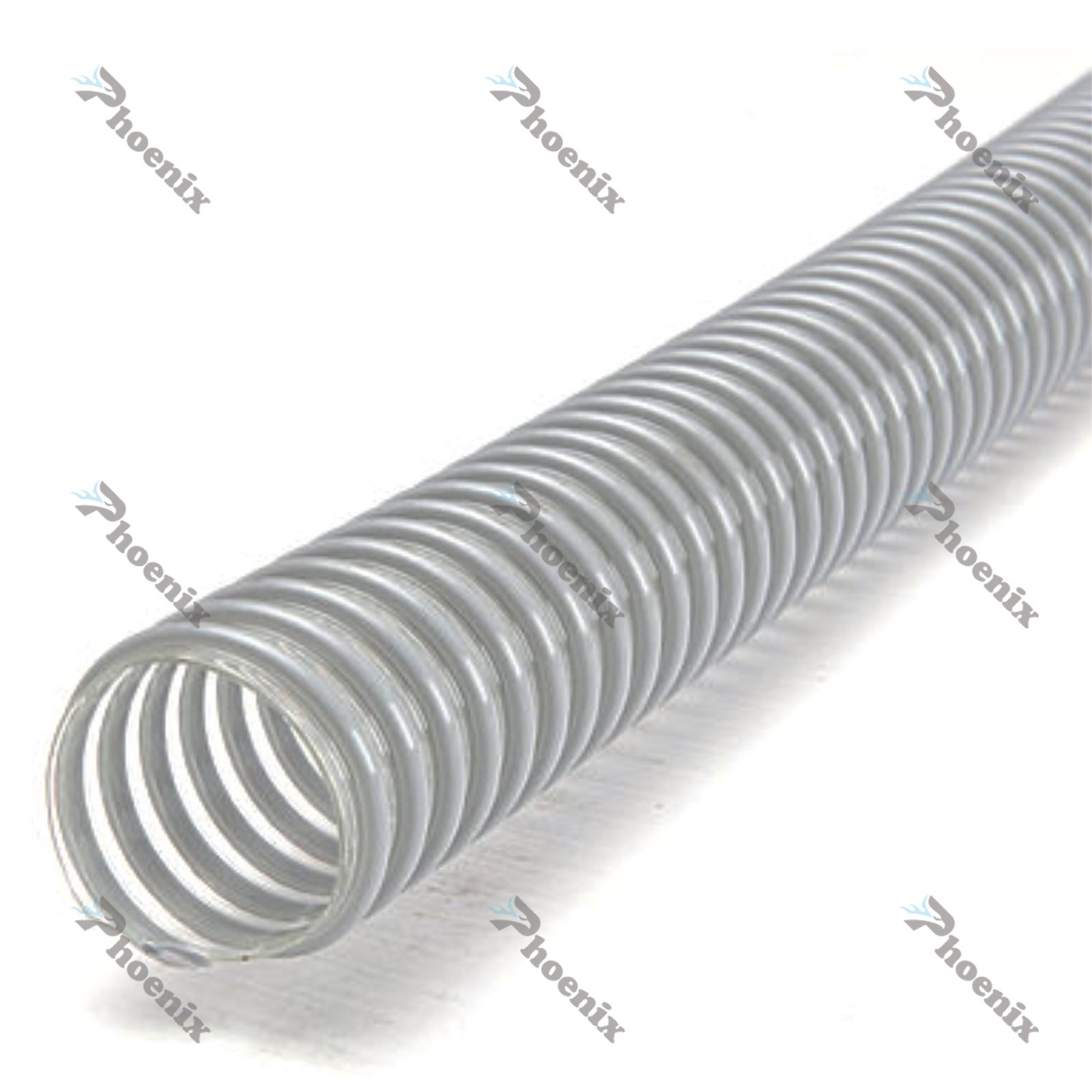

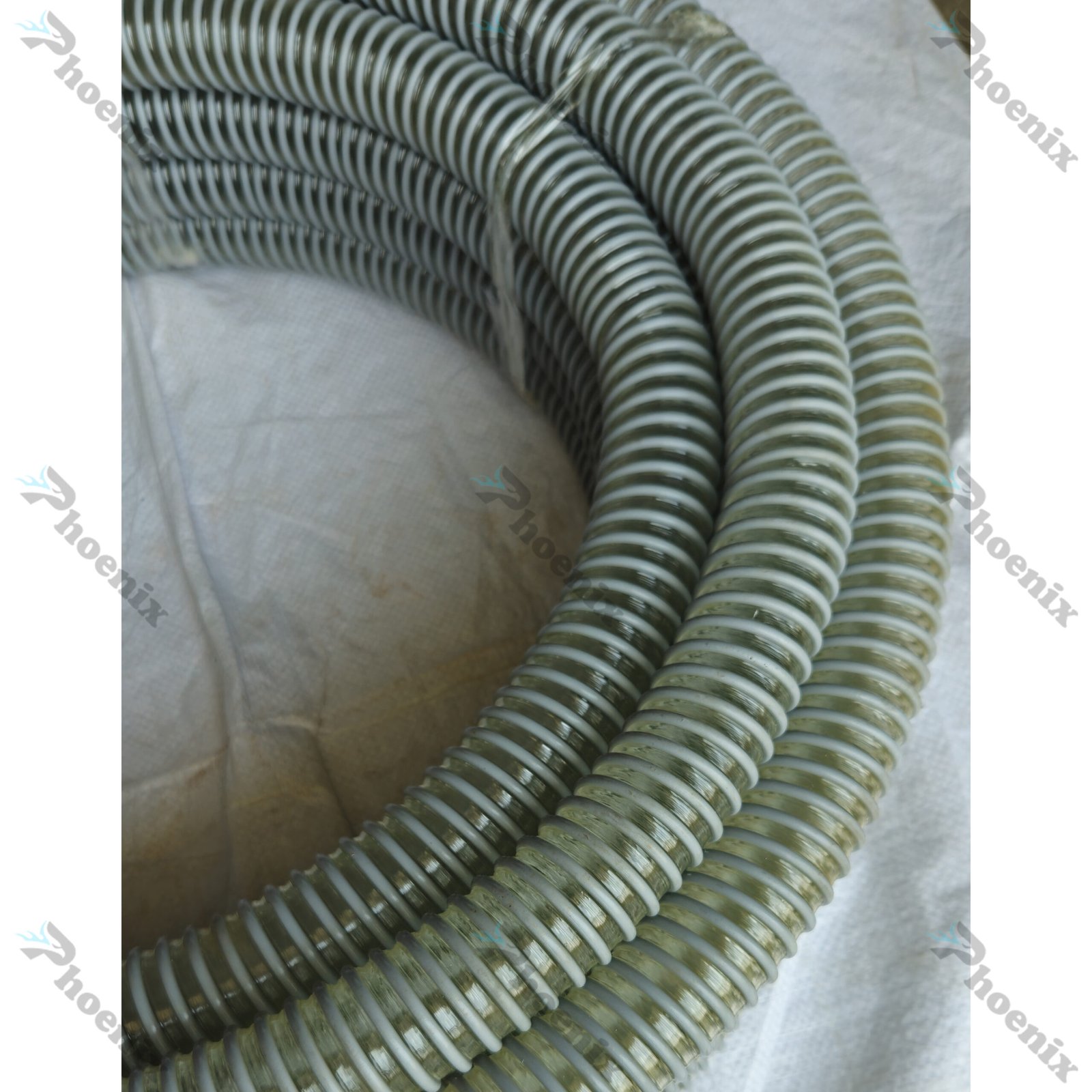

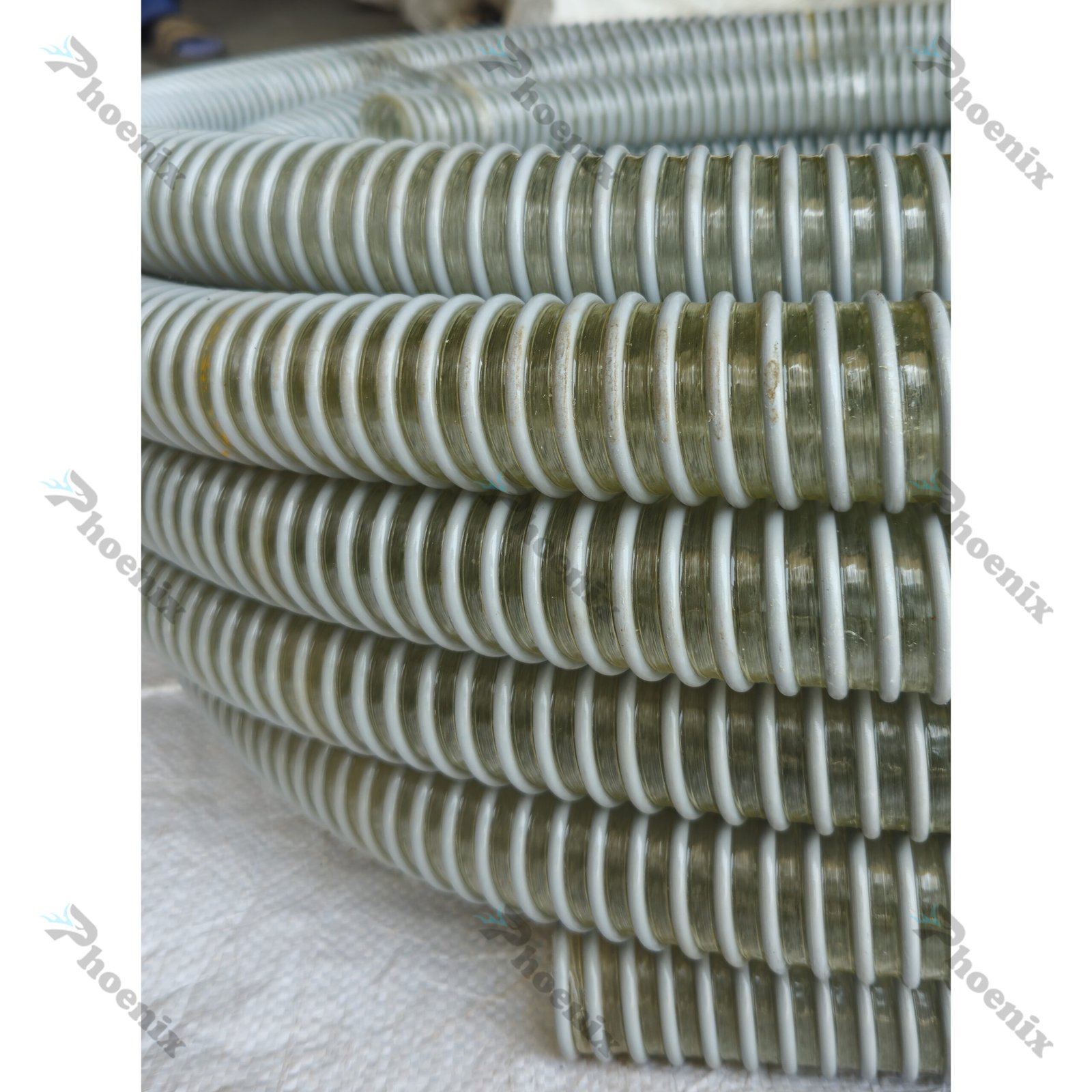

“PUPVC” Phoenix Polyurethane Duct Hose with PVC Wire Helix is a lightweight and flexible polyurethane ducting hose with a PVC helix.
It has excellent flexibility and a smooth interior surface for efficient flow.
“PUPVC” is certified food grade according to EC 1935/2004 and EU 10/2011 – Class A/B/C/E, making it suitable for food contact applications.
“PUPVC” is resistant to hydrolysis and microbes, ensuring durability in humid conditions.

Industrial Ventilation & Dust Collection: Ideal for use in woodworking shops, metalworking, and other manufacturing processes that handle materials such as wood chips, sawdust, and fine dust.
Material Handling: Suitable for conveying granular materials, powders, and abrasive substances in industries like agriculture (e.g., grain transfer) and pharmaceuticals (e.g., powder handling).
Fume and Smoke Extraction: Efficiently extracts fumes and smoke in welding shops, metalworking facilities, and chemical processing plants.
HVAC Systems: Can be used for air circulation and dust control in heating, ventilation, and air conditioning systems.
CNC Machinery: Perfect for the extraction of dust and debris generated during machining processes, ensuring clean and safe operation
Food & Beverage Industry: Flexible food processing hose suitable for conveying dry food products and other food-related materials in compliance with food-grade standards.

Very Smooth Bore: Ensures efficient flow and reduces pressure drop.
Durability: This abrasion-resistant PU ducting offers high resistance to punctures and wear.
Food-Grade: Safe for use in food contact applications within the food, beverage, and pharmaceutical industries.
Resistant to Hydrolysis and Microbes: Maintains integrity in humid and wet conditions, resisting microbial growth.
Temperature Resistance: Performs reliably across a wide range of temperatures.
Flexible and Lightweight: As a lightweight material handling hose, it is easy to handle and install, even in complex configurations.

Type	PUPVC
Hose Material	Food-grade TPU ether
Reinforcement	Rigid PVC Helix
Wall Thickness	0.5mm - 0.7mm
Available Diameters	⌀ 5/8 inch - ⌀ 4 inch
Standard Length	15-20 meters
Colour	Transparent
Temperature Range	-30°C to +80°C
Operating Pressure	0.8 - 1.5 bar (depending on diameter)
Compliances	Hydrolysis and microbe resistant
Compliances	Food-Grade - EC 1935/2004, EU 10/11 - Class A/B/C/E

Please select the item code (Qty – Meters)

Description

Item Code	Size (Tube ID) (mm)	Std. Roll (m)	Pressure (bar)	Wall Thickness	Weight (kg/m)	Vacuum (bar)	Price (per m)
PUPVC58	16	20	1.5	0.5 mm	0.100	0.6	650
PUPVC34	20	20	1.5	0.5 mm	0.140	0.6	650
PUPVC1	25	20	1.5	0.55 mm	0.160	0.6	675
PUPVC114	32	20	1.5	0.55 mm	0.210	0.6	825
PUPVC35	35	20	1.5	0.6 mm	-	0.5	825
PUPVC112	40	20	1.5	0.6 mm	0.260	0.5	1050
PUPVC2	51	20	1.0	0.6 mm	0.335	0.45	1400
PUPVC212	63	20	1.0	0.65 mm	0.425	0.3	2150
PUPVC3	76	20	1.0	0.7 mm	0.580	0.25	2400
PUPVC4	102	15	1.0	0.7 mm	0.845	0.16	3250
