Download Catalog| Size | Item Code | Tube OD (mm) | Thread Size (R) | Price (per pc) |
|---|---|---|---|---|
| 6mm x 1/8" | NRC0601 | 6 | R1/8 | 875 |
| 6mm x 1/4" | NRC0602 | 6 | R1/4 | 875 |
| 8mm x 1/8" | NRC0801 | 8 | R1/8 | 980 |
| 8mm x 1/4" | NRC0802 | 8 | R1/4 | 980 |
| 12mm x 1/4" | NRC1202 | 12 | R1/4 | 1470 |
| 12mm x 3/8" | NRC1203 | 12 | R3/8 | 1575 |
| 12mm x 1/2" | NRC1204 | 12 | R1/2 | 1645 |
Male Reducing Triple Branch (PKD)
Price range: ₹266.00 through ₹304.00
High-Speed Rotary Elbow (NRL)
Price range: ₹1,080.00 through ₹1,980.00
High-Speed Rotary Straight Connector (NRC)
Price range: ₹875.00 through ₹1,645.00

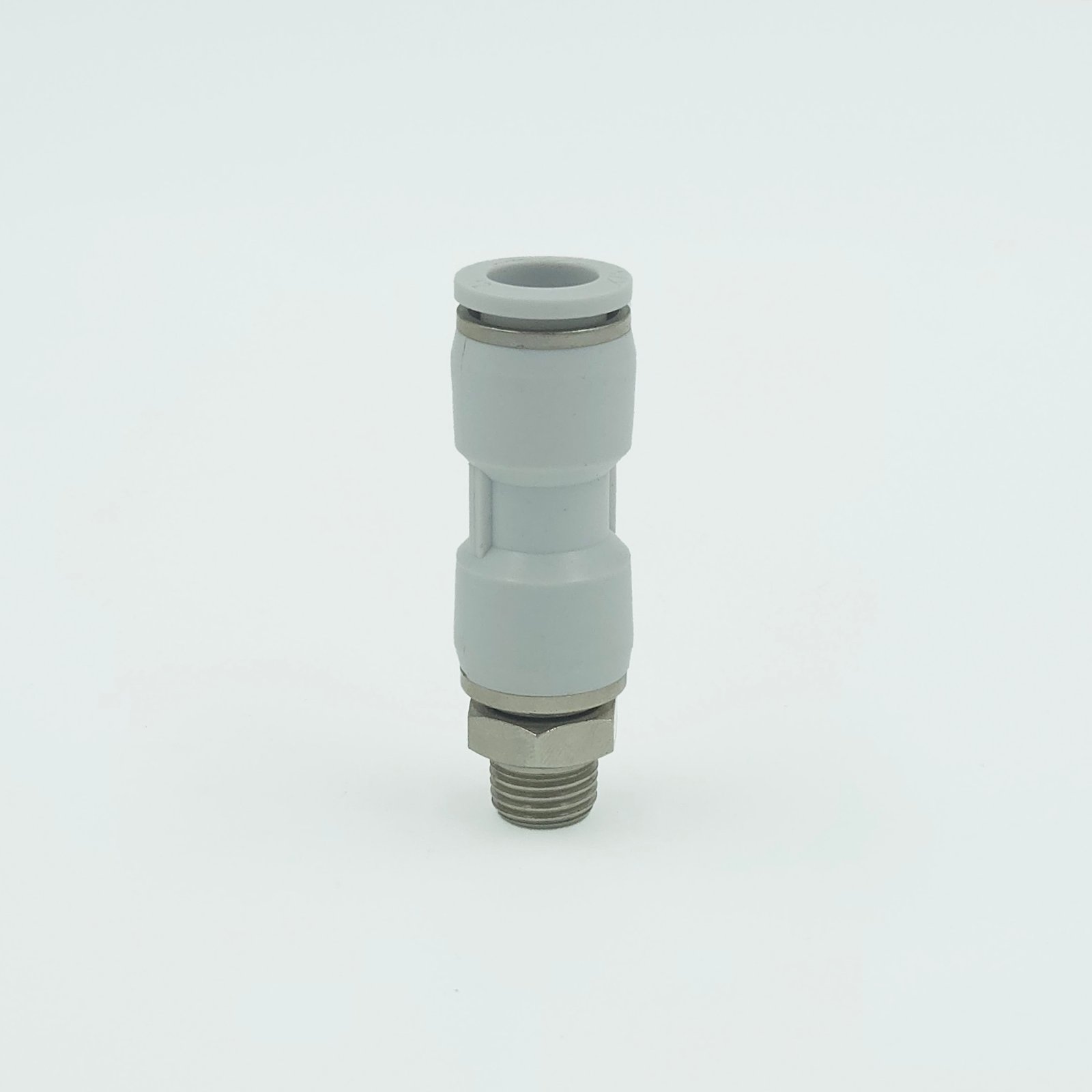

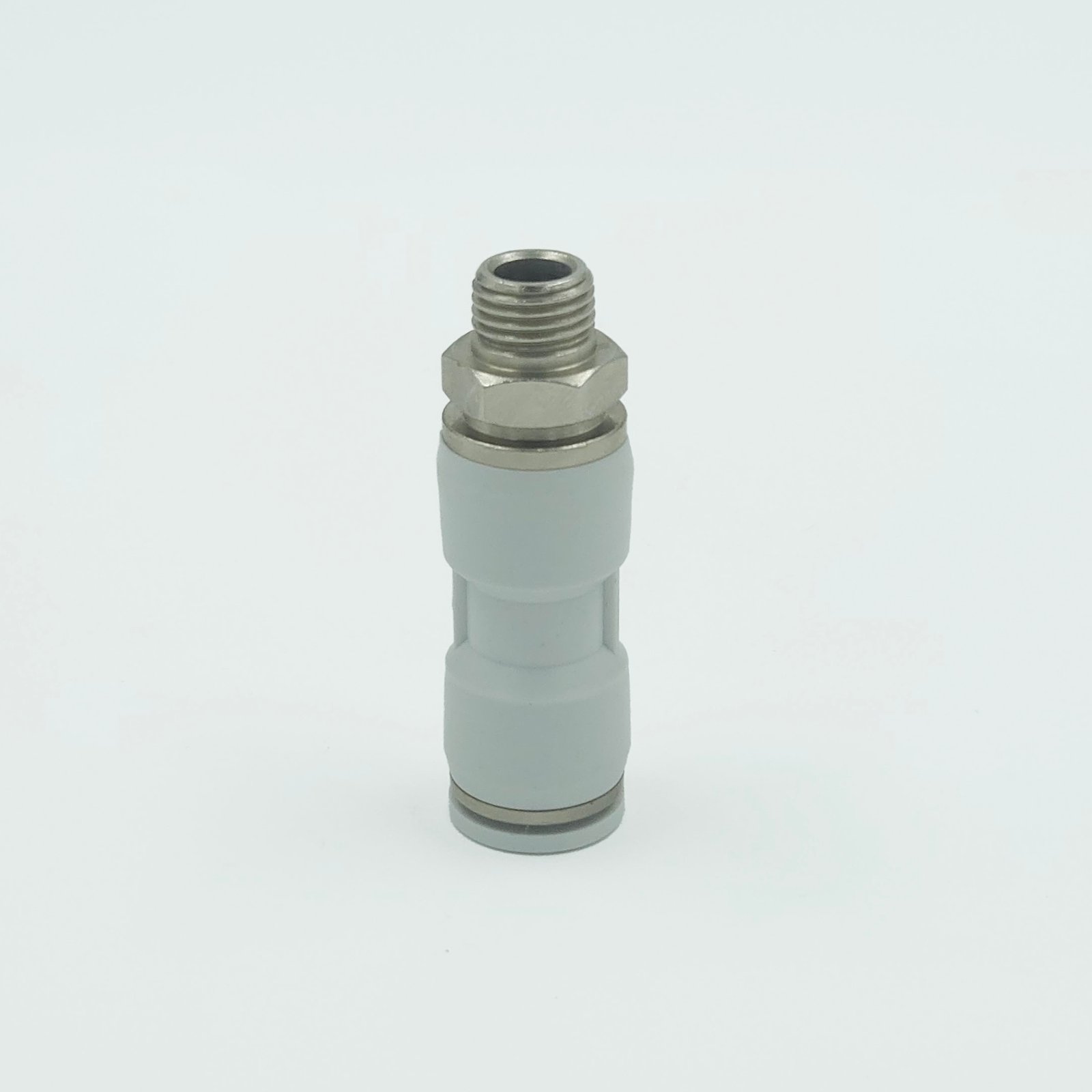

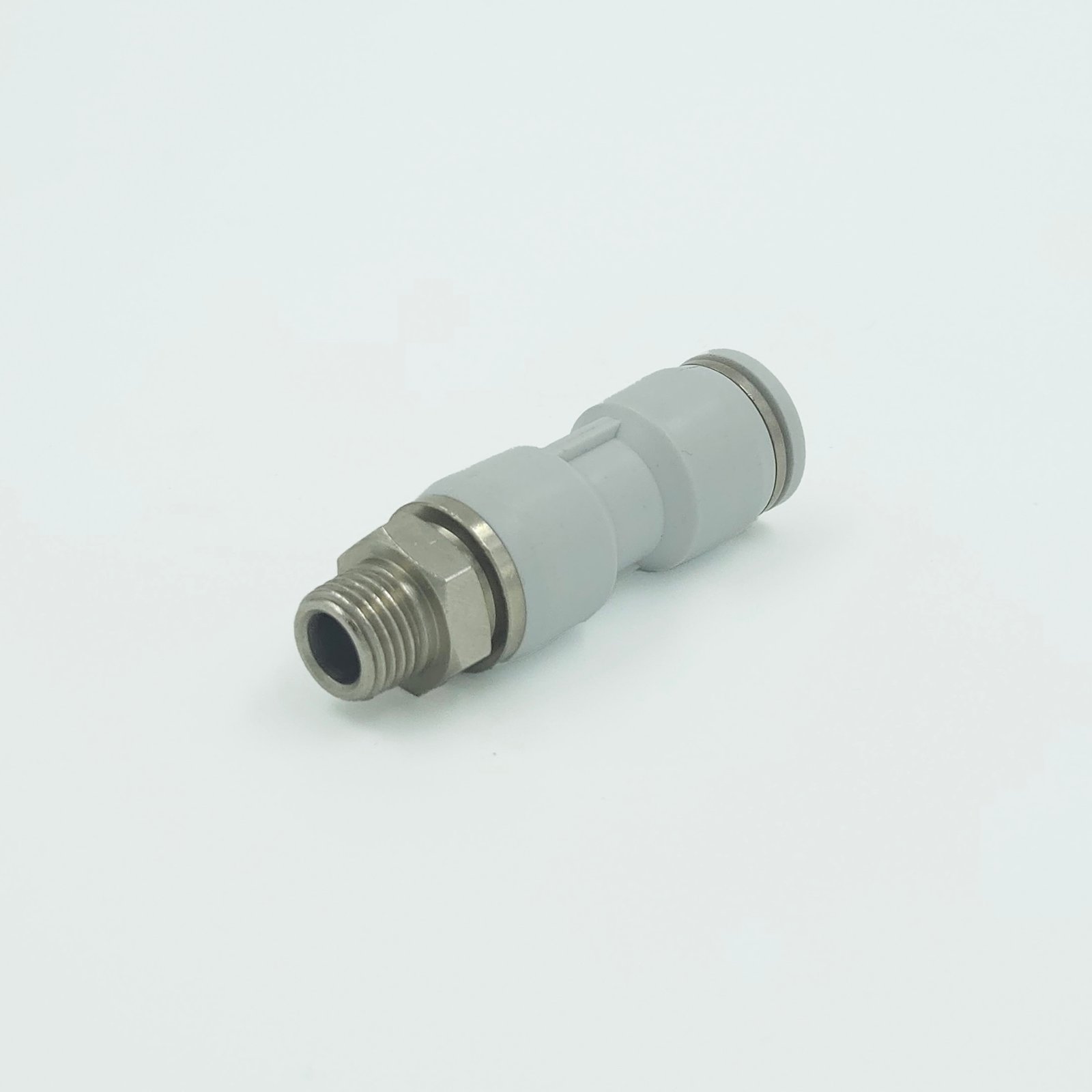

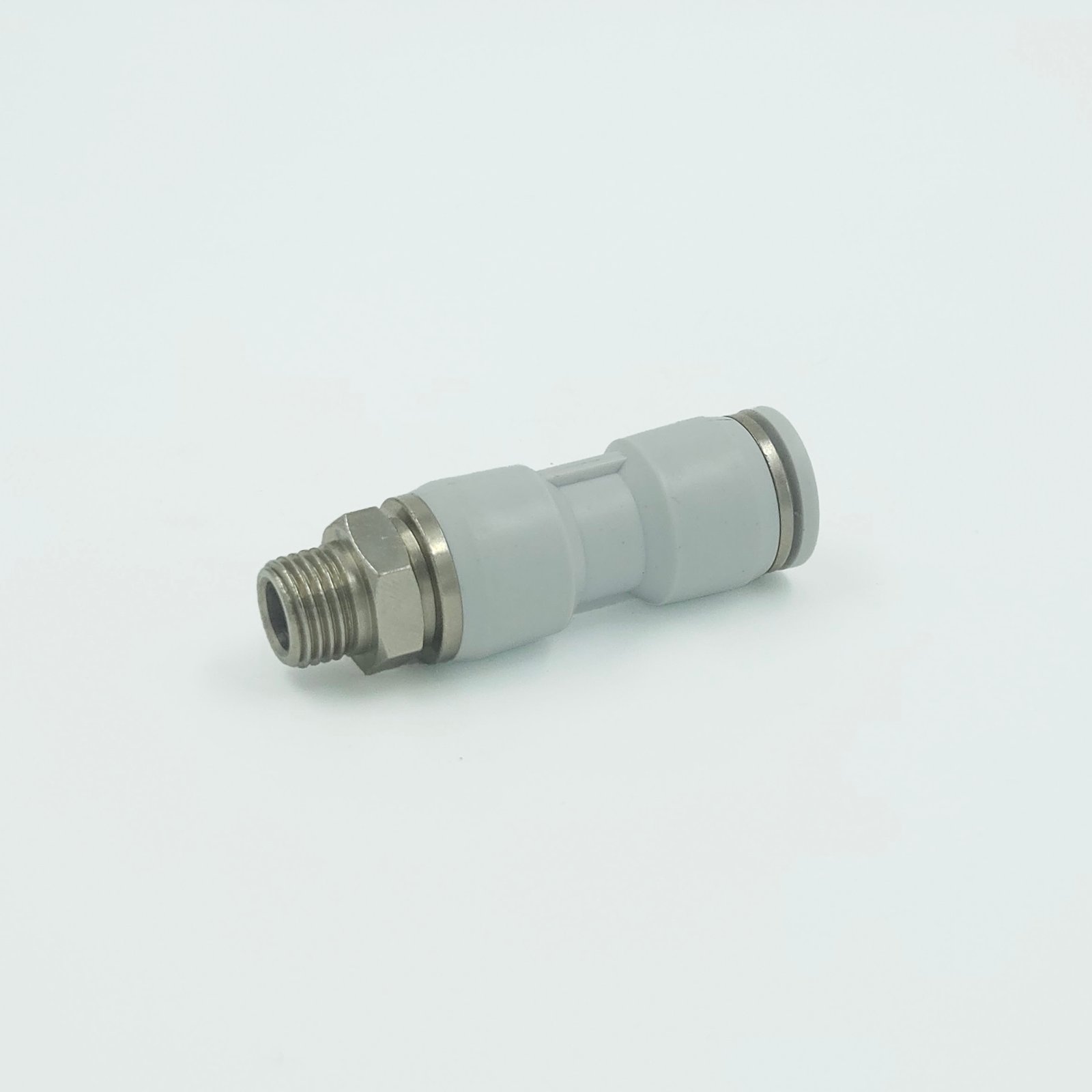

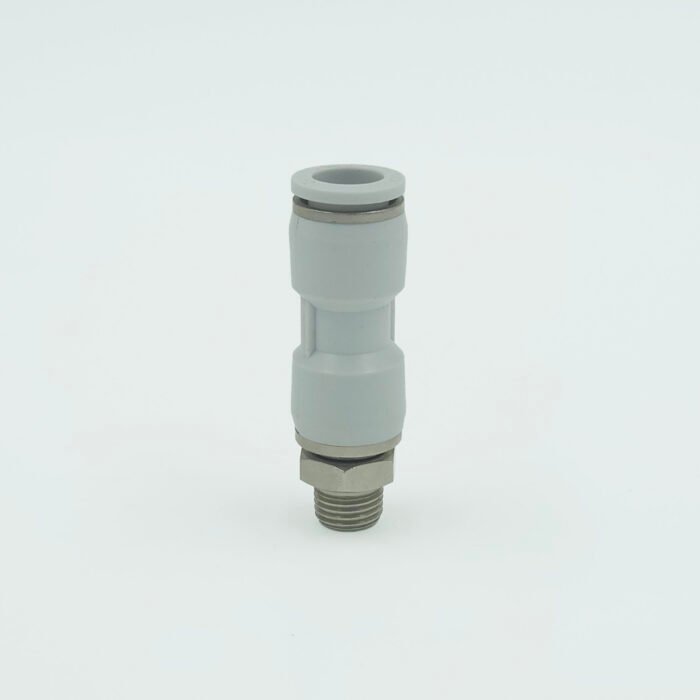

Phoenix High-Speed Rotary Straight Connector (NRC)
Phoenix One-Touch PU High-Speed Rotary Fittings "NR Series" are designed for efficient and quick connections in rotating applications. Their innovative design allows for seamless airflow while minimizing pressure loss, making them ideal for dynamic environments.
These fittings are used to facilitate rotary motion in pneumatic tools, enable quick connections in automated machinery, maintain airflow in high-speed applications, support flexible routing in confined spaces, and enhance performance in robotic systems.
| Type | NRC |
| Applicable Fluid Type | Air (No other type of gas or liquid) |
| Working Pressure Range | 0-1.0 Mpa (0-10 bar) |
| Working Temperature | 0-60°C |
| Operating Speed | Upto 1200 rpm |
| Applicable Tubing | PU Tube, Nylon Tube |
Please select the item size (Qty – Pcs)
Description
Additional information
| Item SIze |
6mm x 1/8" ,6mm x 1/4" ,8mm x 1/8" ,8mm x 1/4" ,12mm x 1/4" ,12mm x 3/8" ,12mm x 1/2" |
|---|---|
| Brand |
Phoenix |
