Name: PP Camlock Couplings (CPP) - Jyoti Sales Corporation
Availability: InStock

PP Camlock Couplings (CPP)

Description

Phoenix PP Camlock Couplings (CPP Series) are lightweight, corrosion-resistant cam-and-groove fittings made from industrial-grade polypropylene. Available in all standard types (A, B, C, D, E, F), these couplings provide a non-metallic quick-connect option for transferring water, chemicals, and fertilizers in non-pressure or low-pressure systems.

Applications

These camlock couplings are best suited for non-metallic, corrosion sensitive setups –

Agricultural chemical and fertilizer dosing
Waste and wastewater pipelines
Acidic or corrosive chemical transfer
Irrigation and suction lines
Liquid handling

Physical and Technical Specifications

Parameter	Specification
Clamp Type	PP Camlock Coupling (Part A, B, C, D, E and F)
Brand	Phoenix
Material	Polypropylene (PP)
Coupling Mechanism	Cam & Groove with Locking Arms
Thread Types (Part A, B, D, F)	BSP
Hose Connection (Part C, E)	Hose Tail
Pressure Rating	Upto 100 psi
Temperature Resistance	Upto 70C
Corrosion Resistance	Excellent (for acids, alkalis, salt water etc.)
Sealing	EPDM Seals

Download Catalog

Please select the item size (Qty – Pcs)

Part A : Adapter Female Thread (CPPA)

Item Code	Size	Price (per pc)
CPP12A	1/2"	100
CPP34A	3/4"	100
CPP1A	1"	100
CPP114A	1-1/4"	145
CPP112A	1-1/2"	170
CPP2A	2"	270
CPP212A	2-1/2"	340
CPP3A	3"	410
CPP4A	4"	1030

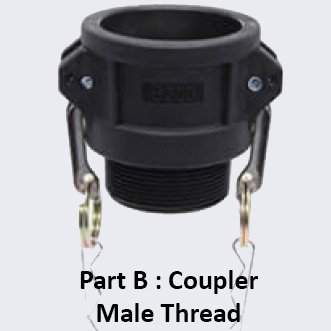

Part B : Coupler Male Thread (CPPB)

Item Code	Size	Price (per pc)
CPP12B	1/2"	355
CPP34B	3/4"	355
CPP1B	1"	355
CPP114B	1-1/4"	520
CPP112B	1-1/2"	550
CPP2B	2"	610
CPP212B	2-1/2"	710
CPP3B	3"	790
CPP4B	4"	1610

Part C : Coupler Hose End (CPPC)

Item Code	Size	Price (per pc)
CPP12C	1/2"	355
CPP34C	3/4"	355
CPP1C	1"	355
CPP114C	1-1/4"	530
CPP112C	1-1/2"	535
CPP2C	2"	615
CPP212C	2-1/2"	710
CPP3C	3"	850
CPP4C	4"	1730

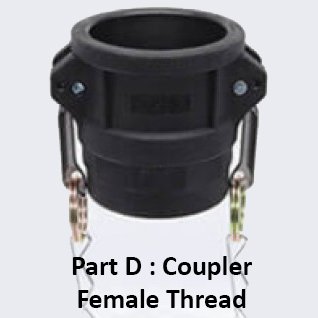

Part D : Coupler Female Thread (CPPD)

Item Code	Size	Price (per pc)
CPP12D	1/2"	340
CPP34D	3/4"	340
CPP1D	1"	340
CPP114D	1-1/4"	510
CPP112D	1-1/2"	540
CPP2D	2"	600
CPP212D	2-1/2"	630
CPP3D	3"	770
CPP4D	4"	1670

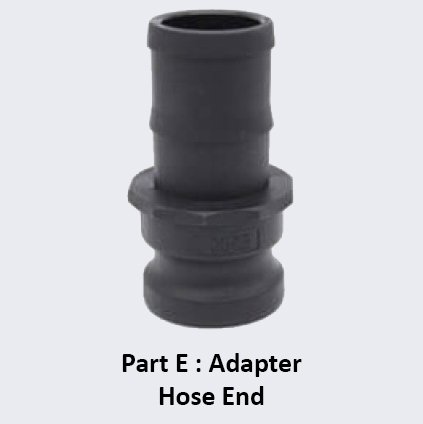

Part E : Adapter Hose End (CPPE)

Item Code	Size	Price (per pc)
CPP12E	1/2"	115
CPP34E	3/4"	115
CPP1E	1"	115
CPP114E	1-1/4"	145
CPP112E	1-1/2"	265
CPP2E	2"	315
CPP212E	2-1/2"	410
CPP3E	3"	565
CPP4E	4"	1275

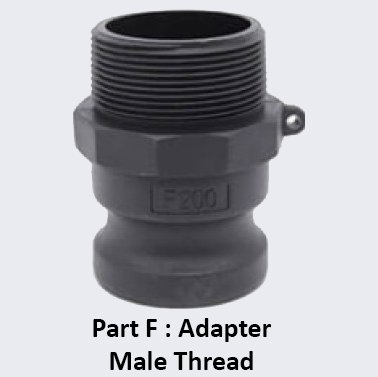

Part F : Adapter Male Thread (CPPF)

Item Code	Size	Price (per pc)
CPP12F	1/2"	110
CPP34F	3/4"	110
CPP1F	1"	110
CPP114F	1-1/4"	150
CPP112F	1-1/2"	165
CPP2F	2"	295
CPP212F	2-1/2"	375
CPP3F	3"	595
CPP4F	4"	1195

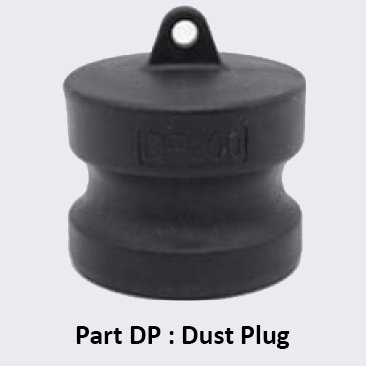

DP - Dust Plug (CPPDP)

Item Code	Size	Price (per pc)
CPP12DP	1/2"	340
CPP34DP	3/4"	340
CPP1DP	1"	340
CPP114DP	1-1/4"	495
CPP112DP	1-1/2"	530
CPP2DP	2"	550
CPP212DP	2-1/2"	670
CPP3DP	3"	750
CPP4DP	4"	1525

DC - Dust Cap (CPPDC)

Item Code	Size	Price (per pc)
CPP12DC	1/2"	90
CPP34DC	3/4"	90
CPP1DC	1"	90
CPP114DC	1-1/4"	130
CPP112DC	1-1/2"	145
CPP2DC	2"	165
CPP212DC	2-1/2"	270
CPP3DC	3"	370
CPP4DC	4"	800

Part

Part A : Adapter Female Thread

Part B : Coupler Male Thread

Part C : Coupler Hose End

Part D : Coupler Female Thread

Part E : Adapter Hose End

Part F : Adapter Male Thread

DC : Dust Cap

DP : Dust Plug
