Download Catalog| Item Code | Size (ID) (mm) | Size (ID) (inch) | Size (OD) (mm) | Working Pressure (bar) | Burst Pressure (bar) | Vacuum (MH2O) | Std. Length (m) | Price (per m) |
|---|---|---|---|---|---|---|---|---|
| THFT12 | 12.0 | 1/2" | 18 | 5 | 16 | 9.5 | 100 | 75 |
| THFT15 | 15.0 | 5/8" | 21 | 5 | 16 | 9.5 | 50 | 105 |
| THFT19 | 19.0 | 3/4" | 26 | 5 | 16 | 9.5 | 50 | 110 |
| THFT25 | 25.0 | 1" | 32 | 5 | 16 | 8.5 | 50 | 150 |
| THFT32 | 32.0 | 1-1/4" | 40 | 4 | 12 | 8.5 | 50 | 215 |
| THFT38 | 38.0 | 1-1/2" | 47 | 4 | 12 | 8.5 | 40 | 285 |
| THFT50 | 50.0 | 2" | 61 | 4 | 12 | 8.0 | 30 | 375 |
| THFT60 | 60.0 | — | 71 | 3 | 10 | 8.0 | 20 | 625 |
| THFT64 | 64.0 | 2-1/2" | 74 | 3 | 10 | 8.0 | 20 | 650 |
| THFT75 | 75.0 | 3" | 90 | 3 | 10 | 7.0 | 20 | 825 |
| THFT100 | 100.0 | 4" | 114 | 3 | 10 | 7.0 | 15 | 1250 |
| THFT125 | 125.0 | 5" | 141 | 3 | 10 | 5.0 | 15 | 2200 |
| THFT150 | 150.0 | 6" | 164 | 3 | 10 | 4.0 | 15 | 2650 |
| THFT200 | 200.0 | 8" | 216 | 3 | 10 | 4.0 | 10 | 7200 |
Back to products
PVC Steel Wire Braided Thunder Hose (THCX) - Crox
₹80.00 – ₹335.00
PVC Steel Wire Braided Thunder Hose (THFT)
₹75.00 – ₹7,200.00
Heavy-duty Steel Wire Braided Thunder Hose for suction and discharge, offering transparency, flexibility, and crush resistance.

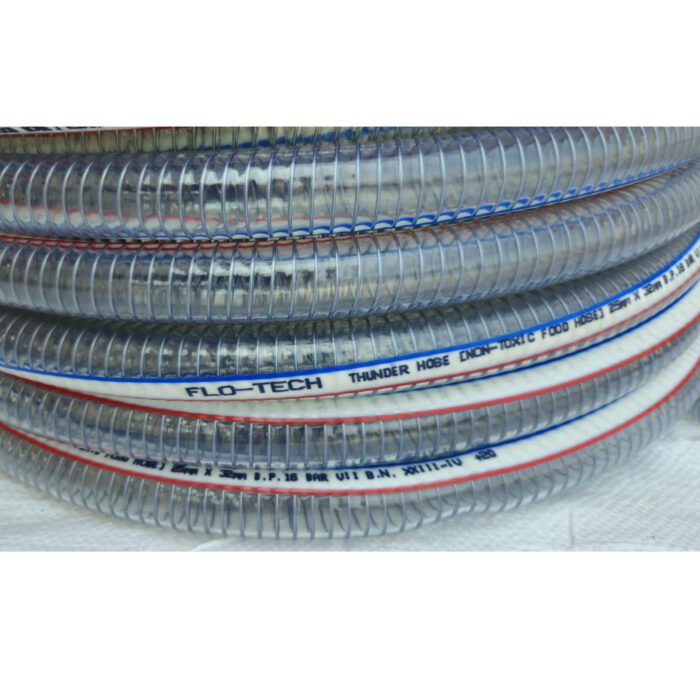

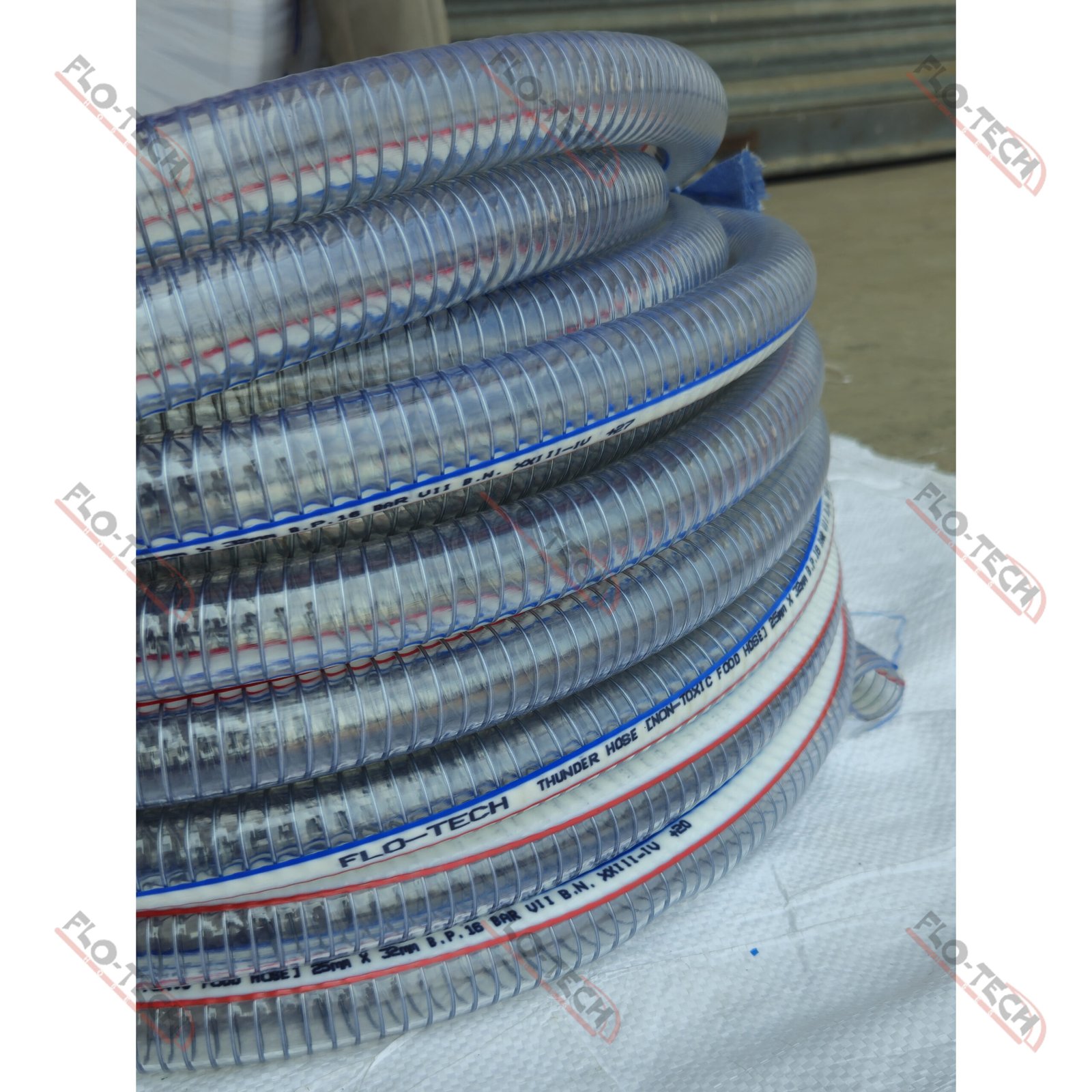

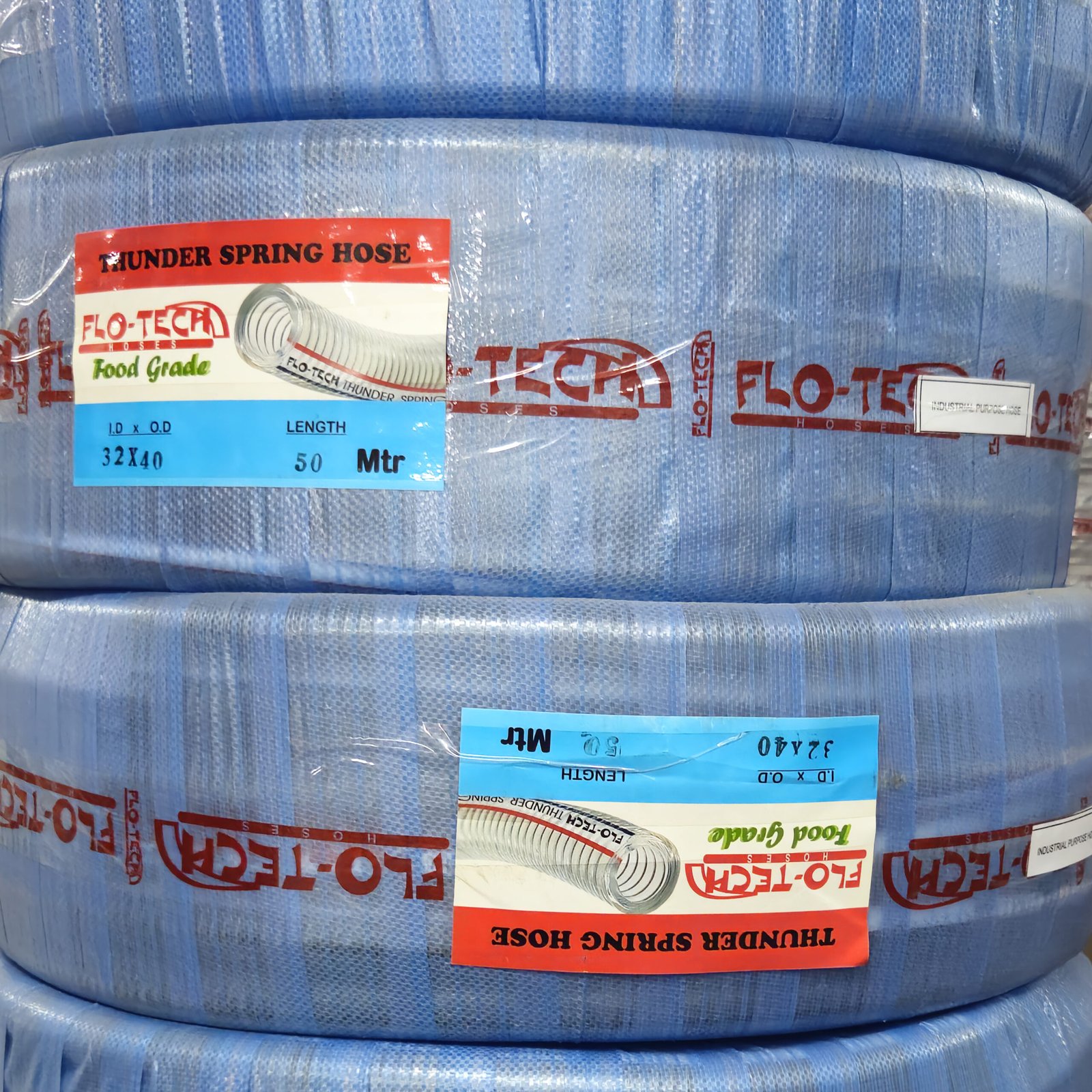

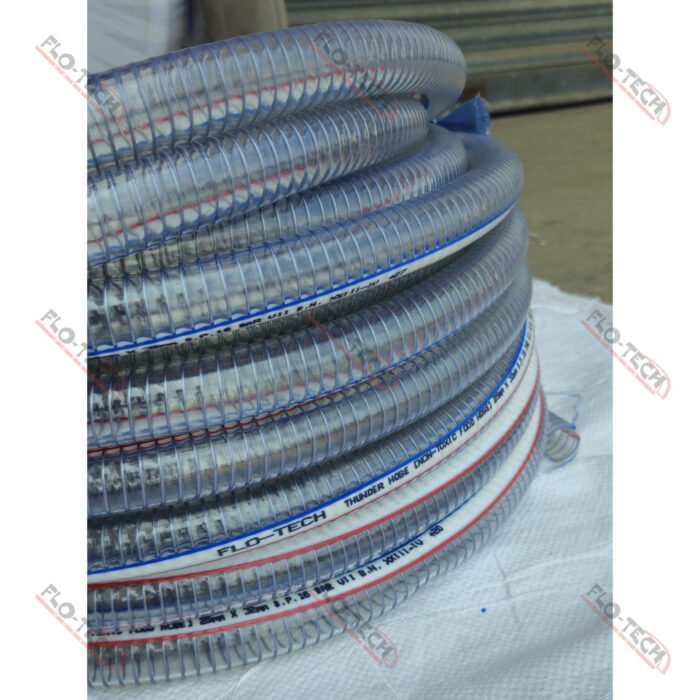

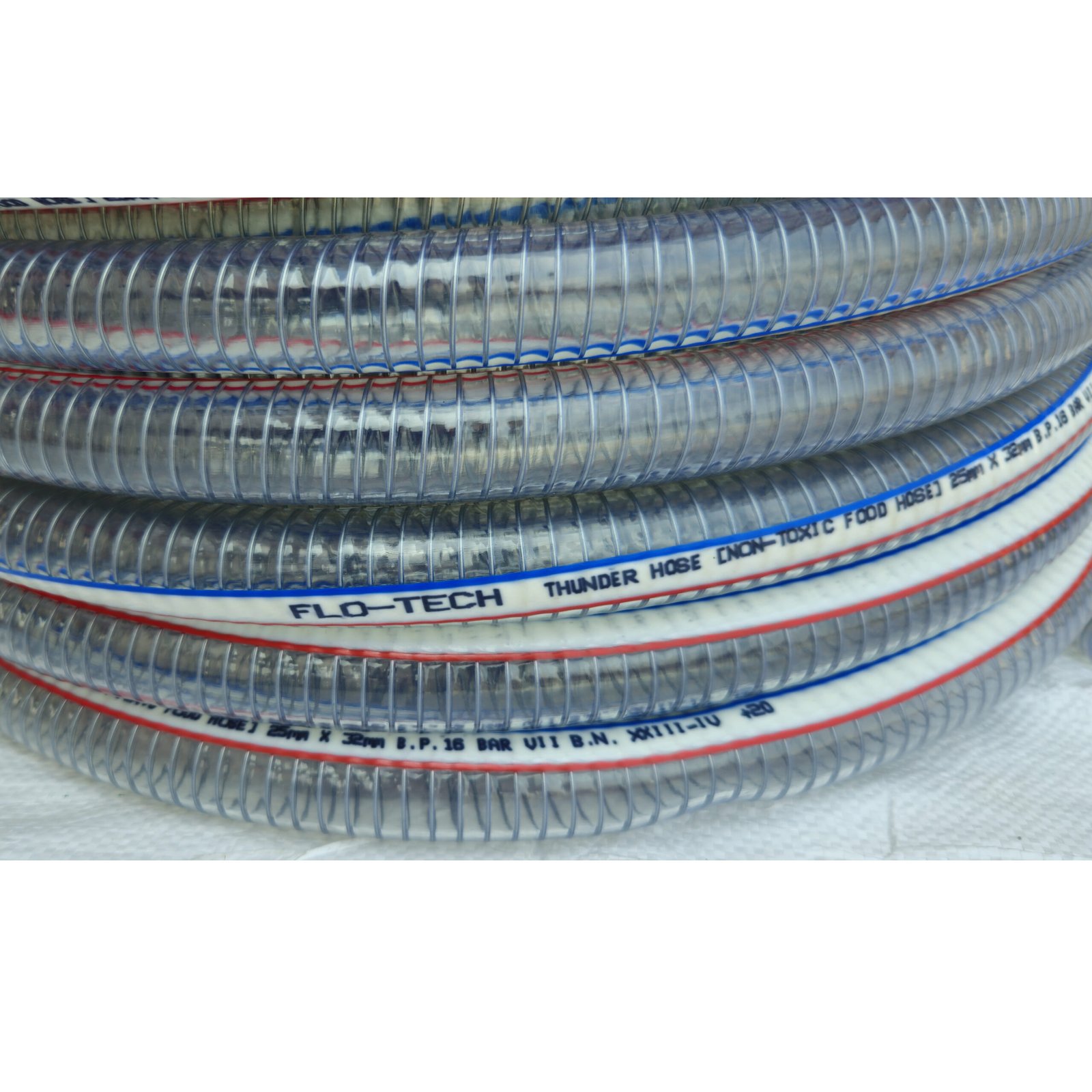

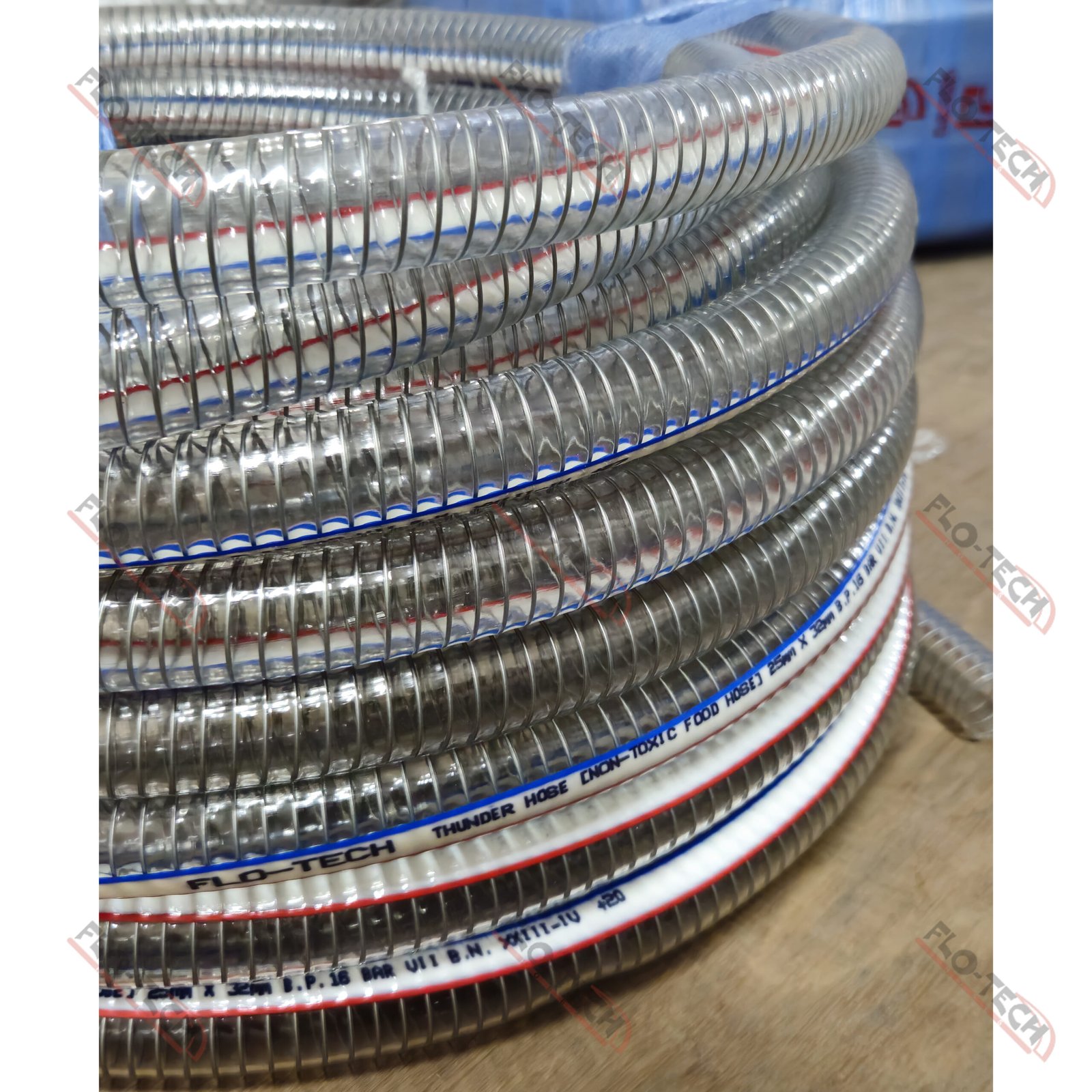

PVC Steel Wire Braided Thunder Hose – Flotech (THFT)
- The Flotech “THFT” Steel Wire Braided Thunder Hose is built for heavy-duty suction and discharge in challenging environments.

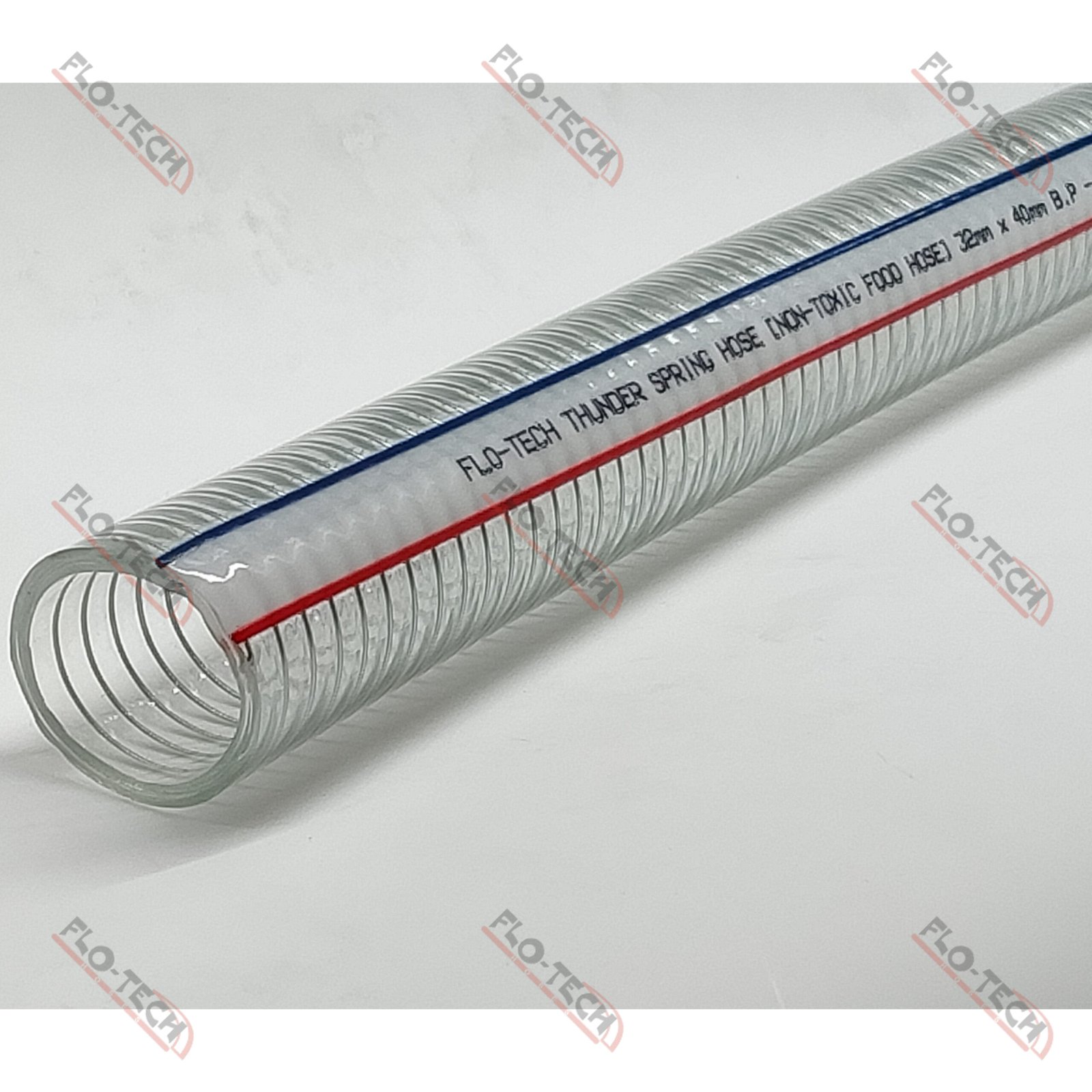

- Reinforced with a spring steel helix and crafted from high-grade PVC, this hose resists crushing, kinking, and abrasion while maintaining excellent flexibility.

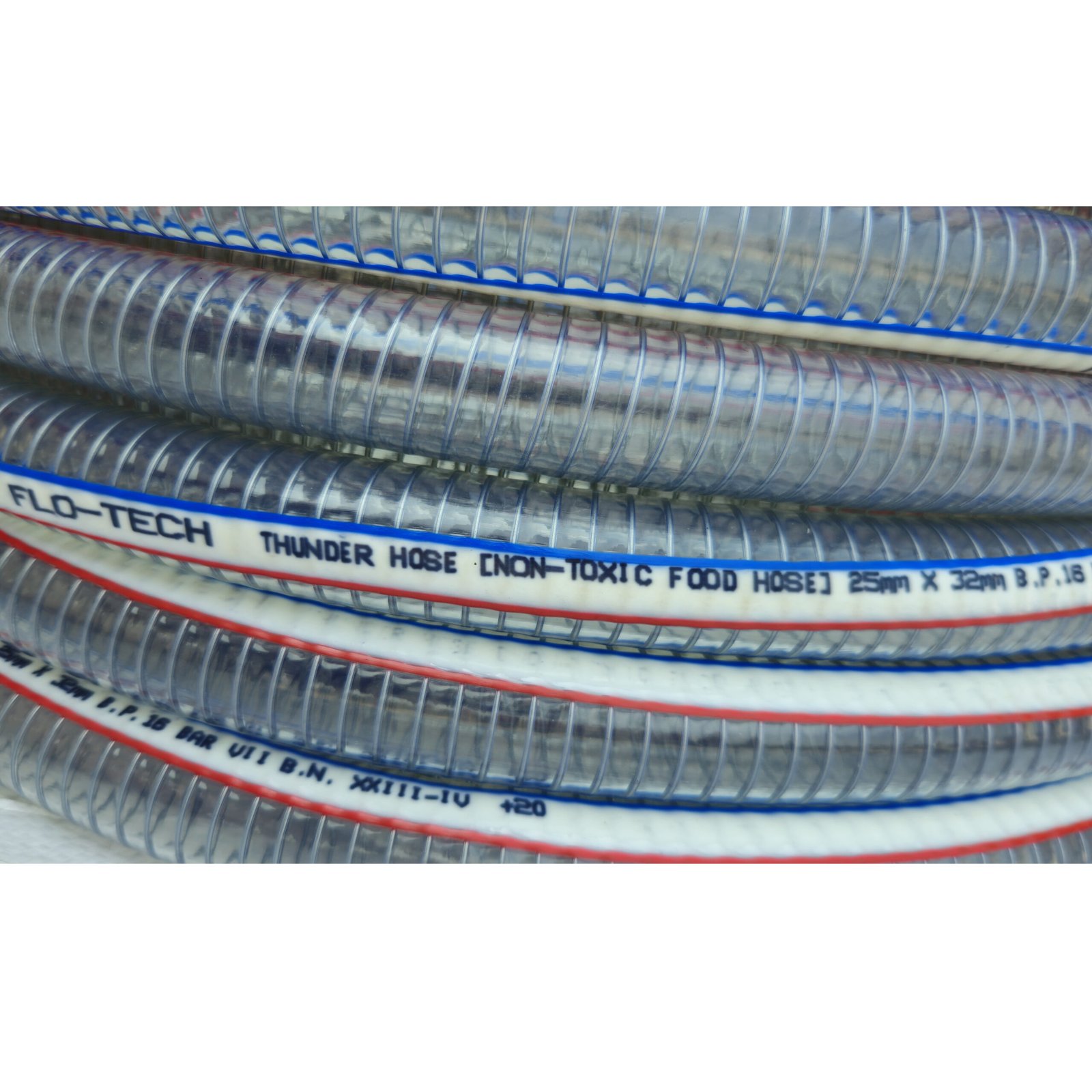

- Its transparent design ensures easy monitoring of fluid flow, and the distinctive red-blue marking line enhances both visual identification and aesthetics.
- Construction and Mining: Ideal for transferring debris and slurry in heavy-duty construction and mining operations.
- Agricultural Use: Suitable for irrigation systems and manure transfer in agricultural settings.
- Industrial Vacuum Systems: Effective for dust and particle collection in various industrial vacuum applications.
- Waste Management: Used for suction and discharge of fluids and solids in waste management processes.
- Marine Environments: Applicable for bilge pumping and dredging operations in marine settings.
- High-Volume Transfer: Available in large diameters for efficient high-volume fluid transfer.
- Spring Steel Reinforcement: Provides enhanced durability and resistance to crushing and kinking.
- High Flexibility: Maintains flexibility under various working conditions, including high pressure and vacuum.
- Abrasion and Wear Resistance: Designed to withstand tough environments and resist abrasion.
- Transparency: Allows for easy visual inspection of fluid flow and identification of blockages.
- Weather Resistance: Performs reliably in diverse weather conditions, ensuring longevity and durability.
| Type | THFT |
| Hose Material | Soft PVC Compound |
| Reinforcement | Steel Helix |
| Available Diameters | ⌀ 1/2 inch - ⌀ 8 inch (⌀ 12mm - ⌀ 200mm) |
| Thickness | 3-8 mm |
| Standard Length | 10-100 meters |
| Colour | Transparent with Red, Blue and White Stripe |
| Working Pressure | 3-5bar (Depending on diameter) |
| Burst Pressure | 10-16 bar (Depending on diameter) |
| Temperature Range | -5°C to +65°C |
Please select the item code (Qty – Meters)
Description
Additional information
| Item Code |
THFT12 ,THFT15 ,THFT19 ,THFT25 ,THFT32 ,THFT38 ,THFT50 ,THFT60 ,THFT64 ,THFT75 ,THFT100 ,THFT125 ,THFT150 ,THFT200 |
|---|---|
| Brand |
Flotech |
