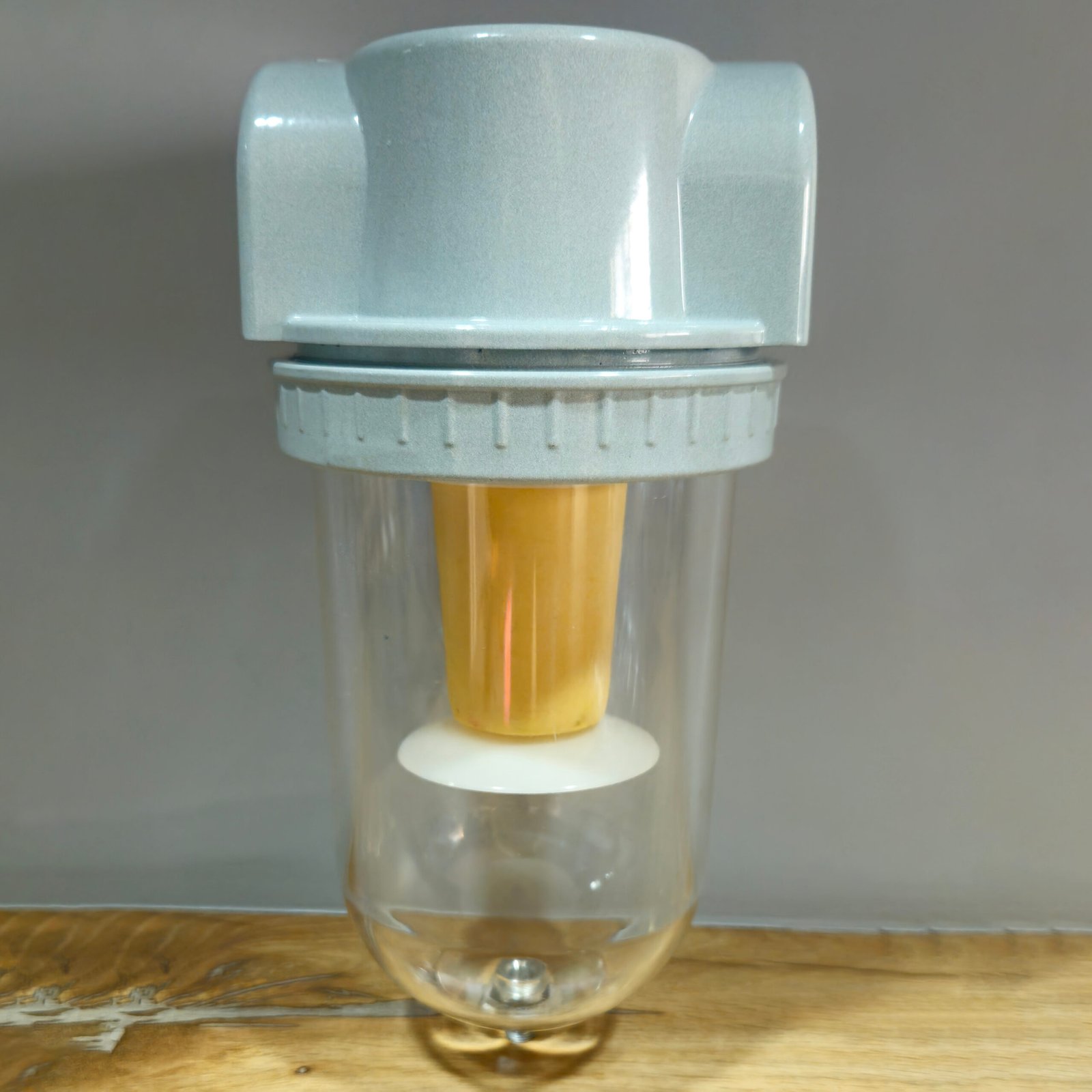

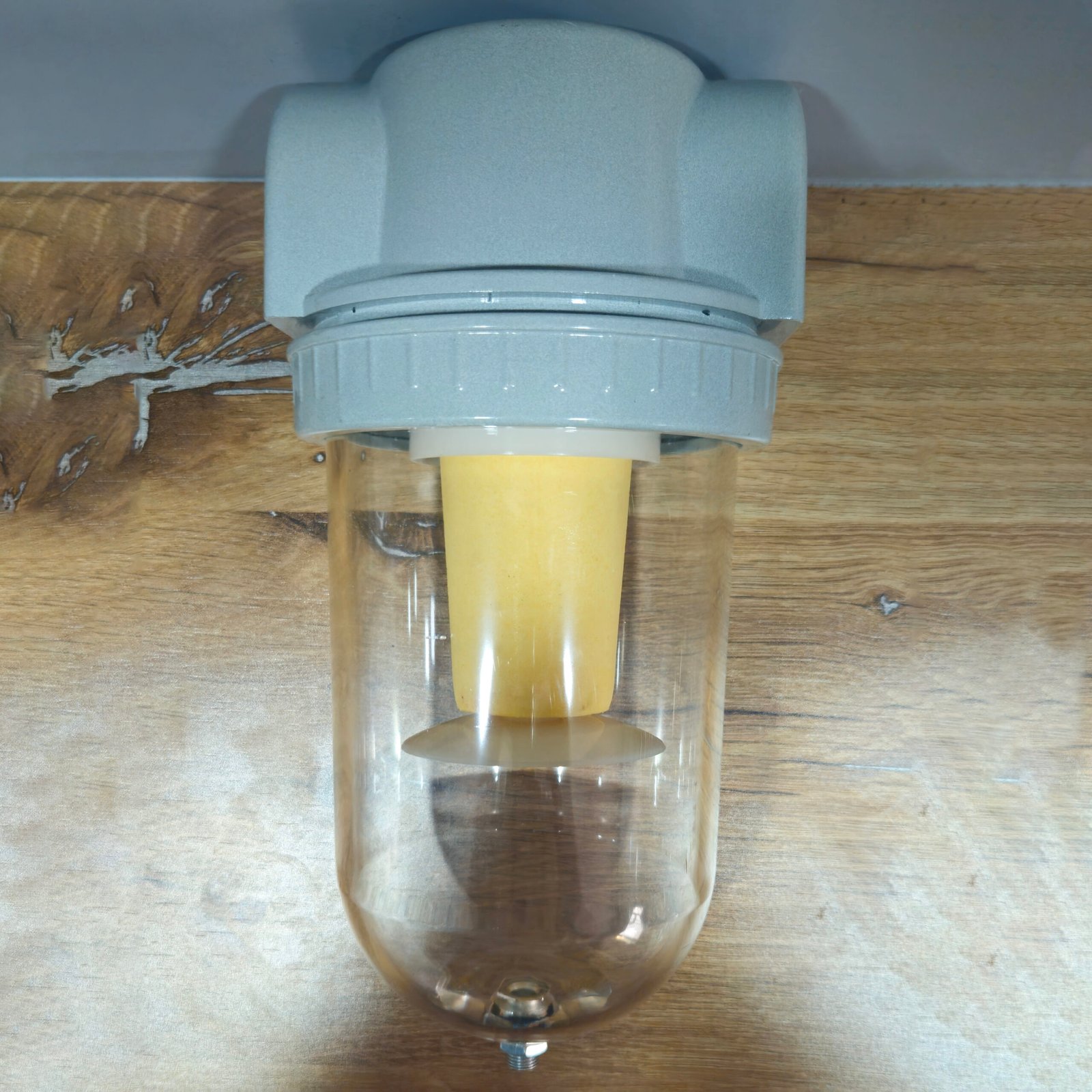

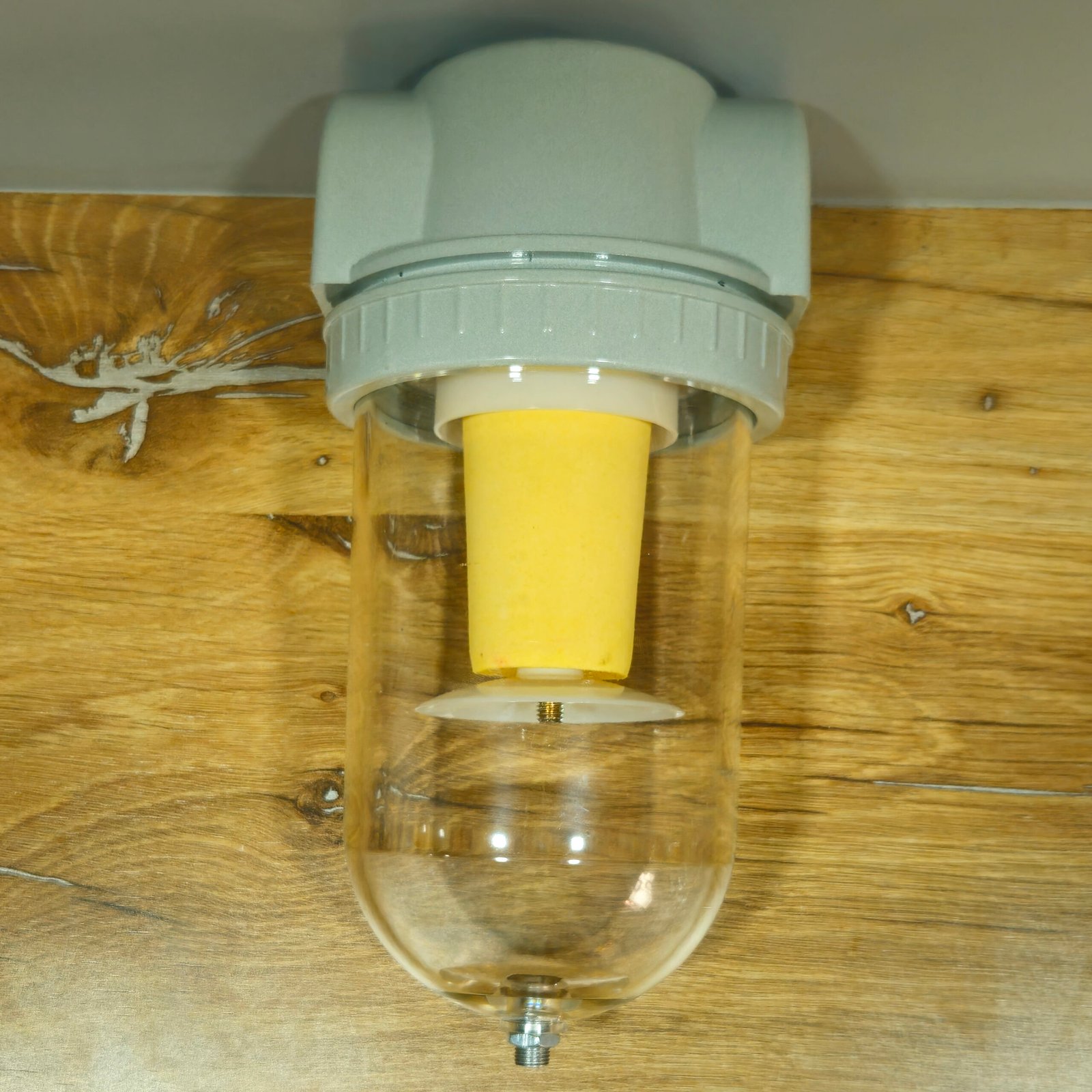

Q-Series – Filter (QSL)

Phoenix High-Flow Type FRLs "Q Series" are designed to provide efficient filtration, regulation, and lubrication for high-flow pneumatic systems. These units ensure optimal air quality and pressure control, enhancing the performance of pneumatic equipment.

These FRLs are used for filtering contaminants from compressed air, regulating air pressure in high-flow applications, providing lubrication for improved component functionality, and ensuring reliable operation in demanding industrial settings.

Type	QSL
Applicable Fluid Type	Air
Filter Aperture	50-70 um
Nominal Input Pressure	0.63 Mpa (6.3 bar)
Temperature Range	5°C - 60°C
Water Separation	>85%
Maximum Operating Pressure	10 bar
Minimum Operating Pressure	0.5 bar
