Download Catalog| Item Code | Size (ID) (inch) | Size (ID) (mm) | Size (OD) (mm) | Working Pressure (psi) | Working Pressure (bar) | Burst Pressure (psi) | Burst Pressure (bar) | Standard Length (mtr) | Price (per mtr) |
|---|---|---|---|---|---|---|---|---|---|
| 14R3 | 1/4" | 6.4 | 14.3 | 1305.0 | 90.0 | 5075.0 | 350.0 | 50 | 160.0 |
| 516R3 | 5/16" | 7.9 | 17.5 | 1235.0 | 85.0 | 4930.0 | 340.0 | 50 | 210.0 |
| 38R3 | 3/8" | 9.5 | 19.0 | 1160.0 | 80.0 | 4570.0 | 315.0 | 50 | 225.0 |
| 12R3 | 1/2" | 12.7 | 23.8 | 1015.0 | 70.0 | 4060.0 | 280.0 | 50 | 300.0 |
R2 Hydraulic Hose (R2)
Price range: ₹170.00 through ₹2,900.00
R4 Oil S&D Hose (R4)
Price range: ₹1,000.00 through ₹3,400.00
R3 Hydraulic Hose (R3)
Price range: ₹160.00 through ₹300.00

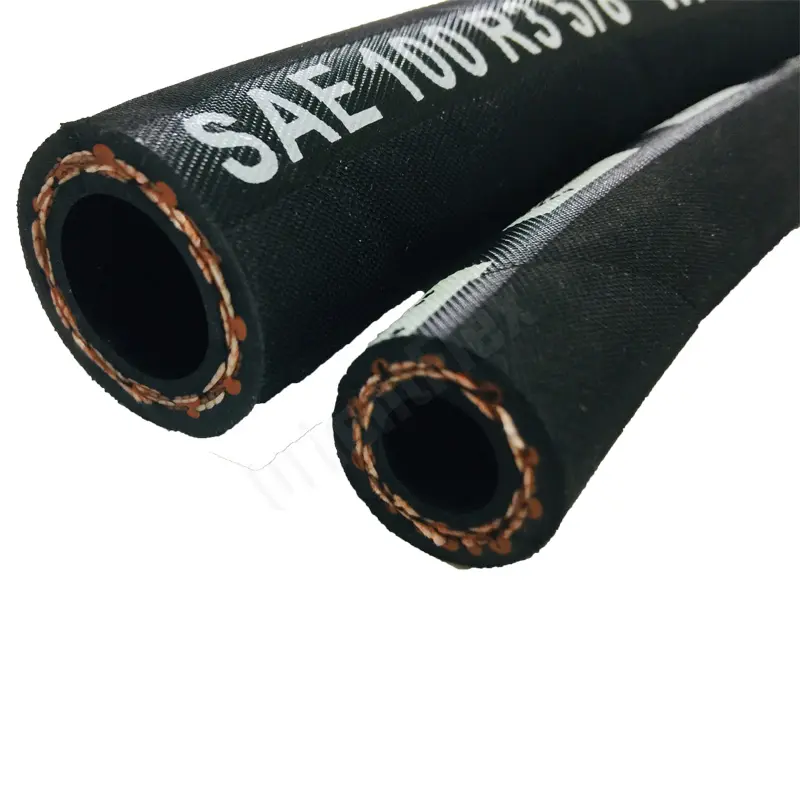

Phoenix Hydraulic Hose R3 offers textile-braided strength and flexibility for low-pressure hydraulic and pneumatic applications in industrial, automotive, and agricultural systems.
R3 Hydraulic Hose (R3)
- Phoenix “R3” Hydraulic Hose is engineered for low-pressure hydraulic and pneumatic applications, combining durable textile-braided reinforcement with flexibility for easy installation.
- Constructed with an oil-resistant synthetic rubber inner tube, dual high-strength textile braids, and a tough synthetic rubber outer cover, it offers reliable performance in systems using petroleum-based, synthetic, or water-based fluids.
- Its construction ensures resistance to oil, ozone, abrasion, and weather, making it an ideal fit for demanding environments across industries.
- Hydraulic Return Lines: Used in hydraulic systems requiring low-pressure return line hoses, ensuring efficient fluid return.
- Pneumatic Applications: Ideal for industrial machinery requiring pneumatic hoses, offering flexibility and reliability in low-pressure systems.
- Power Steering Systems: Applied in automotive power steering systems, providing reliable performance for fluid transfer in steering mechanisms.
- Agricultural Machinery: Suitable for light-duty agricultural equipment that operates under low pressure, ensuring durability and ease of installation.
- Low-Pressure Fuel and Lubrication Systems: Used in various low-pressure fuel and lubrication systems, ensuring safe and efficient fluid transfer.
- Lightweight and Flexible: Textile braiding ensures the hose is lightweight, flexible, and easy to install, even in tight spaces.
- Oil, Weather, and Abrasion Resistance: The synthetic rubber cover offers protection against oil, weather, abrasion, and ozone, enhancing durability in harsh environments.
- Performance Reliability: Tested up to 200,000 impulse cycles, providing long-lasting performance in demanding conditions.
| Type | R3 |
| Core | Black Synthetic Rubber |
| Reinforcement | Double Fiber Braids |
| Cover | Black Synthetic Rubber |
| Available Sizes | 1/4 inch - 1/2 inch |
| Standard Length | 50 meters |
| Colour | Black |
| Working Pressure | 70-90 bar (Depending on diameter) |
| Burst Pressure | 280-350 bar (Depending on diameter) |
| Compliances | SAE 100 R3 |
| Working Temperature | -40°C to +100°C |
Please select the item code (Qty – Meters)
Description
Additional information
| Item Code |
14R3 ,516R3 ,38R3 ,12R3 |
|---|---|
| Brand |
Phoenix |
