Download Catalog| Coupler Type | Adapter Type | Thread Size (inch) | Working Pressure (psi) | Mild Steel (Price per pc) | SS-304 (Price per pc) | SS-316 (Price per pc) | Brass (Price per pc) |
|---|---|---|---|---|---|---|---|
| Male / Female / Hose End | Male / Female / Hose End | 1/8" | 300 | 250 | 775 | 1005 | 680 |
| 1/4" | 300 | 250 | 775 | 1005 | 680 | ||
| 3/8" | 300 | 295 | 820 | 1065 | 725 | ||
| 1/2" | 300 | 510 | 1605 | 2090 | 1405 | ||
| 3/4" | 300 | 725 | 2025 | 2630 | 2100 | ||
| 1" | 300 | 1330 | 2720 | 3535 | 2705 | ||
| 1-1/4" | 150 | 2800 | 6775 | 8805 | 6285 | ||
| 1-1/2" | 150 | 4200 | 8385 | 10900 | 7825 | ||
| 2" | 150 | 5235 | 11025 | 14335 | 10850 |
Back to products
Through-Type QRC (TQ Series)
Price range: ₹225.00 through ₹12,900.00
Single Check Type QRC (SC Series)
Price range: ₹250.00 through ₹14,335.00

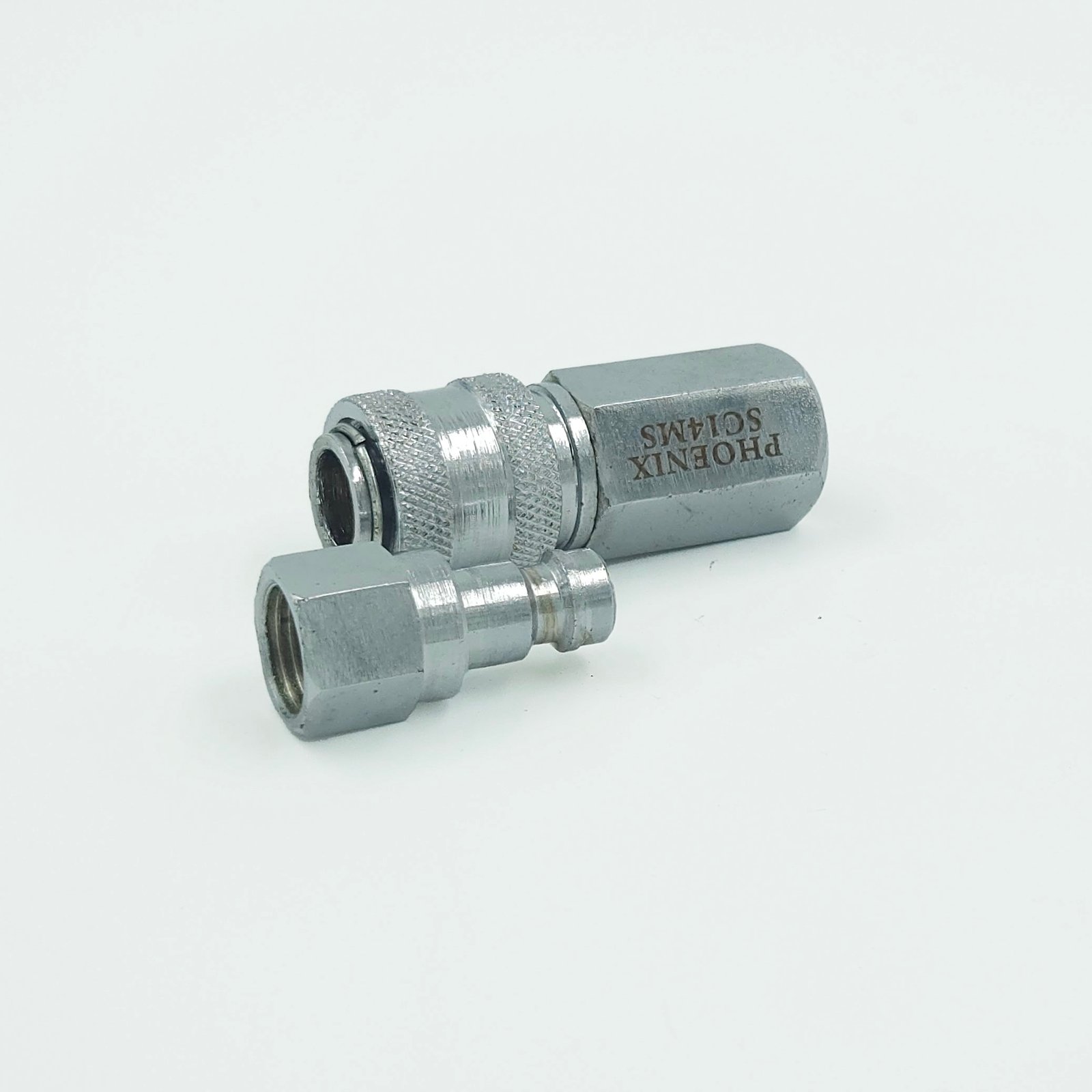

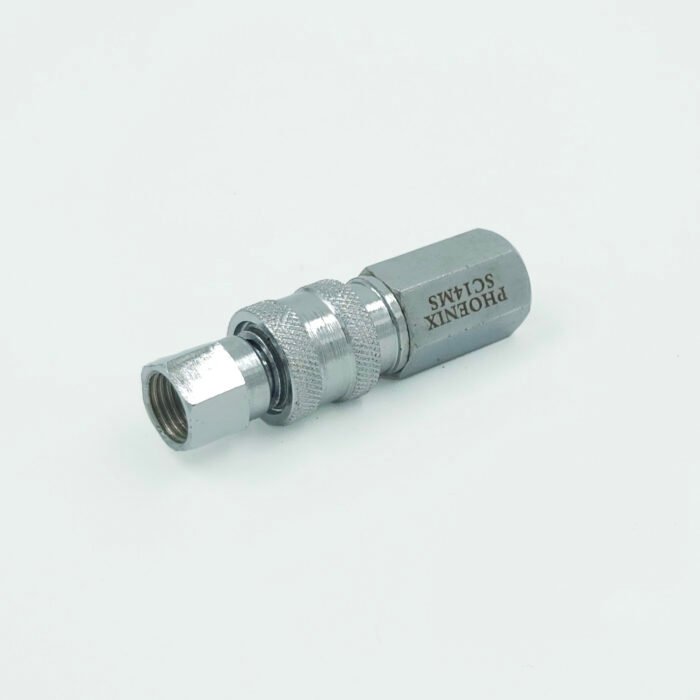

Phoenix Single Check Type QRC (SC Series)
Phoenix Single Check Type Quick Release Couplings (QRC) "SC Series" are designed to provide secure, leak-free connections in pneumatic systems while preventing reverse flow. Their single check valve mechanism ensures consistent and reliable performance.
These couplings are used to prevent backflow in pneumatic systems, ensure secure connections in air and fluid transfer, enable quick assembly and disassembly of components, and enhance system efficiency by maintaining one-way flow.
| Type | SC Series |
| Coupler | With Check Valve |
| Adapter | Without Check Valve |
| Material | Mild Steel |
| SS-304 | |
| SS-316 | |
| Brass | |
| Working Pressure Range | 150-300 psi (10-20 bar) (based on size) |
| Working Temperature | -20-107°C |
Please select the item size (Qty – Pcs)
Description
Additional information
| Thread Size |
1/8" ,1/4" ,3/8" ,1/2" ,3/4" ,1" ,1-1/4" ,1-1/2" ,2" |
|---|---|
| Material |
Mild Steel (MS) ,SS304 ,SS316 ,Brass |
| Brand |
Phoenix |
| Coupler Type |
Male ,Female ,Hose-End |
| Adapter Type |
Male ,Female ,Hose-End |
