Download Catalog| Item Code | Size (ID) (inch) | Working Pressure (bar) | Standard Length (mtr) | Price (per mtr) |
|---|---|---|---|---|
| 316SSTEF | 3/16" | 150.0 | 100 | 220 |
| 14SSTEF | 1/4" | 140.0 | 100 | 265 |
| 516SSTEF | 5/16" | 130.0 | 100 | 345 |
| 38SSTEF | 3/8" | 120.0 | 100 | 425 |
| 716SSTEF | 7/16" | 115.0 | 100 | 450 |
| 12SSTEF | 1/2" | 110.0 | 100 | 585 |
| 58SSTEF | 5/8" | 80.0 | 100 | 690 |
| 34SSTEF | 3/4" | 69.0 | 100 | 1000 |
| 1SSTEF | 1" | 64.0 | 100 | 1000 |
FEP Tube (FEP)
Price range: ₹280.00 through ₹890.00
Silicon Tube (SIL)
Price range: ₹18.00 through ₹1,882.00
SS Braided Teflon Tube (SSTEF)
Price range: ₹220.00 through ₹1,000.00
SS Braided Teflon Tube blends Teflon’s chemical resistance with SS304 wire braiding for high-pressure, flexible, and durable fluid transfer.
SS Braided Teflon Tube (SSTEF)

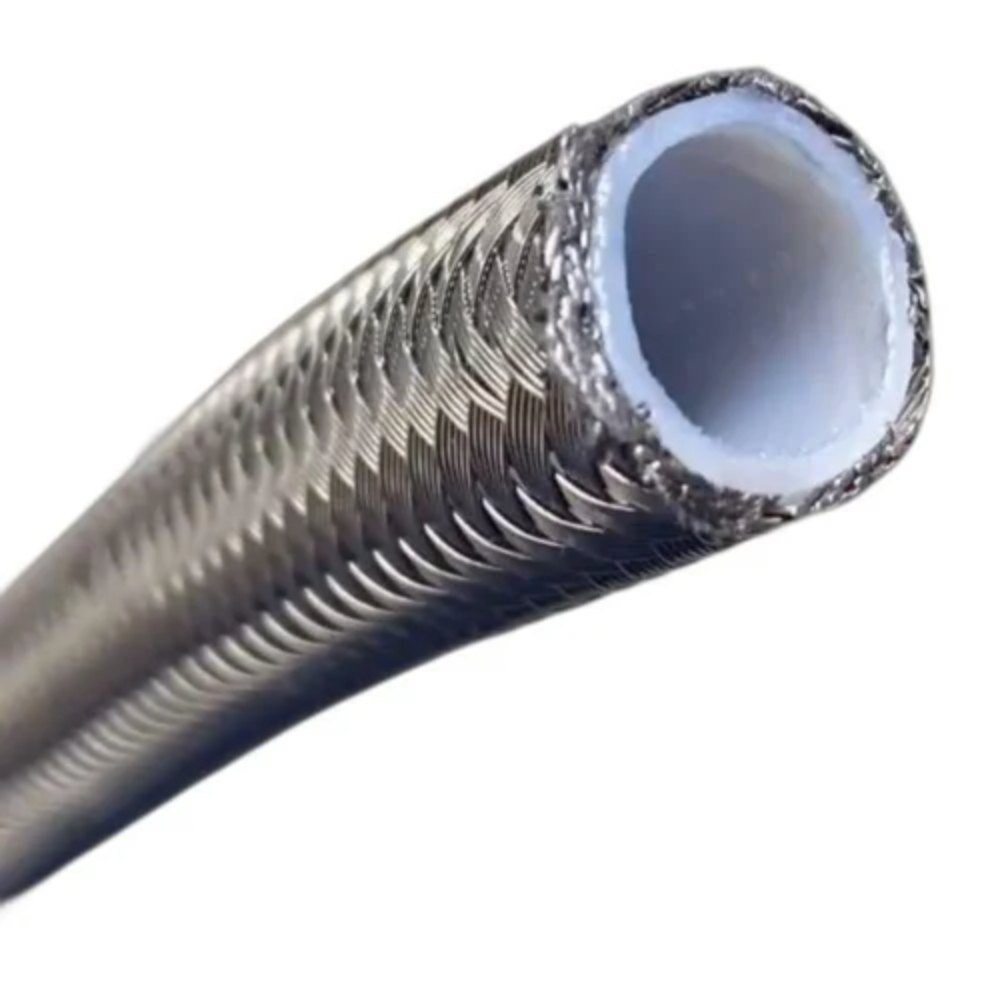

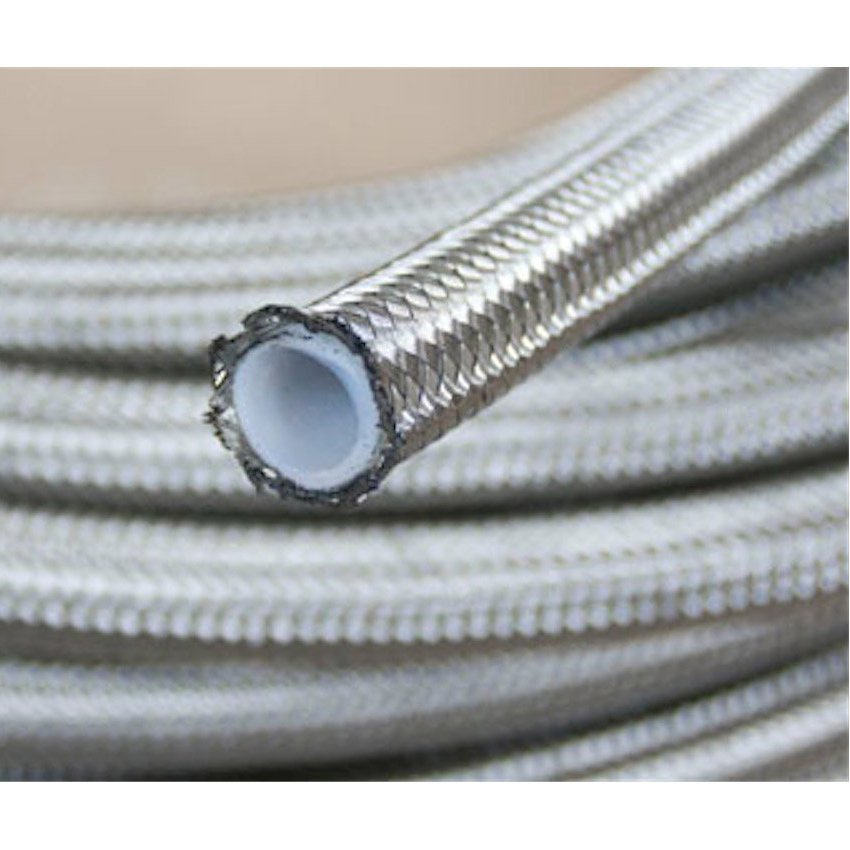

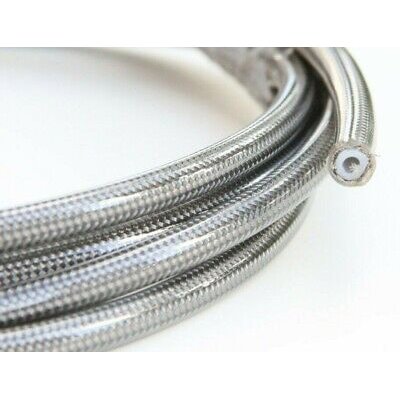

- Phoenix SS Braided Teflon Tube (SSTEF) combines a Teflon (PTFE) core with SS304 stainless steel wire braiding, offering exceptional pressure resistance, chemical stability, and durability.
- The inner PTFE tube ensures non-stick, low-friction fluid flow, while the outer SS braiding provides mechanical strength against abrasion, kinking, and extreme pressure.
- This makes SSTEF an ideal choice for industries that demand sterility, safety, and efficiency in both high-pressure and high-temperature environments.
- High-Pressure Fluid Transfer: Ideal for transferring chemicals, solvents, and gases under high pressure in industrial and chemical processes.
- Automotive and Aerospace: Used for fuel lines, hydraulic systems, and other high-performance applications where strength and flexibility are needed.
- Pharmaceutical and Food Industries: Suitable for sterile and contaminant-free transfer of fluids in food processing and pharmaceutical manufacturing.
- Hydraulic and Pneumatic Systems: Employed in systems requiring durable and flexible tubing capable of handling high pressure and abrasion.
- Cryogenic and High-Temperature Environments: Capable of withstanding extreme temperatures, making it ideal for heat exchangers and cryogenic processes.
- High-Pressure Resistance: Reinforced with stainless steel braiding, providing excellent pressure tolerance.
- Chemical Resistance: Offers universal chemical resistance, suitable for handling corrosive fluids and gases.
- Temperature Range: Performs effectively in extreme temperatures, from cryogenic levels to high heat environments.
- Durability: Stainless steel braiding enhances resistance to abrasion, kinking, and mechanical damage.
- Non-Stick Properties: Teflon core ensures smooth fluid flow and reduces friction, improving efficiency in fluid transfer.
- Hygienic and Sterile: Non-reactive and non-contaminating, making it ideal for food-grade and pharmaceutical applications.
| Type | SSTEF |
| Material | Teflon (PTFE) |
| Reinforcement | SS304 Wire Braiding |
| Available Sizes | 3/16 inch - 1 inch |
| Standard Length | 100 meters |
| Temperature Range | -180°C to +260°C |
| Dielectric Constant | 2.1 |
| Dielectric Dissipation Factor | <0.0001 |
| Static Coefficient of Friction | 0.25 |
| Water Absorption | < 0.01 % |
| Tensile Strength | 4350 psi |
| Melting Point | 270°C |
| Working Pressure | 64 bar - 150 bar (Depending on diameter) |
Please select the item code (Qty – Meters)
Description
Additional information
| Item Code |
316SSTEF ,14SSTEF ,516SSTEF ,38SSTEF ,716SSTEF ,12SSTEF ,58SSTEF ,34SSTEF ,1SSTEF |
|---|
