Download Catalog| Thread Size (BSP) | Item Code | Price (per pc) |
|---|---|---|
| 1/4" | SSM20 | 980 |
| 3/8" | SSM30 | 980 |
| 1/2" | SSM40 | 980 |
QRC Plug PU-End (PP)
₹16.00 – ₹40.00
SS One-Touch QRC Socket Female (SSF)
₹1,050.00
SS One-Touch QRC Socket Male (SSM)
₹980.00

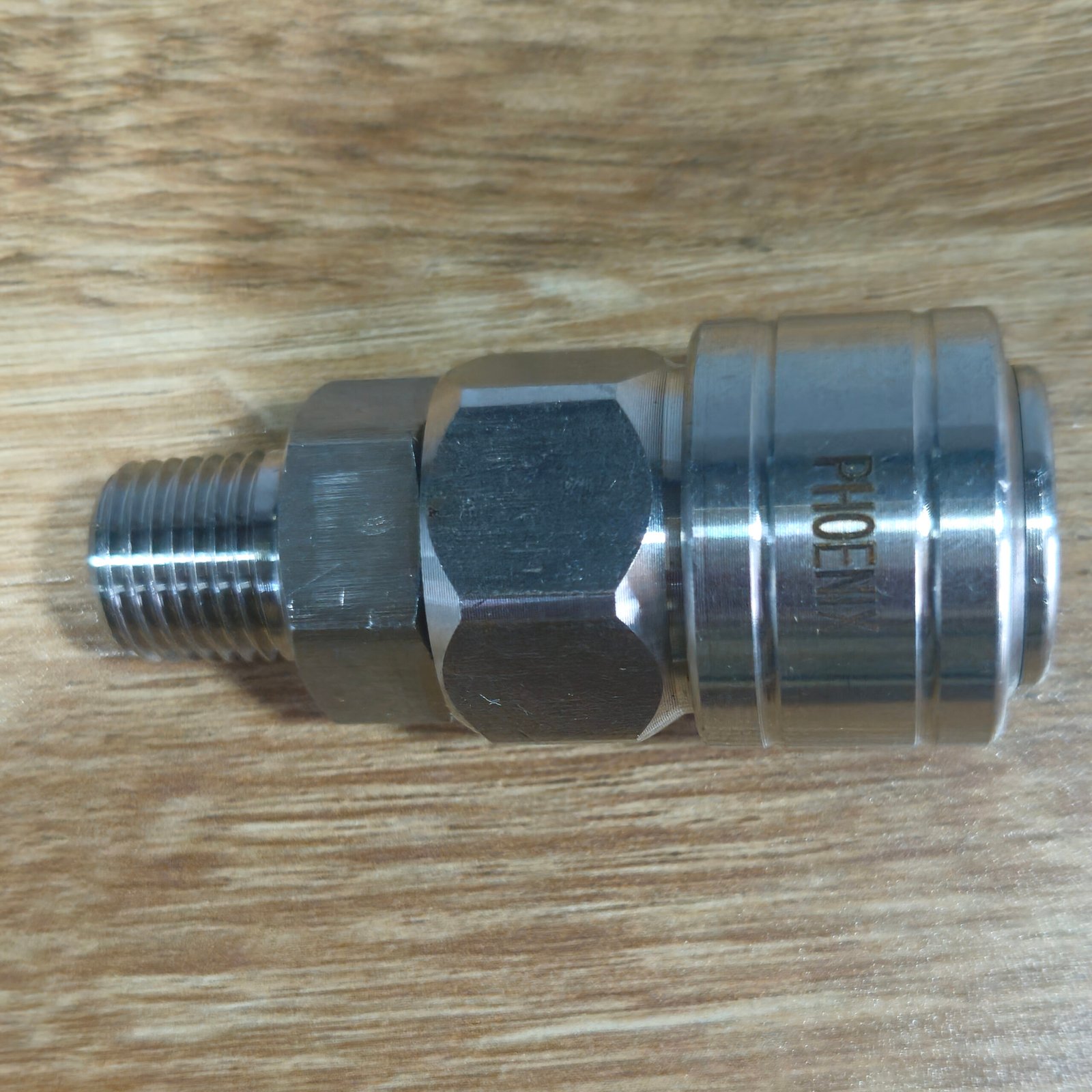

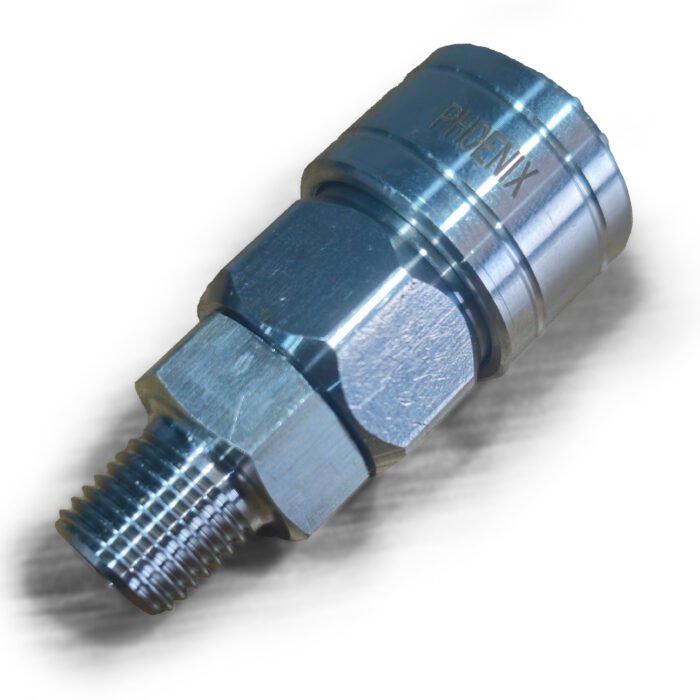

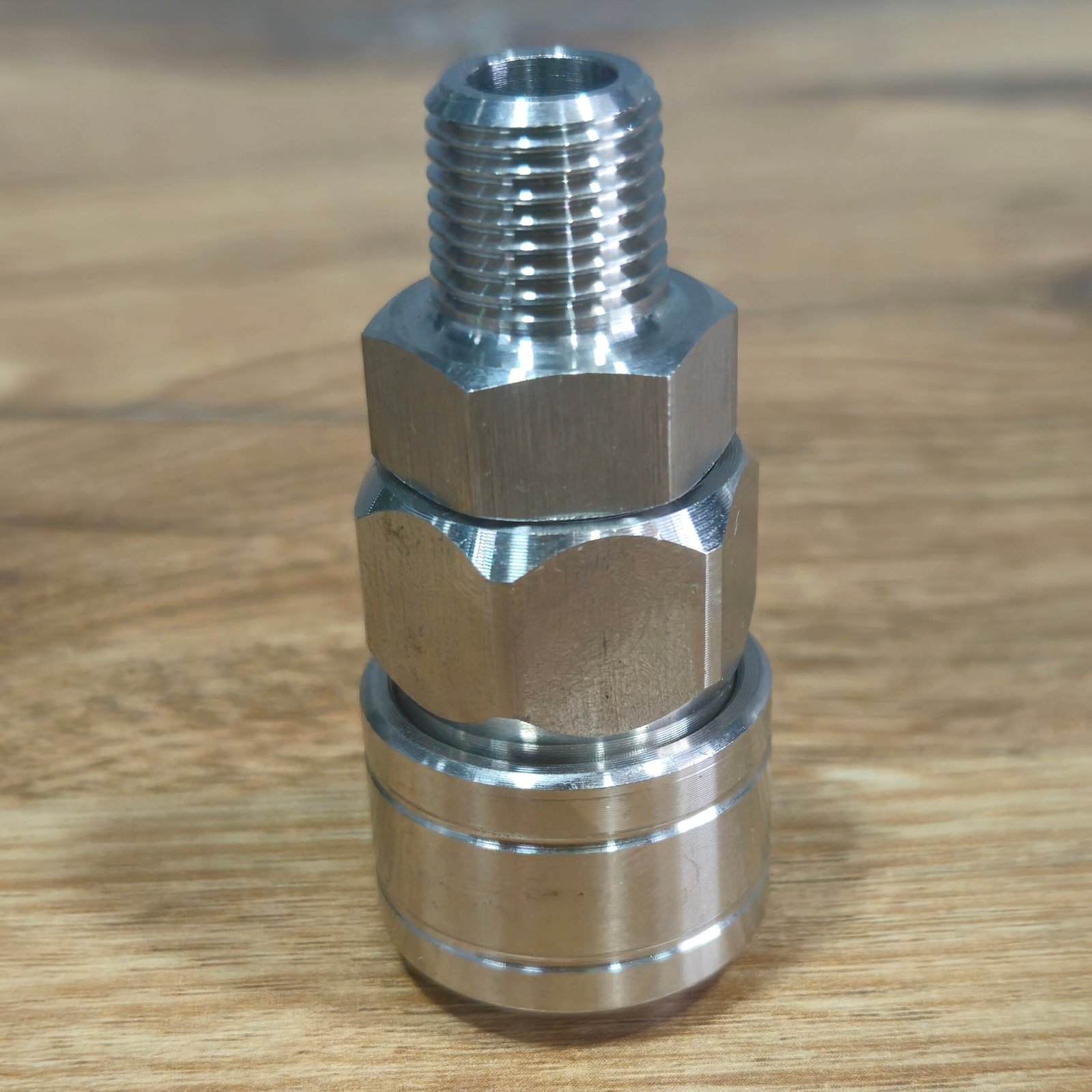

Phoenix SS One-Touch QRC Socket Male (SSM)
Phoenix SS One-Touch Nitto Type Quick Release Couplings (QRC) are engineered for durable and reliable connections in pneumatic systems. Made from stainless steel, these couplings provide excellent corrosion resistance and ensure secure, leak-free operation.
These couplings are used for quick connections in pneumatic tools, facilitate fluid transfer in industrial equipment, enable rapid assembly and disassembly of components, support flexible routing in confined spaces, and enhance overall efficiency in various applications.
| Type | SSM |
| Applicable Fluid Type | Air (No other type of gas or liquid) |
| Material | Stainless Steel (SS304) |
| Seal Material | Viton / FKM |
| Working Pressure Range | 0-2.0 Mpa (0-20 bar) |
| Working Temperature | -20-170°C |
| Air Flow | 35 SCFM at 100 PSIG inlet with 10 PSI pressure drop |
Please select the item size (Qty – Pcs)
Description
Additional information
| Item Size |
1/4" ,3/8" ,1/2" |
|---|---|
| Brand |
Phoenix |
