Download Catalog| Item Code | Band Width (mm) | Size (Min) - mm | Size (Max) - mm | Price (per pc) |
|---|---|---|---|---|
| TB40 | 20 | 34 | 40 | 98.0 |
| TB46 | 20 | 40 | 46 | 98.0 |
| TB49 | 20 | 43 | 49 | 98.0 |
| TB52 | 20 | 46 | 52 | 100.0 |
| TB57 | 20 | 51 | 57 | 100.0 |
| TB65 | 20 | 58 | 65 | 105.0 |
| TB72 | 20 | 64 | 72 | 105.0 |
| TB78 | 20 | 70 | 78 | 110.0 |
| TB84 | 20 | 76 | 84 | 110.0 |
| TB91 | 20 | 83 | 91 | 110.0 |
| TB97 | 20 | 89 | 97 | 120.0 |
| TB103 | 20 | 95 | 103 | 125.0 |
| TB110 | 20 | 102 | 110 | 125.0 |
| TB116 | 20 | 108 | 116 | 125.0 |
| TB122 | 20 | 114 | 122 | 140.0 |
| TB129 | 20 | 121 | 129 | 140.0 |
| TB135 | 20 | 127 | 135 | 140.0 |
| TB141 | 20 | 133 | 141 | 145.0 |
| TB148 | 20 | 140 | 148 | 145.0 |
| TB154 | 20 | 146 | 154 | 150.0 |
| TB160 | 20 | 152 | 160 | 150.0 |
| TB167 | 20 | 159 | 167 | 150.0 |
| TB173 | 20 | 165 | 173 | 155.0 |
| TB179 | 20 | 171 | 179 | 155.0 |
| TB186 | 20 | 178 | 186 | 160.0 |
| TB192 | 20 | 184 | 192 | 160.0 |
| TB199 | 20 | 191 | 199 | 170.0 |
| TB205 | 20 | 197 | 205 | 170.0 |
| TB211 | 20 | 203 | 211 | 175.0 |
| TB240 | 20 | 232 | 240 | 200.0 |
| TB265 | 20 | 257 | 265 | 260.0 |
| TB290 | 20 | 282 | 290 | 260.0 |
| TB292 | 20 | 286 | 292 | 260.0 |
Norma-Type Mini SS+MS Clips (MNG)
Price range: ₹12.50 through ₹13.50
Heavy Duty MS Unitary Clamps (HDMS)
Price range: ₹38.00 through ₹241.00
SS T-Bolt Clamps (TB)
Price range: ₹98.00 through ₹260.00

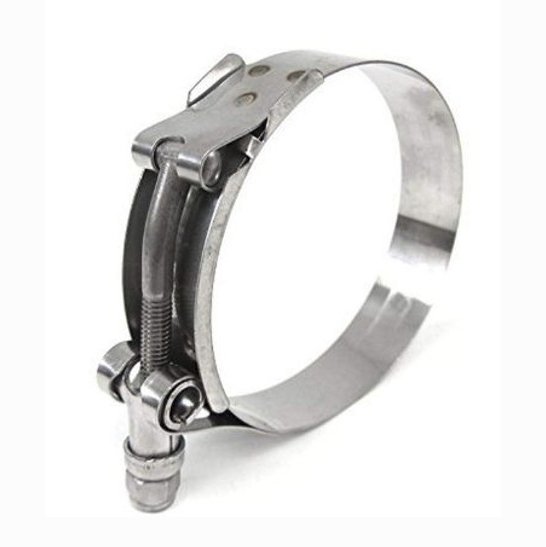

SS T-Bolt Clamps (TB)
Phoenix SS T-Bolt Clamps (TB Series) are heavy-duty clamps designed for high-pressure hose sealing in demanding industrial and automotive applications.
Made entirely of stainless steel, they feature a solid T-bolt with a lock nut for uniform 360° clamping force.
These clamps are ideal for thick-wall or reinforced hoses where traditional worm-drive clamps may fail.
These clamps are recommended for high pressure and heavy-duty applications like –
- Turbocharger and intercooler connections
- Engine coolant and radiator hoses
- Industrial ducting and air handling systems
- Agriculture and construction equipment
| Parameter | Specification |
| Clamp Type | T-Bolt Clamp |
| Brand | Phoenix |
| Material | Stainless Steel (SS) |
| Band Width | 20mm |
| Band Thickness | ~0.8-1mm |
| Bolt & Nut | SS Bolt with Nylock Nut |
| Clamping Force | High (suitable for reinforced hoses) |
| Reusability | Reusable |
| Surface Finish | Bright Polished |
| Corrosion Resistance | Excellent |
| Packaging | Varies by Size |
| Standards | SAEJ1508 Type TB |
Please select the item size (Qty – Pcs)
Description
Additional information
| Item |
TB40 (34 – 40 mm) ,TB46 (40 – 46 mm) ,TB49 (43 – 49 mm) ,TB52 (46 – 52 mm) ,TB57 (51 – 57 mm) ,TB65 (58 – 65 mm) ,TB72 (64 – 72 mm) ,TB78 (70 – 78 mm) ,TB84 (76 – 84 mm) ,TB91 (83 – 91 mm) ,TB97 (89 – 97 mm) ,TB103 (95 – 103 mm) ,TB110 (102 – 110 mm) ,TB116 (108 – 116 mm) ,TB122 (114 – 122 mm) ,TB129 (121 – 129 mm) ,TB135 (127 – 135 mm) ,TB141 (133 – 141 mm) ,TB148 (140 – 148 mm) ,TB154 (146 – 154 mm) ,TB160 (152 – 160 mm) ,TB167 (159 – 167 mm) ,TB173 (165 – 173 mm) ,TB179 (171 – 179 mm) ,TB186 (178 – 186 mm) ,TB192 (184 – 192 mm) ,TB199 (191 – 199 mm) ,TB205 (197 – 205 mm) ,TB211 (203 – 211 mm) ,TB240 (232 – 240 mm) ,TB265 (257 – 265 mm) ,TB290 (282 – 290 mm) ,TB292 (286 – 292 mm) |
|---|---|
| Brand |
Phoenix |
