Name: SS316 Male Elbow (SSPL) - Jyoti Sales Corporation
Availability: InStock

SS316 Male Elbow (SSPL)

₹950.00 – ₹1,825.00

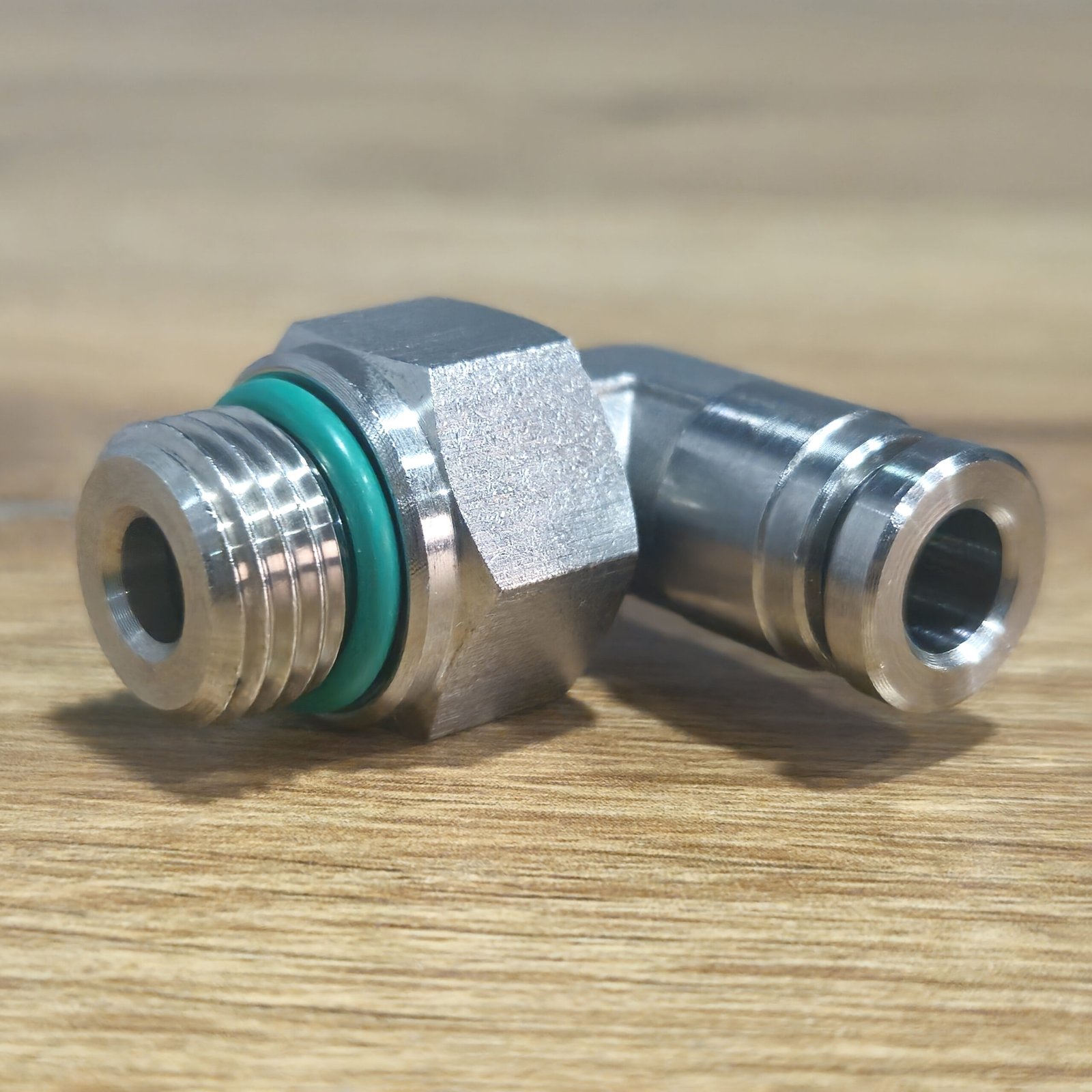

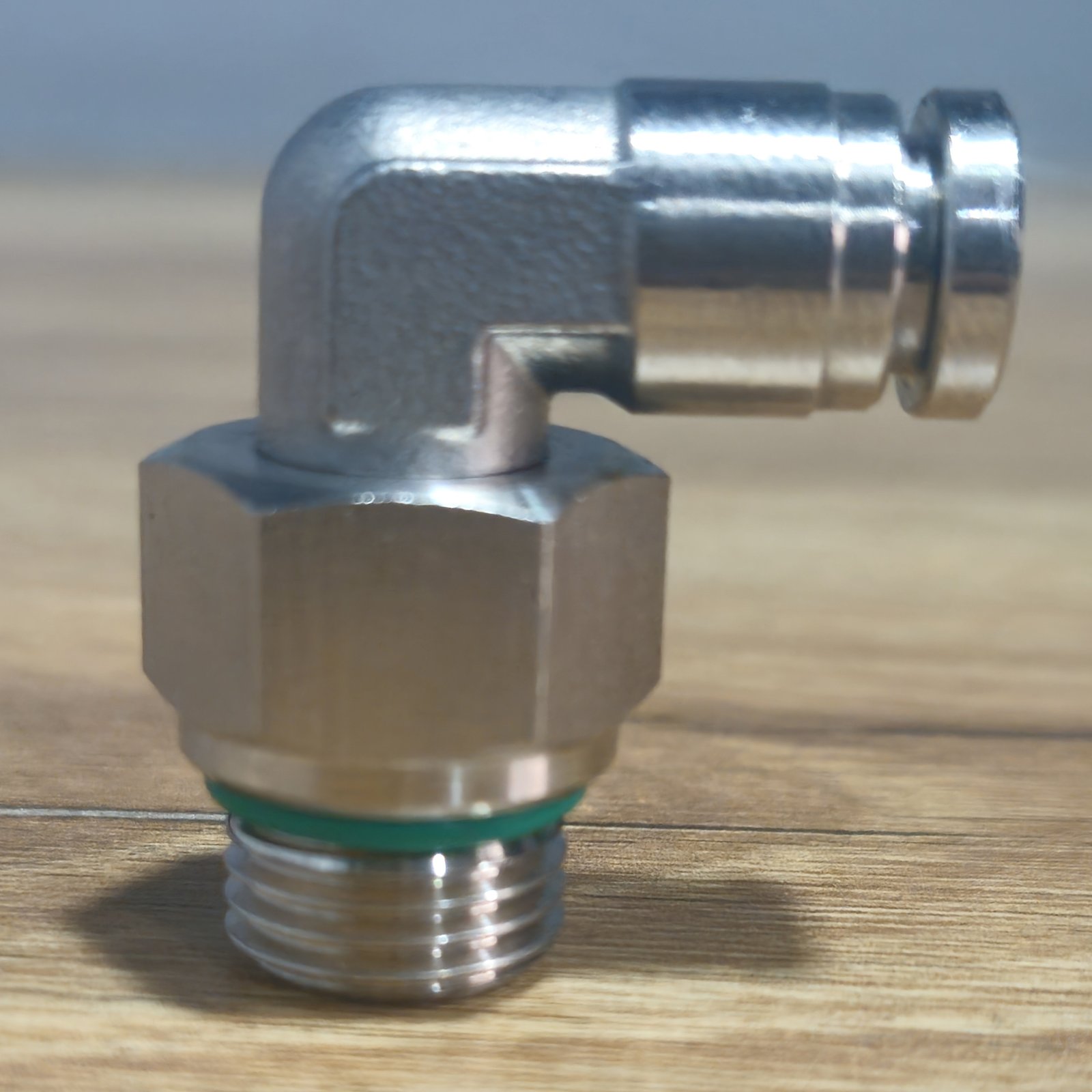

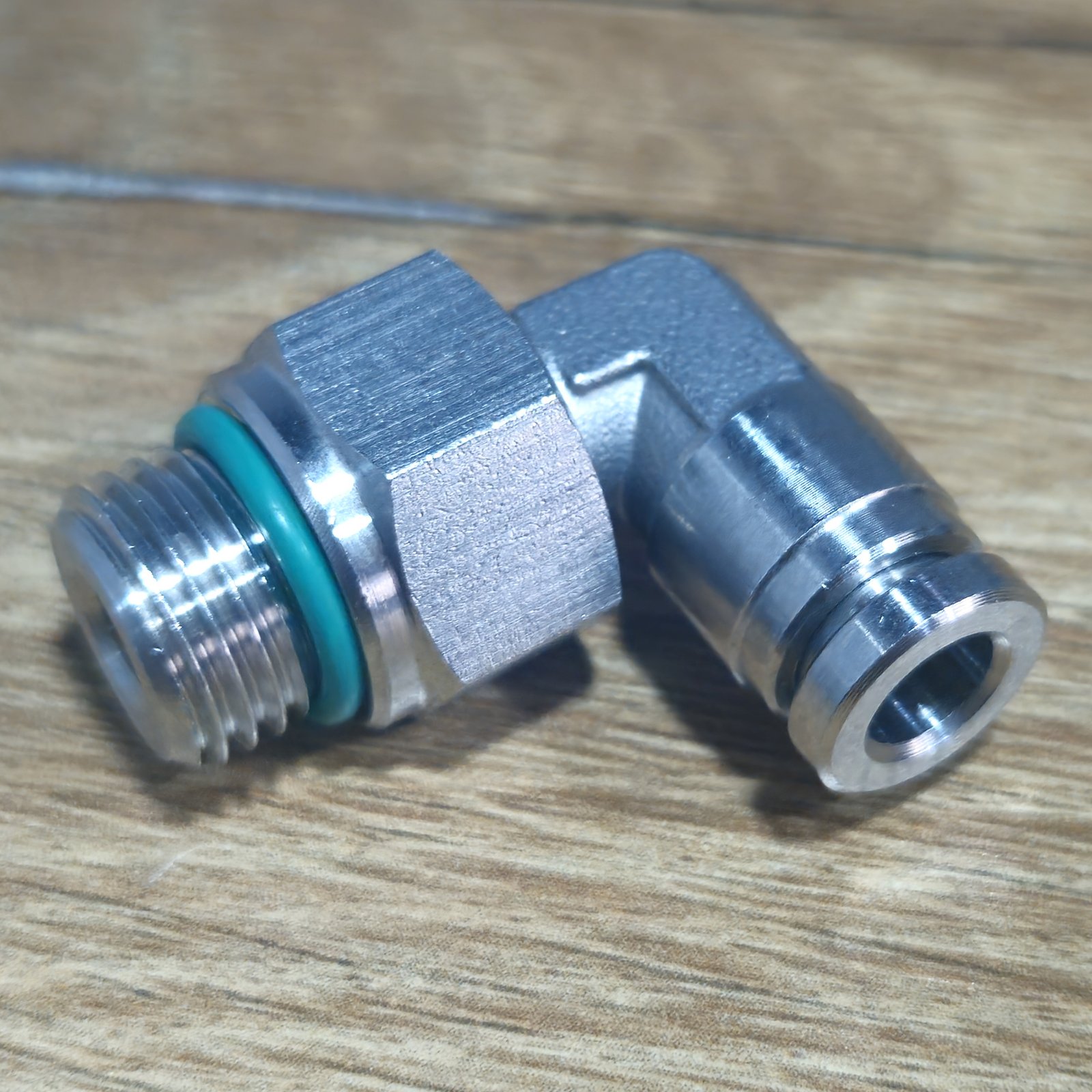

Phoenix SS316 Male Elbow (SSPL)

Description

Phoenix SS316L One-Touch Push Fittings “SS Series” are crafted from high-quality stainless steel, offering exceptional resistance to corrosion and high temperatures. Designed for quick and secure connections, these fittings ensure reliability in demanding applications across various industries.

Applications

These fittings are used to create secure connections in corrosive environments, maintain fluid transfer in chemical processing, provide reliable airflow in pneumatic systems, connect components in high-pressure applications, and enhance system integrity in food processing.

Physical and Technical Specifications

Type	SSPL
Applicable Fluid Type	Air (No other type of gas or liquid)
Working Pressure Range	0-1 Mpa (0-10 bar)
Max Pressure Resistance	1.32 Mpa (13.2 bar)
Working Temperature	0-60°C
Applicable Tubing	PU Tube, Nylon Tube

Download Catalog

Please select the item size (Qty – Pcs)

Description

Size	Item Code	Tube OD (mm)	Thread Size (G)	Price (per pc)
4mm x M5	SSPL04M5	4	M5	950
4mm x 1/8"	SSPL0401	4	G1/8	950
6mm x M5	SSPL06M5	6	M5	950
6mm x 1/8"	SSPL0601	6	G1/8	950
6mm x 1/4"	SSPL0602	6	G1/4	950
8mm x 1/8"	SSPL0801	8	G1/8	990
8mm x 1/4"	SSPL0802	8	G1/4	990
8mm x 3/8"	SSPL0803	8	G3/8	1050
8mm x 1/2"	SSPL0804	8	G1/2	1080
10mm x 1/4"	SSPL1002	10	G1/4	1150
10mm x 3/8"	SSPL1003	10	G3/8	1150
10mm x 1/2"	SSPL1004	10	G1/2	1200
12mm x 1/4"	SSPL1202	12	G1/4	1225
12mm x 3/4"	SSPL1203	12	G3/8	1200
12mm x 1/2"	SSPL1204	12	G1/2	1325
16mm x 1/2"	SSPL1604	16	G1/2	1825

Additional information

Item Size	4mm x M5 , 4mm x 1/8" , 6mm x M5 , 6mm x 1/8" , 6mm x 1/4" , 8mm x 1/8" , 8mm x 1/4" , 8mm x 3/8" , 8mm x 1/2" , 10mm x 1/4" , 10mm x 3/8" , 10mm x 1/2" , 12mm x 1/4" , 12mm x 3/4" , 12mm x 1/2" , 16mm x 1/2"
Brand	Phoenix
