Download Catalog| Item Code (Clear) | Item Code (Anti-Static) | Size (ID) (mm) | Size (OD) (mm) | Thickness (mm) | Working Pressure (bar) | Std. Length (m) | Price (per m) |
|---|---|---|---|---|---|---|---|
| TS25 | TSAT25 | 25.4 | 33.3 | 2.5 | 7 | 30 | On Request |
| TS30 | TSAT30 | 31.8 | 36.8 | 2.5 | 7 | 30 | |
| TS38 | TSAT38 | 38.0 | 43.3 | 2.7 | 6.5 | 30 | |
| TS40 | TSAT40 | 40.2 | 46.3 | 2.7 | 6.5 | 30 | |
| TS50 | TSAT50 | 50.8 | 57.8 | 3.5 | 5 | 30 | |
| TS60 | TSAT60 | 60.0 | 70.8 | 3.7 | 4 | 30 | |
| TS65 | TSAT65 | 63.5 | 72.0 | 4.2 | 4 | 30 | |
| TS75 | TSAT75 | 76.2 | 85.0 | 4.5 | 3.5 | 30 | |
| TS100 | TSAT100 | 101.2 | 112.2 | 5.5 | 3.5 | 30 |
PVC Suction Hose - Grey - Heavy Duty (GS)
₹1.00 – ₹2,150.00
PVC Steel Wire Braided Thunder Hose (THFT)
₹75.00 – ₹7,200.00

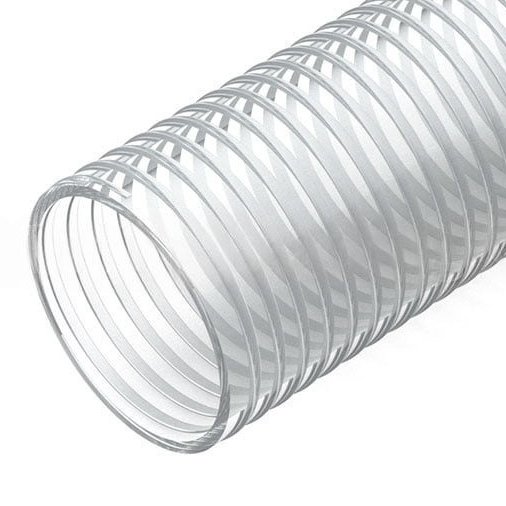

PVC Suction Hose – Transparent (TS)
₹1.00
Transparent Food Grade Suction Hose ensures hygienic, safe, and efficient transfer of liquids and food materials in processing and industrial applications.
PVC Suction Hose – Transparent (TS)
- “TS” Transparent Food Grade Suction Hose is designed for safe, hygienic, and efficient material transfer in food, beverage, and pharmaceutical industries.
- Made from non-toxic, food-grade PVC, this hose offers smooth internal surfaces for minimal friction and easy cleaning, while its transparent design allows visual monitoring of the product flow.
- Reinforced with rigid PVC spirals, it handles suction and discharge tasks with excellent flexibility and durability.
- An anti-static copper wire variant is available upon request for enhanced safety in static-sensitive environments.
- Food and Beverage Industry: Conveying liquids and food-related materials in food processing plants, bakeries, and breweries.
- Pharmaceutical Manufacturing: Material transfer in pharmaceutical environments where cleanliness and non-contamination are essential.
- Agricultural and Aquaculture Use: Transferring food-related products in agricultural settings, such as grain handling and aquaculture.
- Breweries and Distilleries: Safe handling of liquids in breweries, distilleries, and similar operations.
- Suction and Discharge of Food Items: Handling of various food items like beer, wine, milk, beverages, ice-cream, chocolates, and cereals.
- Food-Grade Material: Constructed from non-toxic, FDA-compliant PVC, ensuring safe use in food processing applications.
- Transparent Design: Allows for easy visual inspection and monitoring of material flow.
- Smooth Interior Surface: Minimizes friction and pressure loss, facilitating efficient transfer.
- Flexible and Durable: Designed for rigorous working conditions with resistance to kinking and bursting.
- Chemical and Corrosion Resistant: Suitable for handling a wide range of food-grade chemicals and materials.
- Static Dissipation: Anti-static variant available with copper conductive wire for managing static charges.
- No Aging: Maintains performance and appearance over time, with resistance to aging and external impacts.
| Type | TS |
| Hose Material | Soft Food-Grade PVC Compund |
| Reinforcement | Hard Spiral of Rigid PVC |
| Available Diameters | ⌀ 1 inch - ⌀ 4 inch |
| Thickness | 2.5-5.5 mm |
| Standard Length | 30 meters |
| Colour | Transparent |
| Working Pressure | 3.5-7 bar (Depending on diameter) |
| Burst Pressure | 11-23 bar (Depending on diameter) |
| Temperature Range | +10°C to +60°C |
Please select the item code (Qty – Meters)
Description
Additional information
| Item Code |
TS25 ,TS30 ,TS38 ,TS40 ,TS50 ,TS60 ,TS65 ,TS75 ,TS100 ,TSAT25 ,TSAT30 ,TSAT38 ,TSAT40 ,TSAT50 ,TSAT60 ,TSAT65 ,TSAT75 ,TSAT100 |
|---|
