Download Catalog| Item Code | Size (Tube ID) (mm) | Std. Length (m) | Wall Thickness | Weight (kg/m) | Pressure (bar) | Vacuum (bar) | Price (per m) |
|---|---|---|---|---|---|---|---|
| UVRH1 | 25 | 20 | 1.0 mm | - | 1.38 | 0.52 | 975 |
| UVRH114 | 32 | 20 | 1.0 mm | - | 1.38 | 0.52 | 1200 |
| UVRH112 | 40 | 20 | 1.0 mm | - | 1.19 | 0.43 | 1500 |
| UVRH2 | 51 | 20 | 1.0 mm | - | 1.14 | 0.33 | 1900 |
| UVRH55 | 55 | 20 | 1.0 mm | - | 1.09 | 0.29 | 2050 |
| UVRH212 | 63 | 20 | 1.0 mm | - | 1.09 | 0.29 | 2700 |
| UVRH3 | 76 | 20 | 1.0 mm | - | 1.00 | 0.22 | 2900 |
| UVRH4 | 102 | 15 | 1.0 mm | - | 0.67 | 0.22 | 3850 |
Anti-Static PU Duct Hose with PVC Wire (PUPVCAS)
Price range: ₹1,200.00 through ₹2,000.00
Silicon High-Temperature Clip Hose 180°C (HT180)
Price range: ₹450.00 through ₹2,550.00
UV Resistant PU Duct Hose with Copper Wire (UVRH)
Price range: ₹975.00 through ₹3,850.00
UV-resistant PU duct hose with copper wire for static-sensitive, high-exposure, and industrial ventilation applications.
UV Resistant PU Duct Hose with Copper Wire (UVRH)

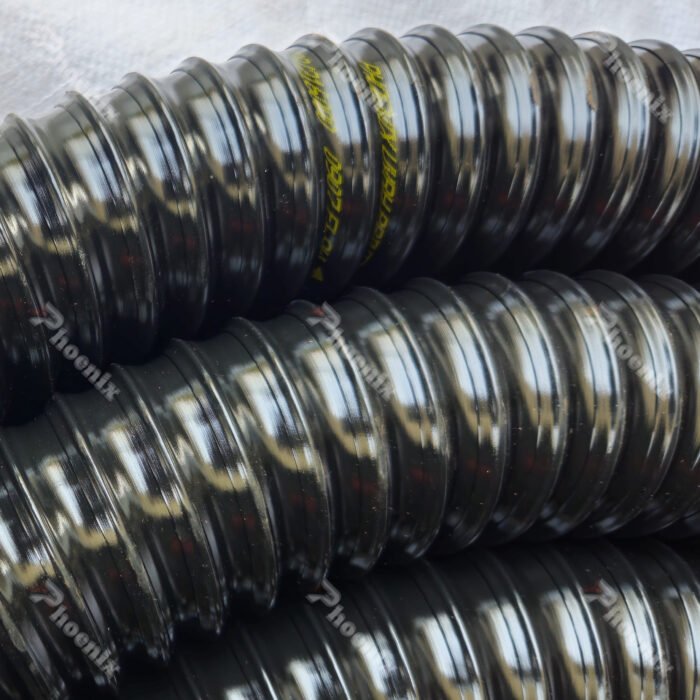

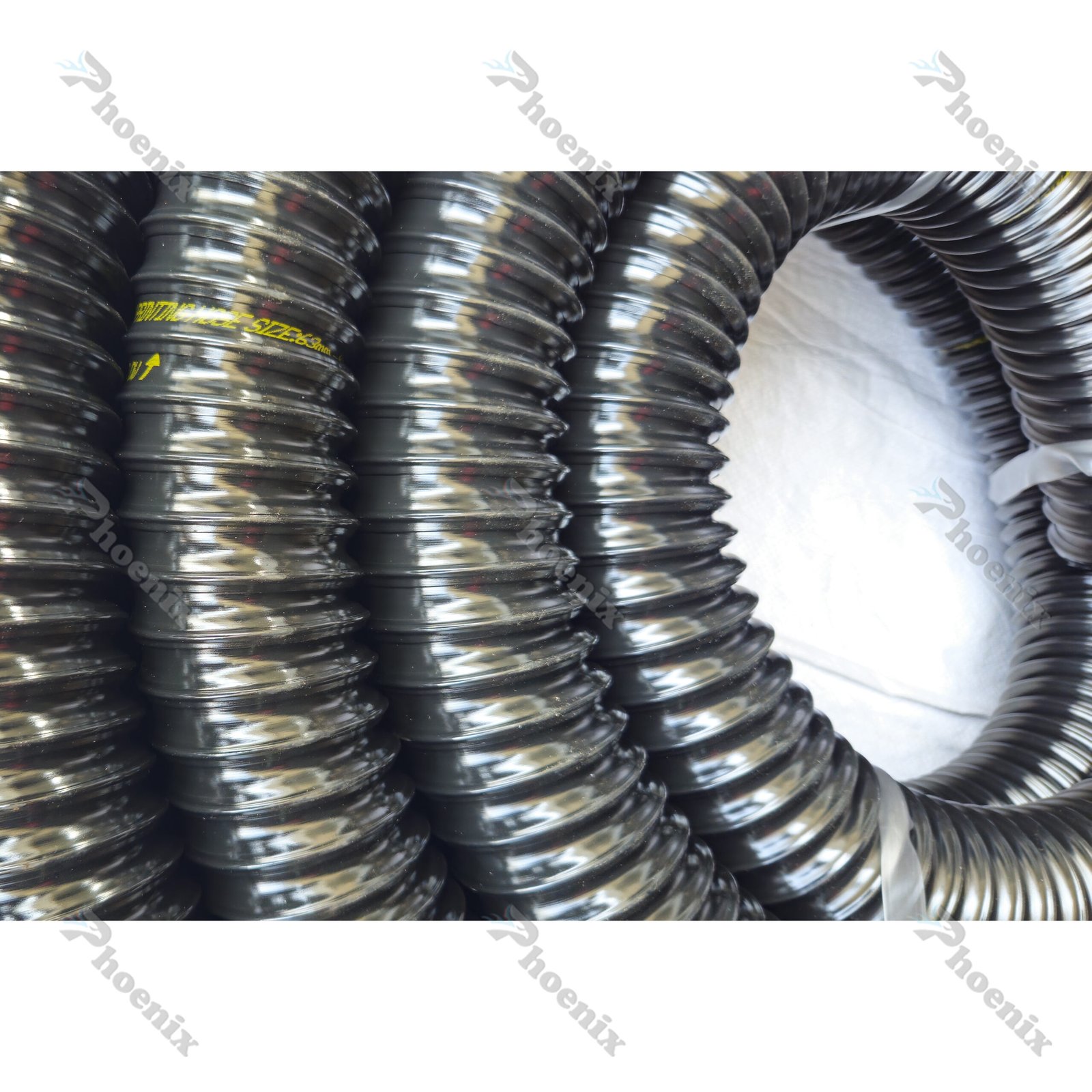

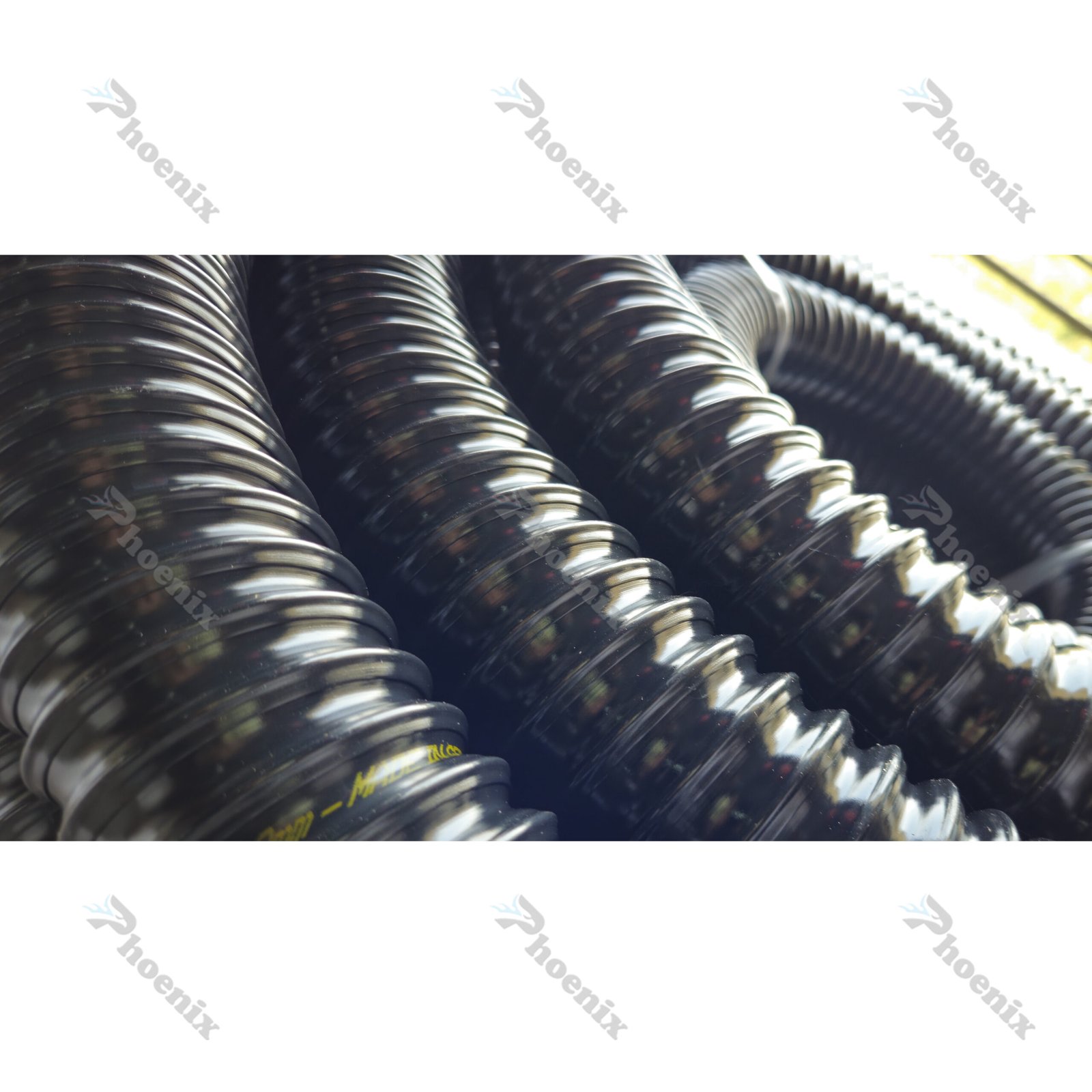

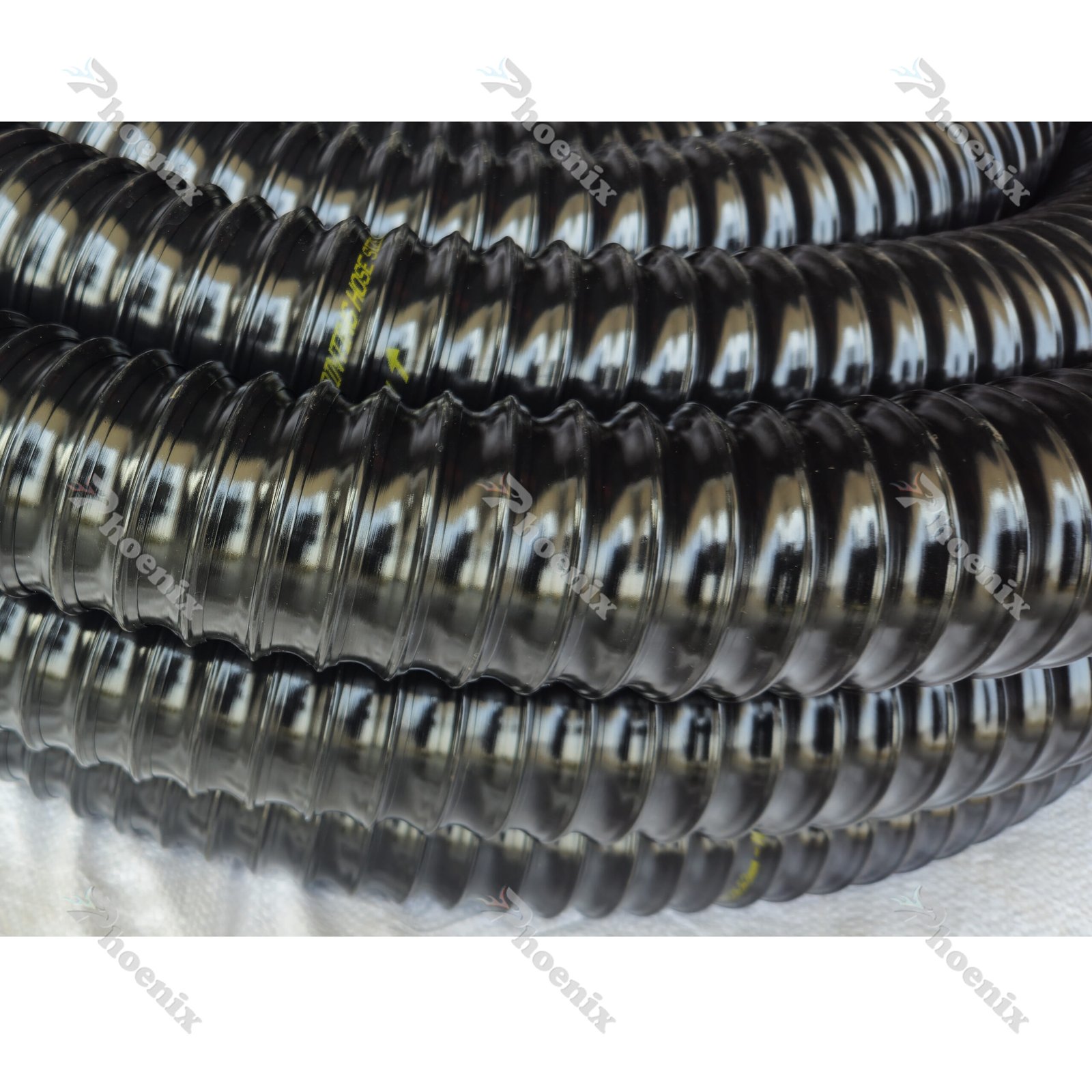

- "UVRH" Phoenix UV-Resistant Polyurethane Duct Hose is an industrial PU suction hose made from an electrically conductive, UV-resistant polymer with a wall thickness of 1 mm between spirals. It is embedded with a copper-plated spring steel spiral.
- It has good flexibility, a smooth interior, and excellent abrasion resistance.
- The hose is suitable for conveying air, dust, and solid materials.
- It is embedded with an anti-static wire for grounding, providing safety in electrically sensitive environments.
- "UVRH" is resistant to hydrolysis, microbes, UV, and ozone, ensuring durability in various conditions.
- Industrial Ventilation & Dust Collection: Ideal for use in woodworking shops, metalworking, and other manufacturing processes that handle materials such as wood chips, sawdust, and fine dust.
- Material Handling: Suitable for conveying granular materials, powders, and abrasive substances in industries like agriculture (e.g., grain transfer) and pharmaceuticals (e.g., powder handling).
- Fume and Smoke Extraction: This heavy-duty PU exhaust hose efficiently extracts fumes and smoke in welding shops, metalworking facilities, and chemical processing plants.
- HVAC Systems: Can be used for air circulation and dust control in heating, ventilation, and air conditioning systems.
- CNC Machinery: Perfect for the extraction of dust and debris generated during machining processes, ensuring clean and safe operation
- Food & Beverage Industry: Suitable for conveying dry food products and other food-related materials in compliance with food-grade standards.
- Static Dissipation: This anti-static ventilation ducting ensures safe conveyance in areas like grain elevators, chemical plants, and other static-prone environments, reducing the risk of static discharge.
- Danger Zones: Used in explosion-protected areas and as a suction hose for coarse-grained media with high flow rates.
- Very Smooth Bore: Ensures efficient flow and reduces pressure drop.
- Durability: High resistance to abrasion, punctures, and wear.
- Resistant to Oil & Petrol: Suitable for applications involving oil and petrol.
- Non-Toxic: Safe for use in food, beverage, and pharmaceutical industries.
- Resistant to Hydrolysis and Microbes: Maintains integrity in humid/wet conditions and resists microbial growth.
- Static Dissipation: Reduces the risk of static discharge, enhancing safety.
- Temperature Resistance: Performs well across a range of temperatures.
- UV and Ozone Resistance: This weatherproof industrial duct hose offers long-term durability in outdoor and high-exposure environments.
| Type | UVRH |
| Hose Material | TPU ether - 100% UV resistant |
| Reinforcement | Copper Plated Spring Steel Wire |
| Wall Thickness | 1.0 mm |
| Available Diameters | ⌀ 1 inch - ⌀ 4 inch |
| Standard Length | 15 - 20 meters |
| Colour | Black |
| Temperature Range | -30°C to +80°C |
| Operating Pressure | 0.67 - 1.38 bar (depending on diameter) |
| Compliances | Hydrolysis and microbe resistant |
| Compliances | Complies with TRGS 727 and ATEX 2014/34 EU - Earthing at both ends of the spiral for non-flammable dusts and solids in Zone 22. Gases and liquids with low conductivity of electro-static charge in Zone 2 |
