Download Catalog| Item Code | Size (Min) - mm | Size (Max) - mm | Std. Packing | Price (per pc) |
|---|---|---|---|---|
| WSS00M | 12 | 17 | 100 | 62 |
| WSS00 | 15 | 20 | 100 | 62 |
| WSS0 | 17 | 22 | 100 | 62 |
| WSSS25A | 20 | 25 | 100 | 80 |
| WSS0X | 22 | 28 | 100 | 80 |
| WSS1A | 25 | 30 | 100 | 80 |
| WSS35A | 30 | 35 | 100 | 80 |
| WSS1 | 32 | 38 | 100 | 80 |
| WSS1X | 35 | 41 | 100 | 108 |
| WSS45A | 35 | 45 | 100 | 108 |
| WSS2A | 42 | 50 | 50 | 108 |
| WSS2 | 48 | 55 | 50 | 115 |
| WSS2X | 52 | 60 | 50 | 115 |
| WSS3 | 60 | 70 | 50 | 115 |
| WSS75A | 65 | 75 | 50 | 115 |
| WSS3X | 70 | 80 | 50 | 120 |
| WSS4 | 80 | 90 | 50 | 120 |
| WSS4X | 90 | 100 | 50 | 125 |
| WSS110A | 100 | 110 | 50 | 130 |
| WSS5 | 110 | 120 | 50 | 135 |
| WSS130A | 120 | 130 | 50 | 140 |
| WSS6 | 130 | 140 | 50 | 140 |
| WSS6X | 140 | 150 | 50 | 150 |
| WSS160A | 150 | 160 | 50 | 150 |
Back to products
Knob Type Clips (KC)
Price range: ₹320.00 through ₹350.00
Wire Clips (WSS)
Price range: ₹62.00 through ₹150.00
Wire Clips (WSS)

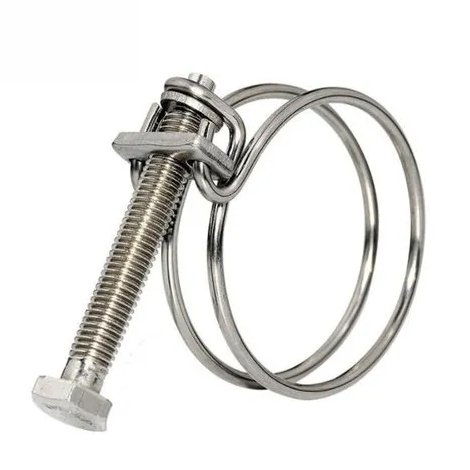

Phoenix Wire Clips (WSS Series) are double-wire hose clamps made from stainless steel, offering a flexible and economical solution for low-pressure applications.
The springy wire construction allows for secure tightening while adapting to slight hose diameter changes.
These are especially useful for soft or thin-walled hoses (like PU Duct Hoses) where traditional flat-band clamps may cause damage.
These clamps are suitable for light duty, flexible hose clamping like –
- Garden and PVC Hoses
- Low-Pressure Fluid Lines
- Laboratory and Aquarium Setups
- Agricultural Spraying Systems
- Ventilation Systems
| Parameter | Specification |
| Clamp Type | Double Wire Hose Clip |
| Brand | Phoenix |
| Material | Stainless Steel (SS) |
| Wire Diameter | ~2-3.5mm |
| Screw Type | Slotted Hex Head Screw (MS) |
| Reusability | Reusable |
| Surface Finish | Bright Polished |
| Corrosion Resistance | Good |
| Packaging | Varies by Size |
Please select the item size (Qty – Pcs)
Description
Additional information
| Item |
WSS00M (12 – 17 mm) ,WSS00 (15 – 20 mm) ,WSS0 (17 – 22 mm) ,WSSS25A (20 – 25 mm) ,WSS0X (22 – 28 mm) ,WSS1A (25 – 30 mm) ,WSS35A (30 – 35 mm) ,WSS1 (32 – 38 mm) ,WSS1X (35 – 41 mm) ,WSS45A (35 – 45 mm) ,WSS2A (42 – 50 mm) ,WSS2 (48 – 55 mm) ,WSS2X (52 – 60 mm) ,WSS3 (60 – 70 mm) ,WSS75A (65 – 75 mm) ,WSS3X (70 – 80 mm) ,WSS4 (80 – 90 mm) ,WSS4X (90 – 100 mm) ,WSS110A (100 – 110 mm) ,WSS5 (110 – 120 mm) ,WSS130A (120 – 130 mm) ,WSS6 (130 – 140 mm) ,WSS6X (140 – 150 mm) ,WSS160A (150 – 160 mm) |
|---|---|
| Brand |
Phoenix |
