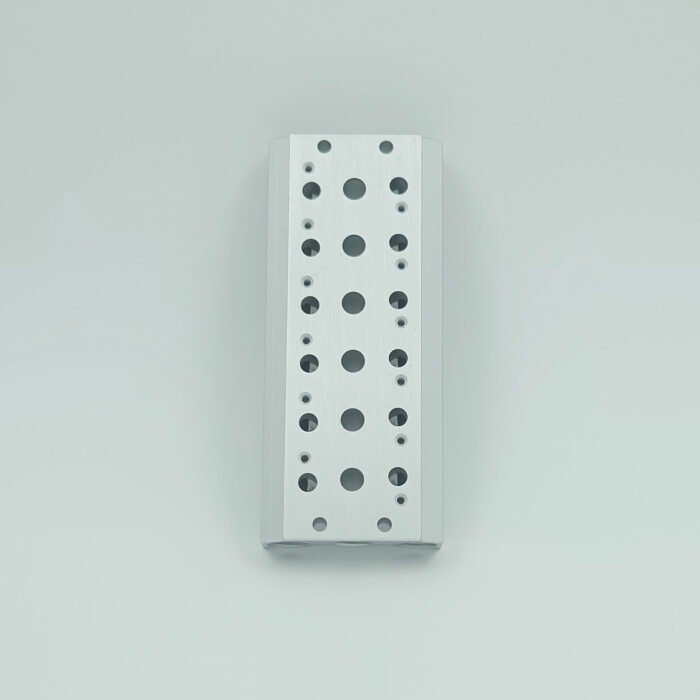

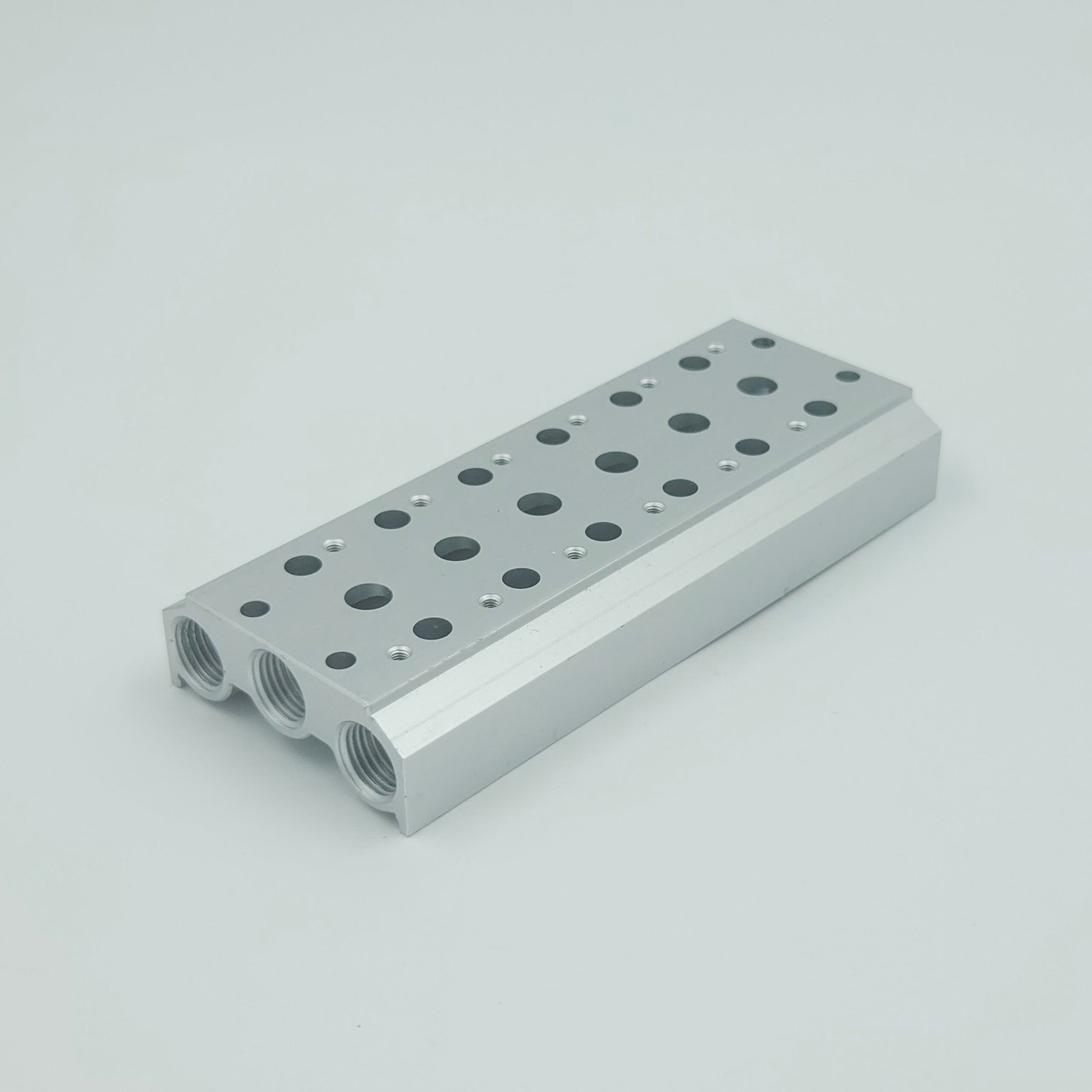

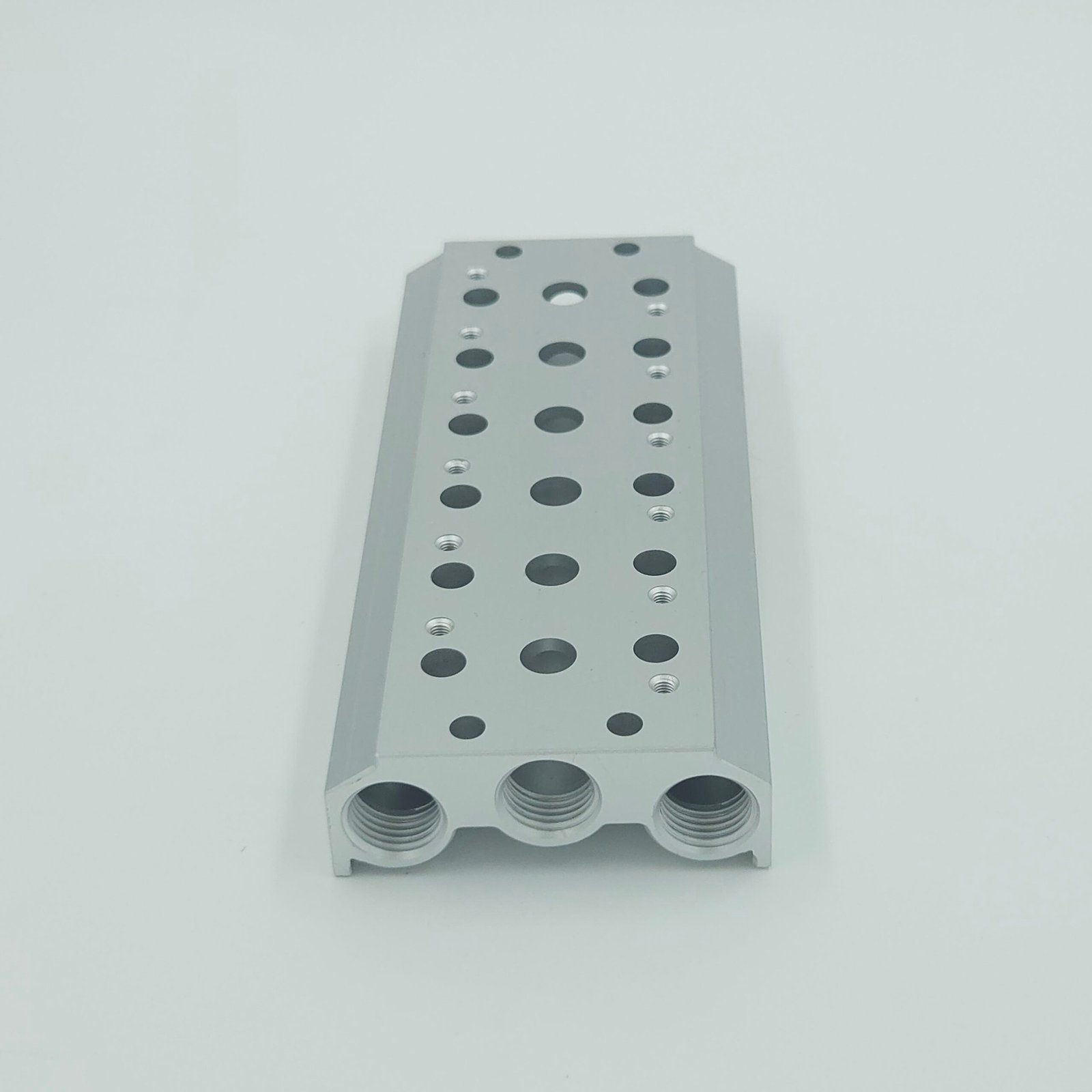

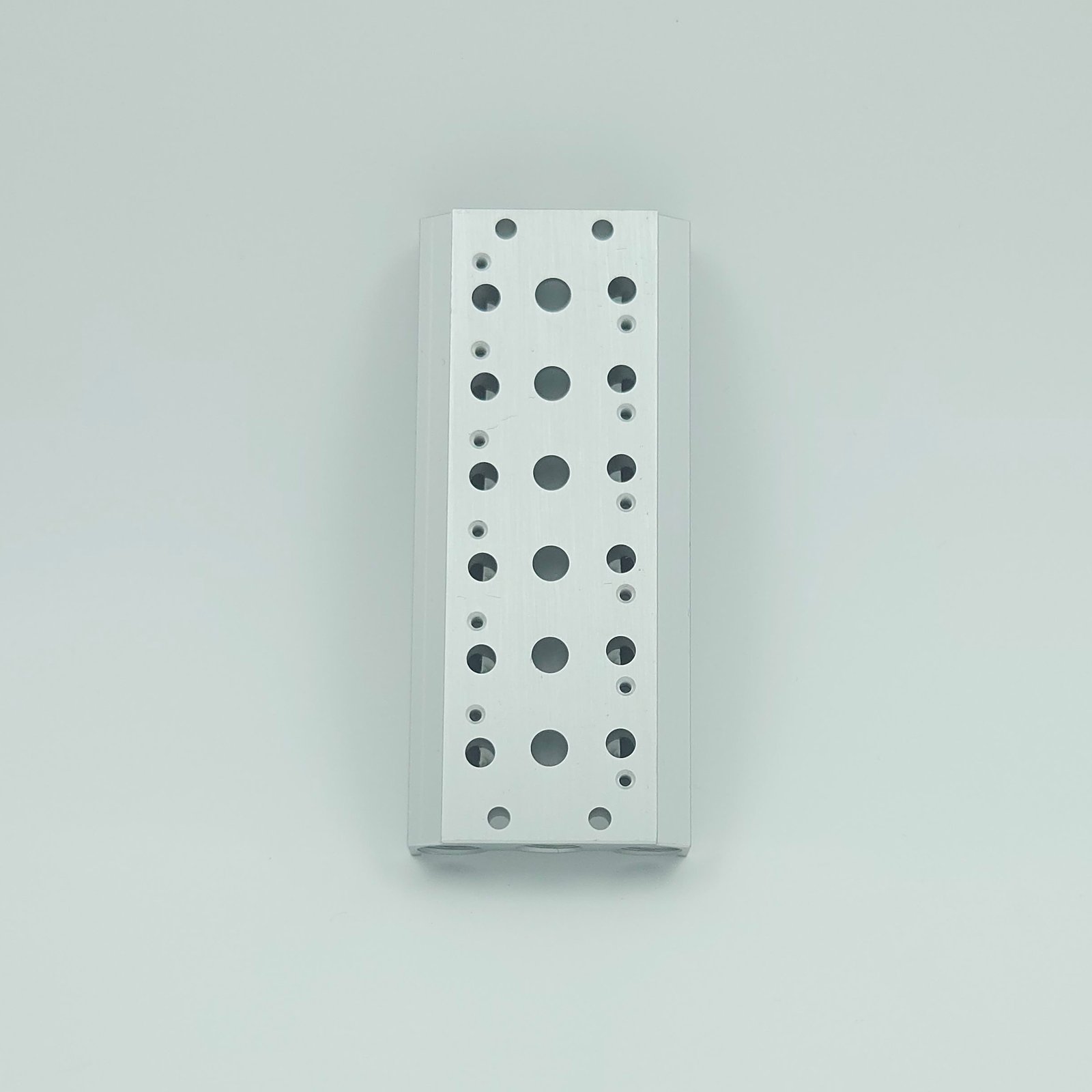

M Series Manifold for Solenoid Valves and Accessories

Phoenix Manifold for 3V, 4V, 4A and VGS Series Solenoid Valves

Description

Phoenix Manifolds for 3V, 4V, 4A, and VGS Series Solenoid Valves are designed to facilitate efficient air distribution and streamline connections in pneumatic systems. These manifolds enhance the performance of solenoid valves while ensuring reliable flow management.

Applications

These manifolds are used to connect multiple solenoid valves in pneumatic circuits, optimize air distribution for automation systems, simplify installation and maintenance of fluid control systems, enhance system organization, and improve overall operational efficiency.

Physical and Technical Specifications

Type	M Series Manifold for Solenoid Valves
Compatibility (Valves)	2V, 3V, 4V, 3A, 4A, PV Series, VGS Series
Material of Construction	Aluminium
Working Medium	Air
Working Pressure	0-10 bar
Supply Ports	1/4"
Exhaust Ports	1/4"

Download Catalog

Please select the item size (Qty – Pcs)

Description

M Series Manifold


	For 1/8" Valve		For 1/4" Valve		For 3/8" Valve		For 1/2" Valve
No. of Stations	Item Code	Price (per pc)	Item Code	Price (per pc)	Item Code	Price (per pc)	Item Code	Price (per pc)
2	100M-2F	280	200M-2F	280	300M-2F	575	400M-2F	1085
3	100M-3F	420	200M-3F	420	300M-3F	860	400M-3F	1630
4	100M-4F	560	200M-4F	560	300M-4F	1150	400M-4F	2170
5	100M-5F	700	200M-5F	700	300M-5F	1440	400M-5F	2720
6	100M-6F	840	200M-6F	840	300M-6F	1720	400M-6F	3260
8	100M-8F	1120	200M-8F	1120	300M-8F	2295	400M-8F	4340
10	100M-10F	1395	200M-10F	1395	300M-10F	2870	400M-10F	5425

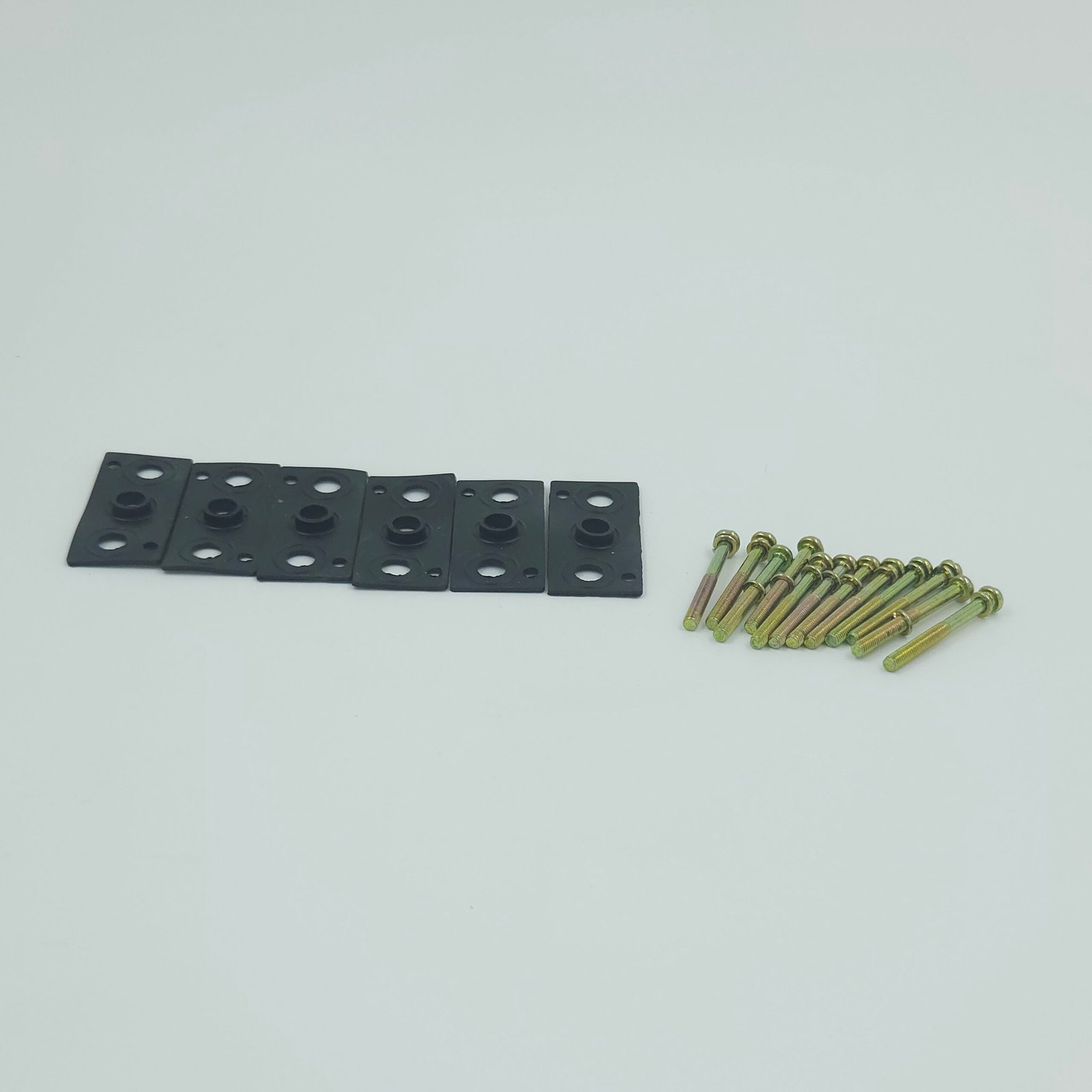

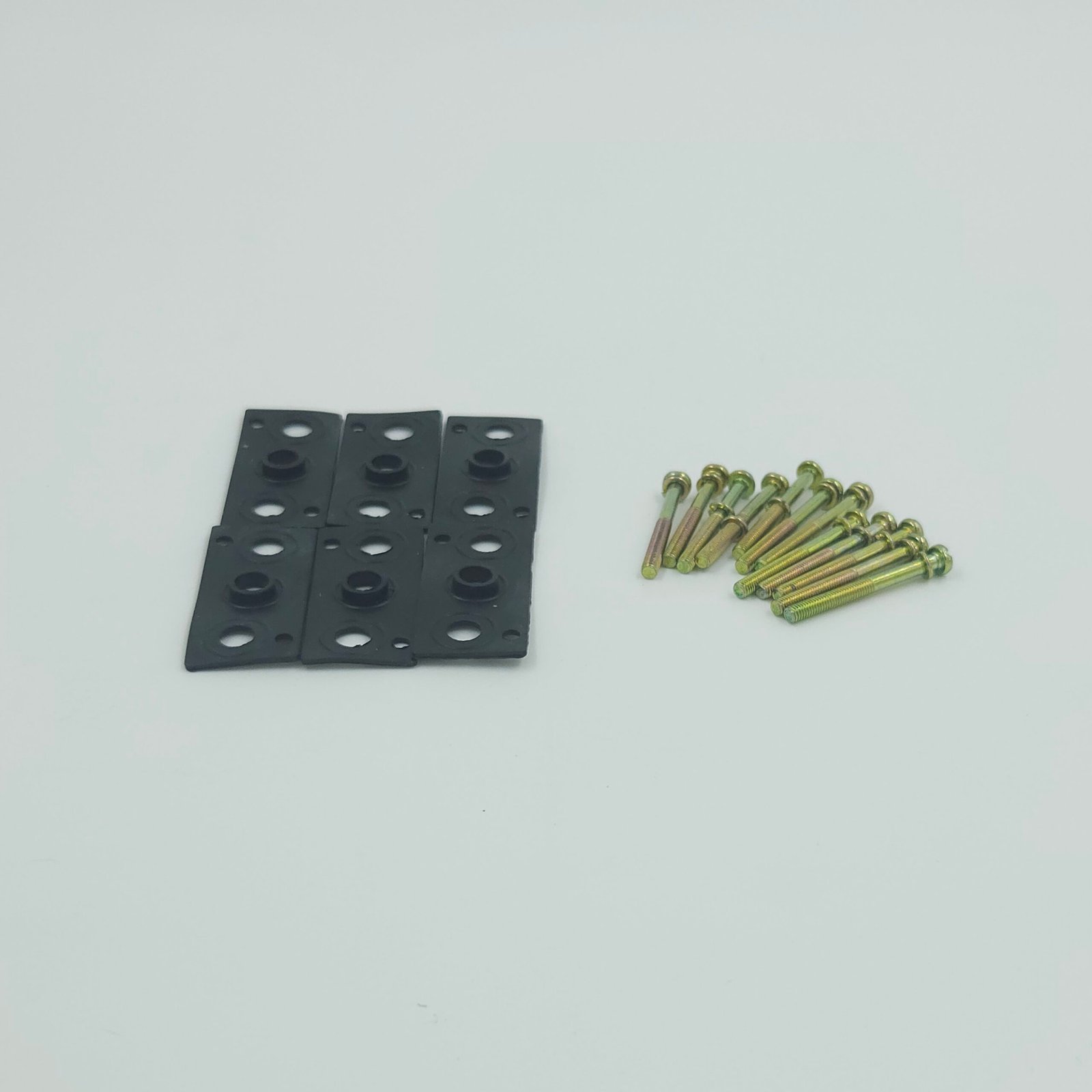

Spare Seals and Screw for Manifold

Item Code	Price (per pc)
SG100	140
SG200	140
SG300	280
SG400	540

Blank Plate for Manifold

Item Code	Price (per pc)
BP-100M	140
BP-200M	140
BP-300M	280
BP-400M	540

Additional information

Brand	Phoenix
Item	Manifold , Spare Seals & Screw , Blank Plate
Solenoid Valve Size	1/8" , 1/4" , 3/8" , 1/2"
No. of Stations	2 , 3 , 4 , 5 , 6 , 8 , 10 , N/A
