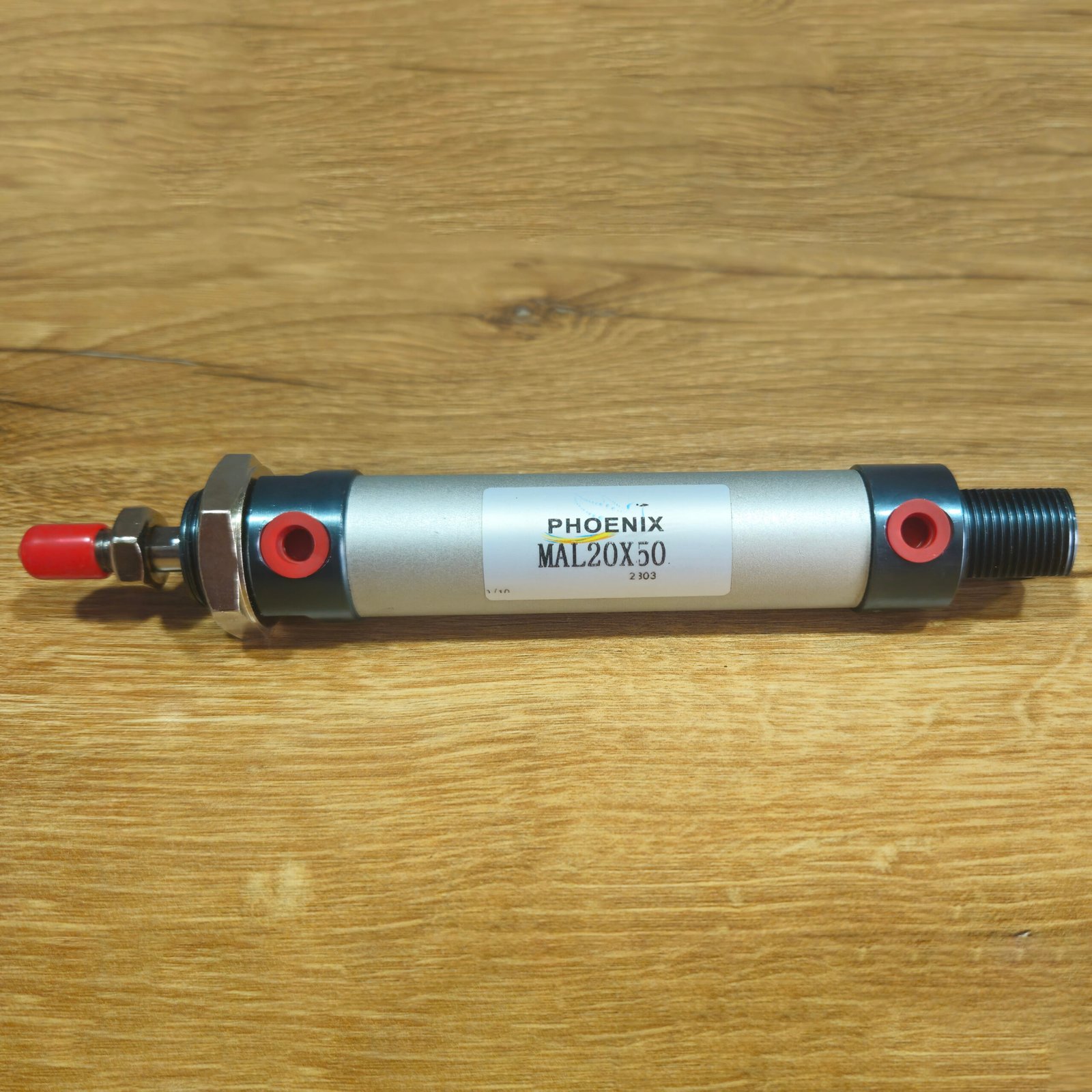

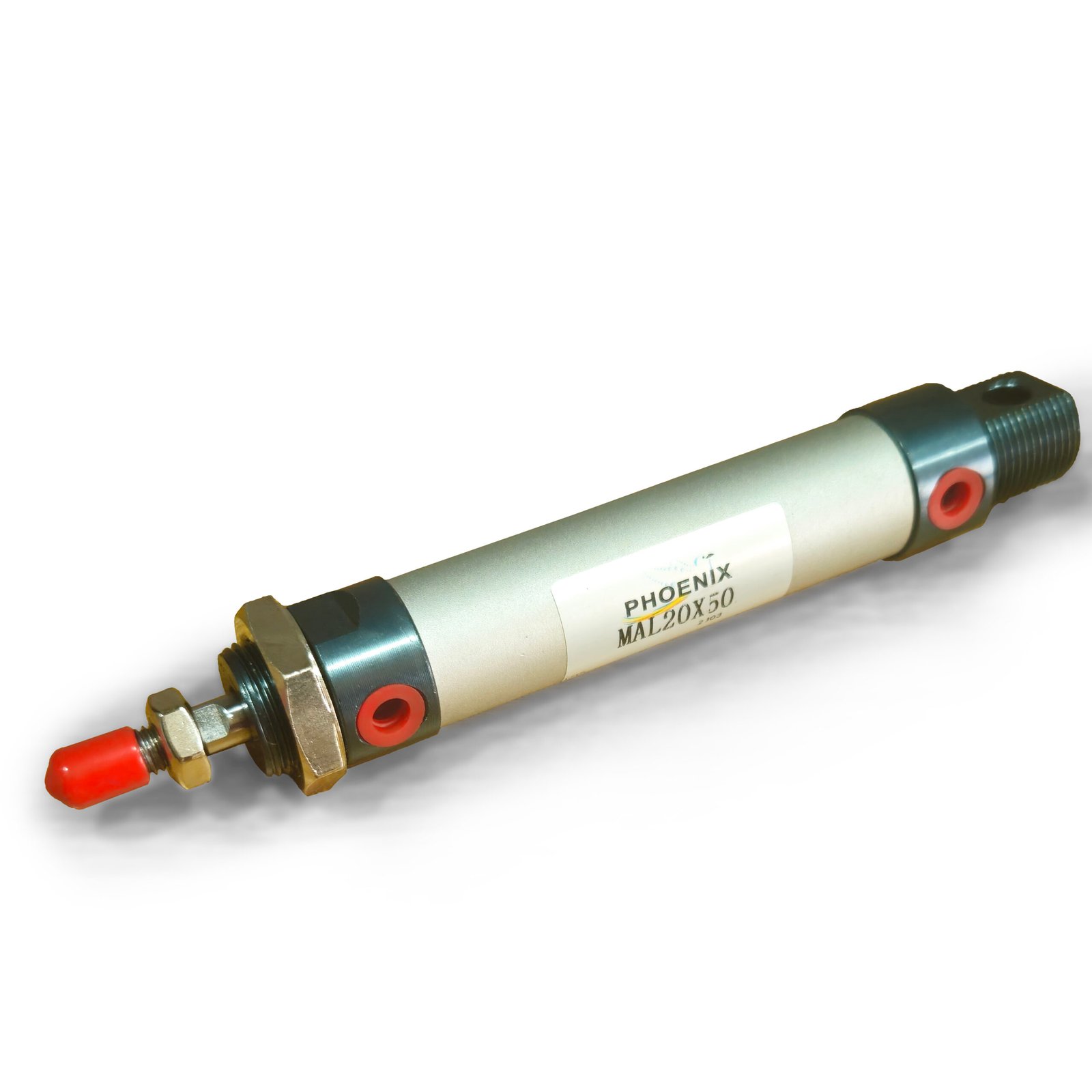

Round-Body Cylinder (MAL Series)

Phoenix – Round-Body Cylinder (MAL Series)

Descriptions

Phoenix Round-Body Cylinders "MAL Series" are designed for versatility and reliable performance in pneumatic applications. Their round-body design allows for smooth operation and easy installation, making them suitable for various industrial tasks.

Applications

These cylinders are used for linear motion in diverse applications, provide consistent force generation in automation systems, facilitate effective movement control in machinery, and support reliable performance in pneumatic setups.

Physical and Technical Specifications

Type	MAL Cylinder
Action Type	Double Acting
Magnetic Type	Non-Magnetic
Working Medium	Clean, Filtered Air
Operating Pressure	1.5-10 bar (0.15-1.0 MPa)
Proof Pressure	15.0 bar (1.5 MPa)
Working Temperature	-20-70°C
Speed Range	30-800 mm/sec
Cushion Type	Bumper
Port Size	M5 x 0.8 to R1/4

Download Catalog

Please select the item size (Qty – Pcs)

Description


Stroke (mm)	Diameter (mm)
	16		20		25		32
	Port Size - M5x0.8		Port Size - 1/8"		Port Size - 1/8"		Port Size - 1/8"
	Item Code	Price (per pc)	Item Code	Price (per pc)	Item Code	Price (per pc)	Item Code	Price (per pc)
25	MAL1625	560	MAL2025	670	MAL2525	820	MAL3225	960
40	MAL1640	560	MAL2040	710	MAL2540	850	MAL3240	1000
50	MAL1650	560	MAL2050	710	MAL2550	850	MAL3250	1000
80	MAL1680	590	MAL2080	740	MAL2580	890	MAL3280	1050
100	MAL16100	630	MAL20100	820	MAL25100	920	MAL32100	1070
125	MAL16125	670	MAL20125	850	MAL25125	960	MAL32125	1150
150	MAL16150	710	MAL20150	890	MAL25150	1000	MAL32150	1180
200	MAL16200	780	MAL20200	960	MAL25200	1070	MAL32200	1290
250	MAL16250	890	MAL20250	1040	MAL25250	1150	MAL32250	1370
300	MAL16300	960	MAL20300	1110	MAL25300	1260	MAL32300	1520

Additional information

Bore Size (mm)	16 , 20 , 25 , 32
Stroke Length (mm)	25 , 40 , 50 , 80 , 100 , 125 , 150 , 200 , 250 , 300
Brand	Phoenix
